How to replace Dacia Sandero 2013-2019 Continental UCH with JCI using OBDSTAR X300 Classic G3. It is similar to older Renault/Dacia cars.
NOTE: You will need G3. X300 DP Plus does not have ECU advanced function.
This may not work on every Renault/Dacia. Always check G3 coverage and function before operation.
Read original UCH information.

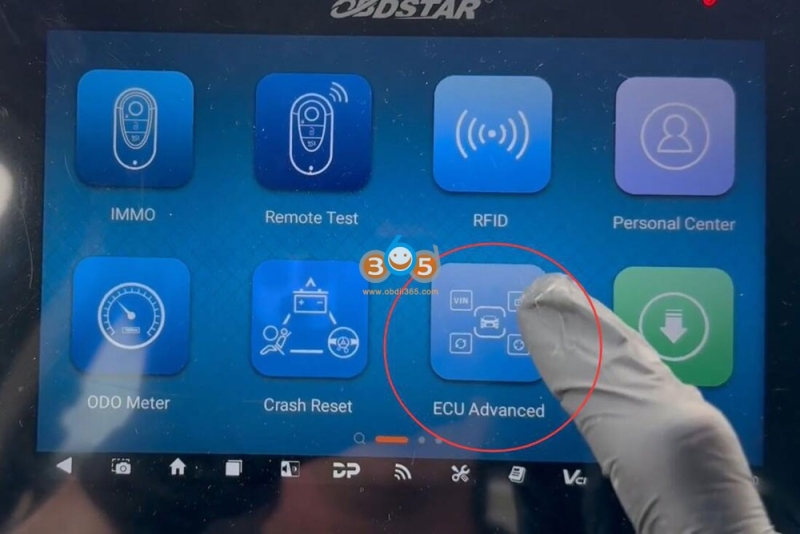

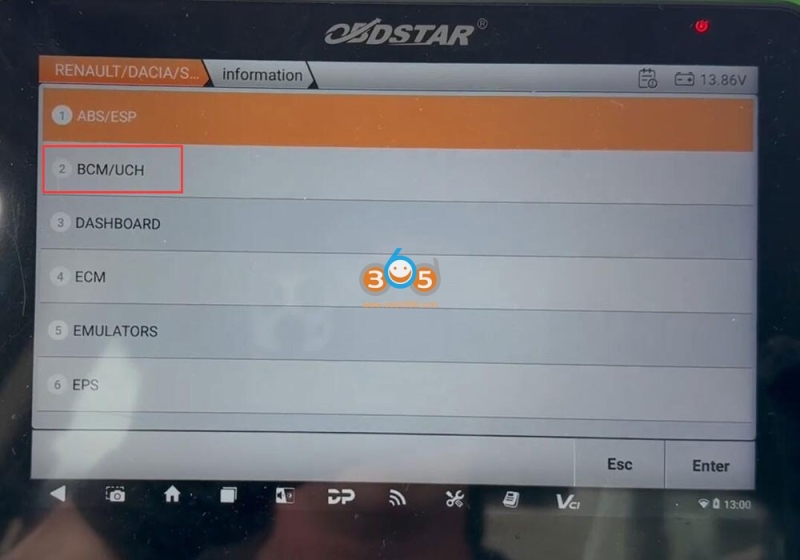

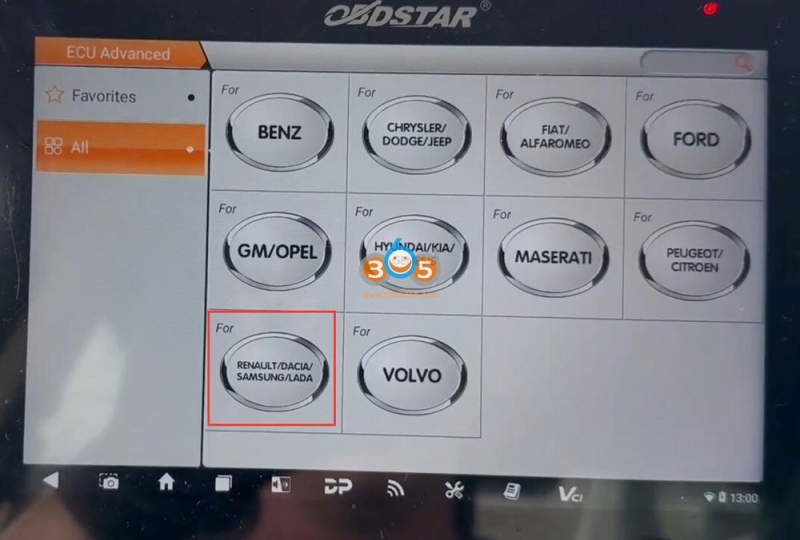

Go to ECU Advanced- Renault/Dacia->BCM/UCH

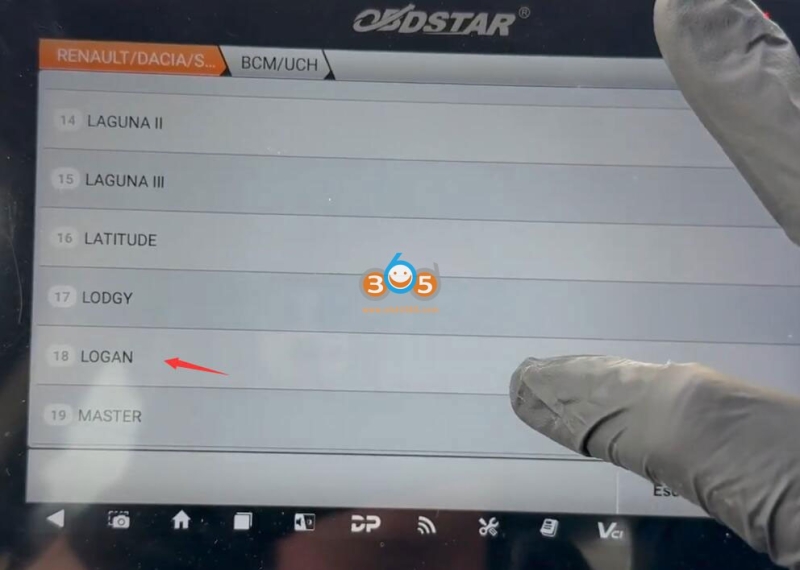

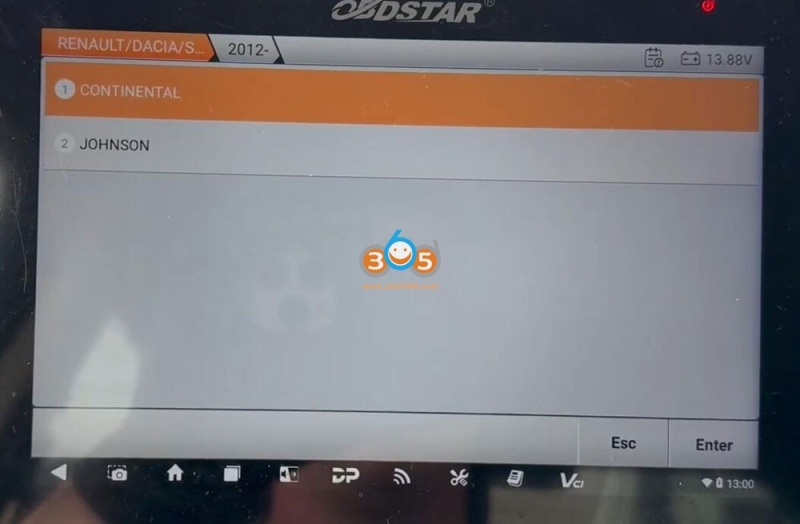

Drop down list and find Logan-> 2012 onwards-> Continental

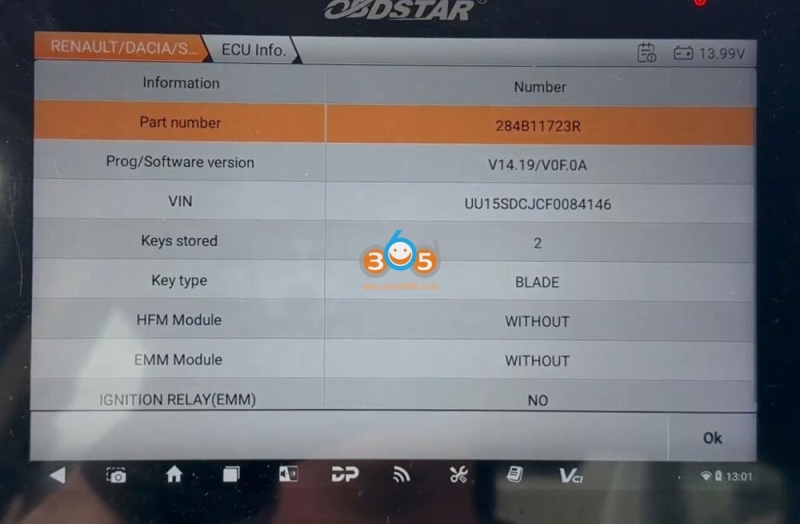

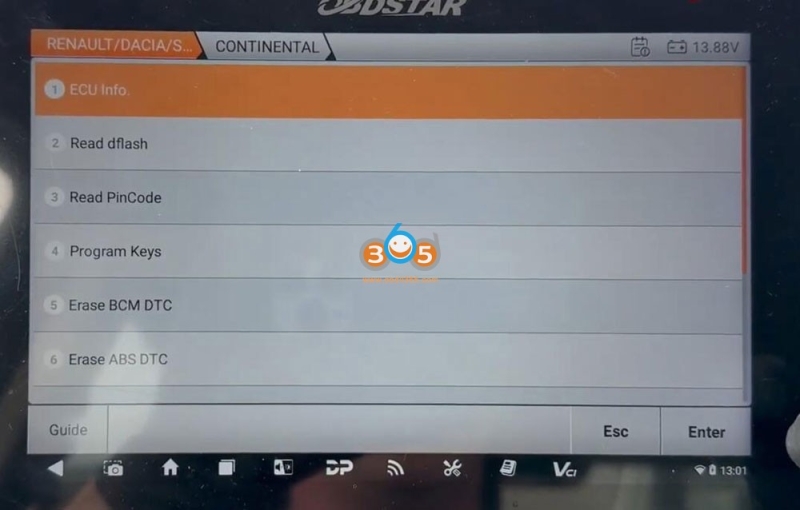

Read ECU info.
OBDSTAR will read part number, VIN, keys, etc info.
You can read Dflash and extract a PIN code from the BCM / UCH memory.
If failed to read pin code under ECU Advanced function, try to extract pin code by method 2 here.
Autel tools are used to be able to change UCH VIN for these Renault. But it no longer reads pin code.

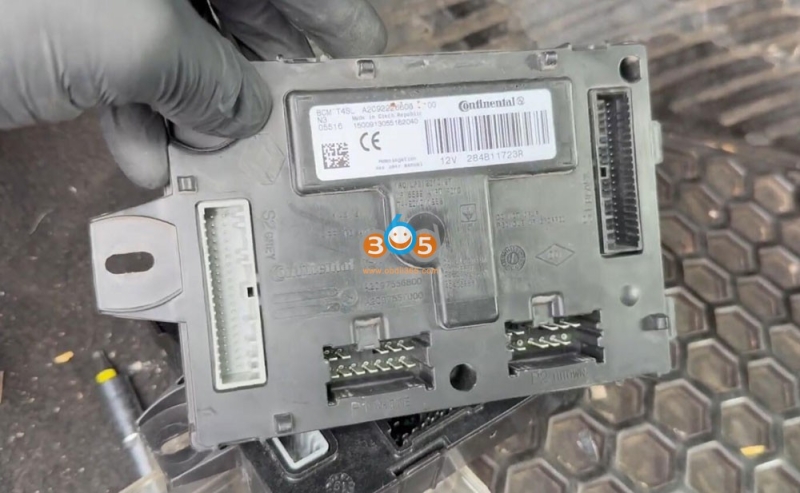

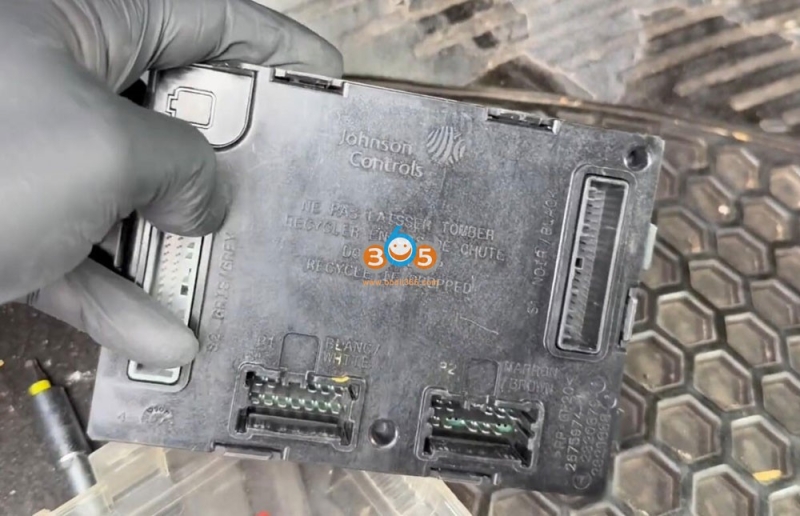

One you get the pin code. Replace the Continental UCH with the JCI one.
Go to ECU Advanced- Renault/Dacia->BCM/UCH

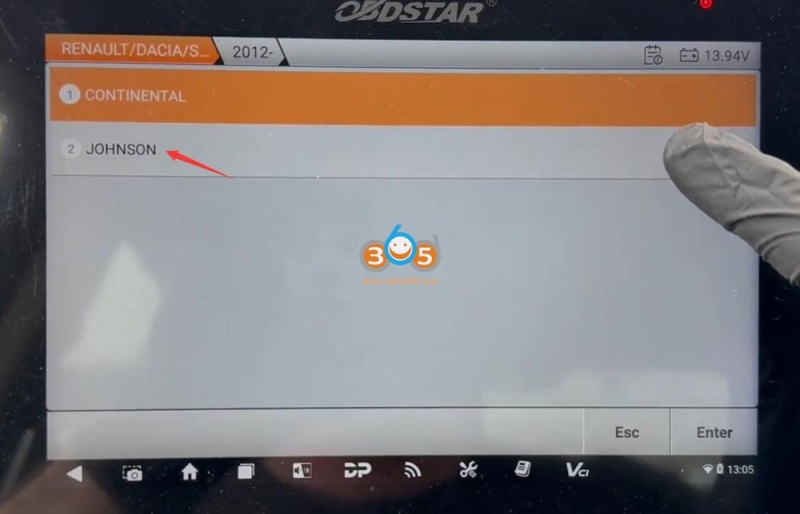

Drop down list and find Logan-> 2012 onwards-> Johnson

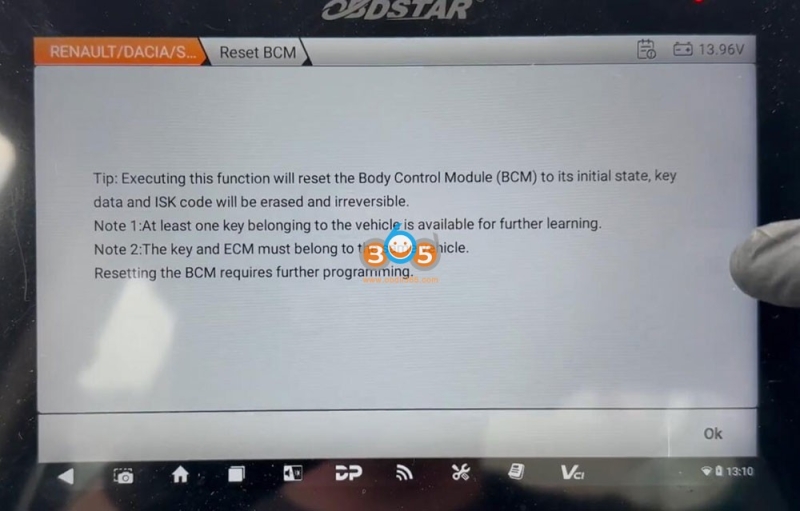

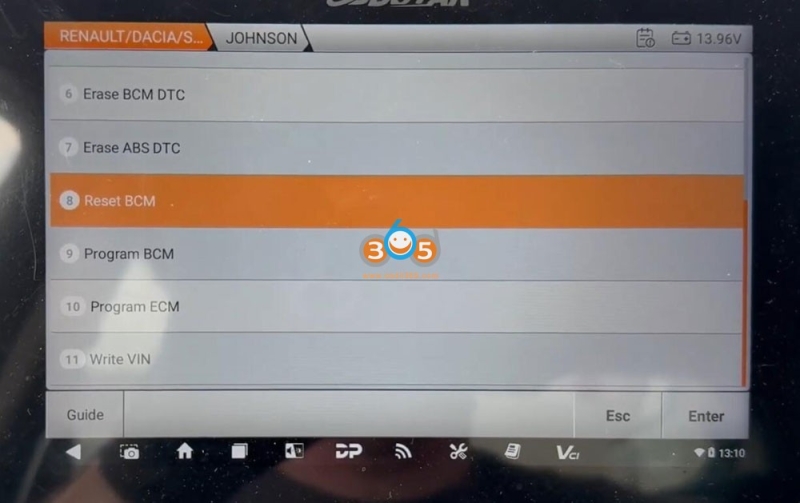

Reset BCM.

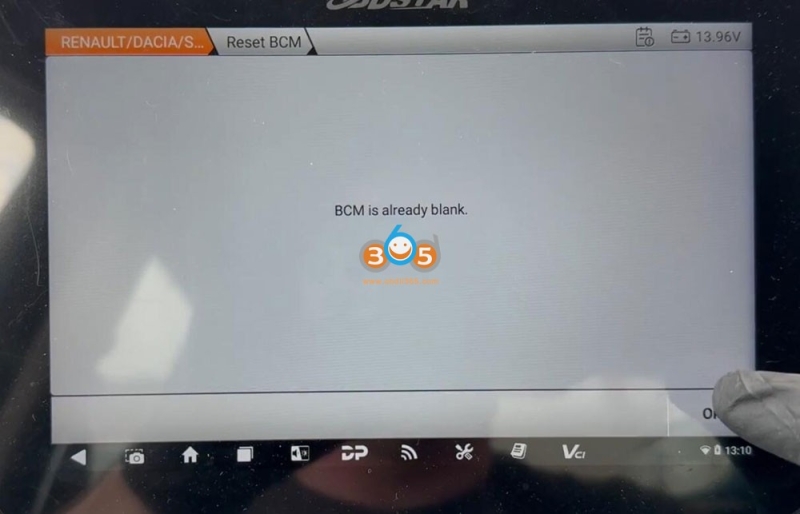

BCM is blank.
Select Program BCM.

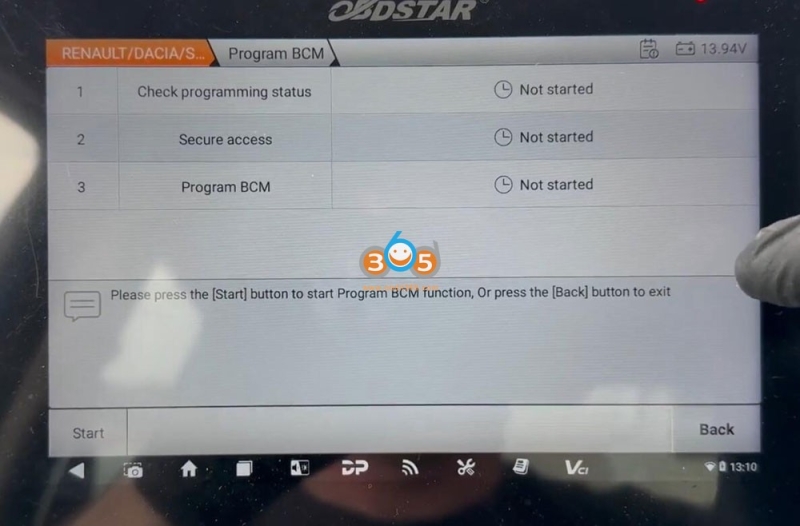

Follow 3 steps to program BCM.
Press Start.

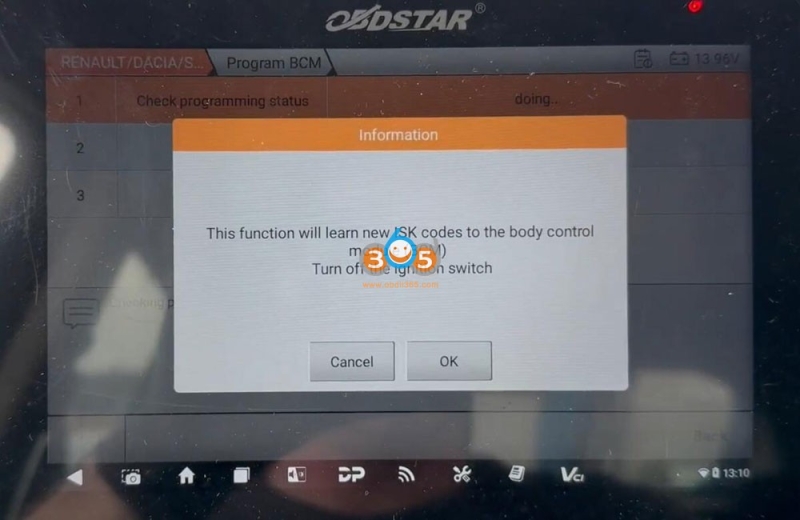

The function will learn new ISK codes to the body control module (BCM).
Turn off the ignition switch.

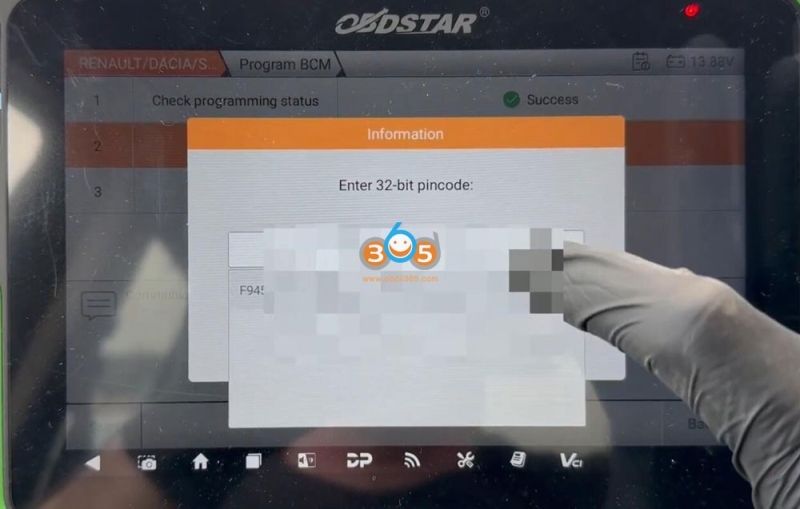

Enter 32-digit pin code.
Switch ignition off.
Insert the key and turn on the ignition switch.
Turn on the ignition switch twice to save key information.

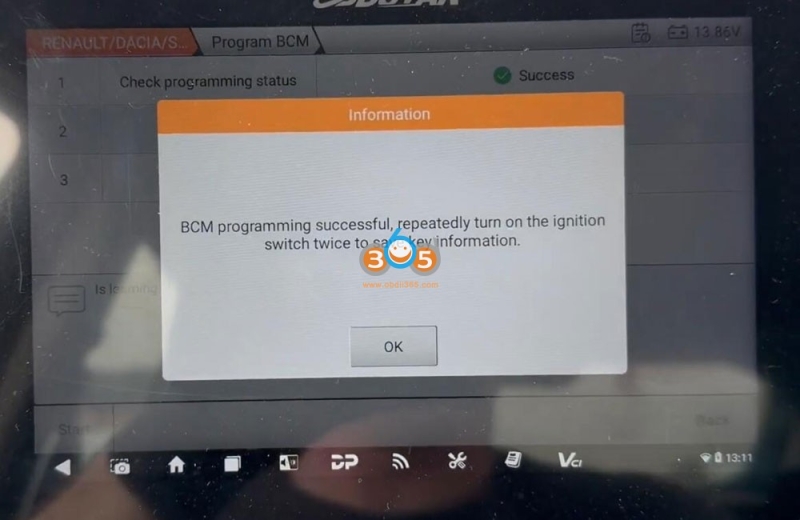

BCM programming successfully.
Turn on the ignition switch twice to save key information.

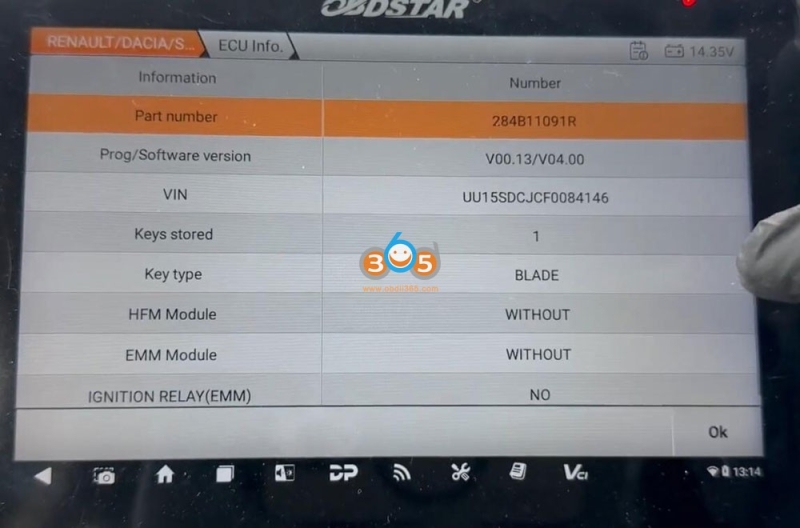

Read ECU info. There is only 1 key in the system.
We need to add the 2nd key.

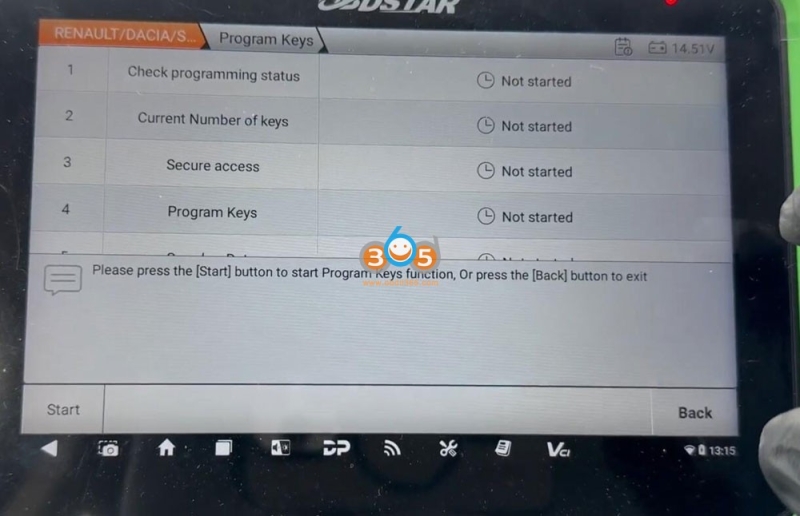

Select Program Keys function.
Follow 5 steps to program 2nd key.
Switch ignition off.
Enter 32-digit pin code
Turn off the ignition and remove the key.Press OK to learn next key.
Insert the key and turn on ignition.
It reads key ID.

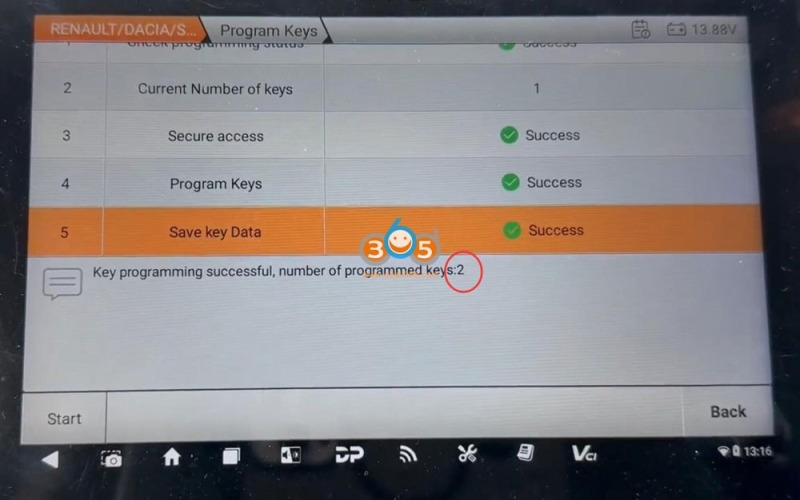

Learn key success.
Switch ignition off and remove key.

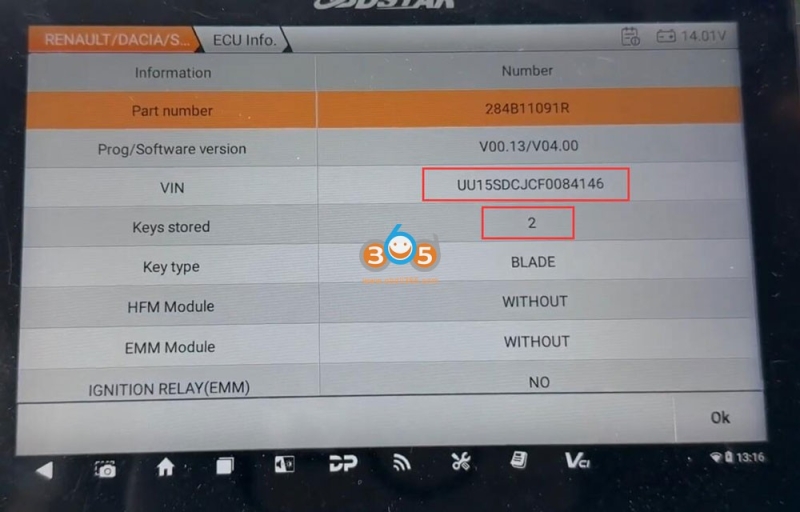

Read ECU info again.
You can see 2 keys programmed and the VIN is the same as original BCM/UCH.
Test keys.
Done.
