OBDSTAR Benz FBS3 Kit Car List

OBDSTAR launches the Mercedes Benz FBS4 kit for X300 Classic G3 to program Benz FBS3 keys.

OBDSTAR Benz FBS3 Kit Functions

1. Read PinCode

  • Calculate PinCode (By Work Key)
  • Calculate PinCode (AKL)
  • Read BE Key PinCode

2. ECU Reset Virgin/Program

  • EIS
  • ECM
  • TCM
  • ISM
  • ELV

3. Program Keys

  • Read Key’s Data
  • Generate Key File
  • Erase BE Key
  • Write BE Key

OBDSTAR Benz FBS3 Kit Car List

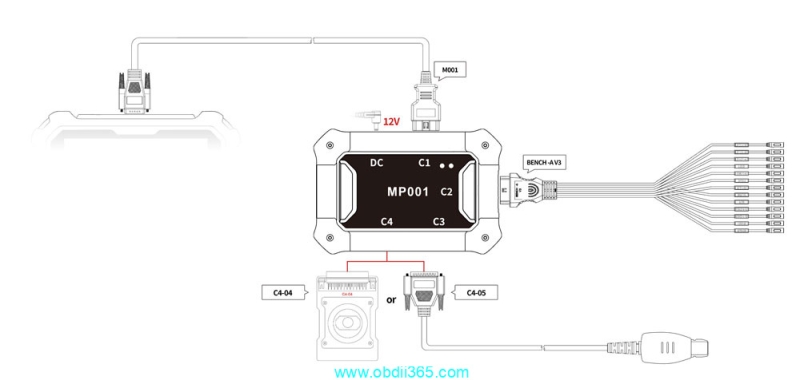

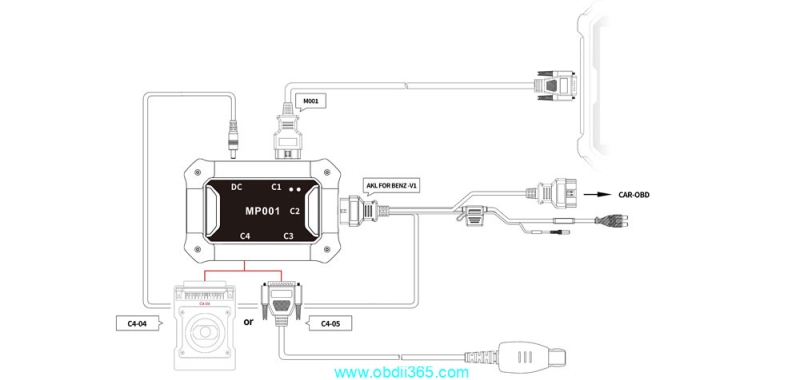

Must used with OBDSTAR X300 Classic G3 in conjunction with MP001 programmer (MP001 comes in default with G3). It does not compatible with X300 DP Plus, X300 Pro4.

OBDSTAR Benz FBS3 Kit Car List

OBDSTAR Benz FBS3 Kit Car List

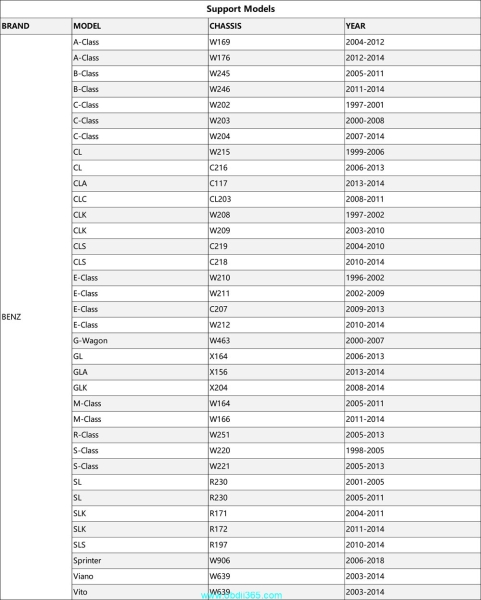

Here comes the vehicle coverage of the OBDSTAR Benz FBS3 kit.

Current software version V40.54.

Key Type Model Year Chassis PinCode Read Add Keys All Keys Lost Other Function
FBS3 A-CLASS 2004-2012 W169 1. Read Key Info
2. Generate BE Key File
3. Renew BE Key Data
4. Write BE Key Data
5. Read EIS IMMO Data
6. Load EIS IMMO Data
7. Renew EIS IMMO Data
8. Write VIN Code
9. Write EIS IMMO Data
10. Clean TP
11. Disable Key
12. Enable Key
13. Examine EIS State
14. Repair Jump Code
15. Examine Car Key
16. Activate EIS Module
17. ECM Renew/Read IMMO Data:
CR3.xx,
CR4.xx,CR5.xx,
CR6.xx,CR60.xx,
CRD.11,CRD2.xx,
CRD3.xx,ME2.8.1,
ME9.7,MED17.7.x,
SIM266,SIM271DE2.0,
SIM271KE2.0,CR2.14,
CRV2.0,ME2.7.1,ME2.7.2
18. TCM Renew/Read IMMO Data:
VGS-NAG2,
VGS2-NAG2,
VGS3-NAG2
19. ISM Renew/Read IMMO Data
20. ELV:Read ELV IMMO Data,
Syn ELV IMMO Data,
Activate ELV Module,
Clean TP,
Renew ELV IMMO Data,
Disable Key,
Check ELV Status,
Write VIN Code
FBS3 B-CLASS 2012-2015 W246
FBS3 C-CLASS 2007-2014 W204
FBS3 C-CLASS 2004-2007 W209
FBS3 C-CLASS 2004-2007 W203
FBS3 CL-CLASS 2006-2013 W216
FBS3 CL-CLASS 1999-2006 W215
FBS3 CLK-CLASS 2002-2007 W209
FBS3 CLS-CLASS 2011-2017 W218
FBS3 CLS-CLASS 2009-2013 W207
FBS3 CLS-CLASS 1996-2002 W210
FBS3 E-CLASS 2008-2014 W212
FBS3 E-CLASS 2002-2007 W211
FBS3 G-CLASS 2012-2015 W463
FBS3 G-CLASS 2006-2010 W463
FBS3 GL-CLASS 2012-2015 W166
FBS3 GL-CLASS 2005-2010 W164
FBS3 GLK-CLASS 2008-2014 W204
FBS3 GLK-CLASS 1997-2002 W208
FBS3 GLS-CLASS 2015- W166
FBS3 ML-CLASS 2012-2015 W166
FBS3 ML-CLASS 2005-2010 W164
FBS3 S-CLASS 2006-2011 W221
FBS3 S-CLASS 1998-2004 W220
FBS3 SLC-CLASS 2014- W197
FBS3 SLK-CLASS 2012-2015 W172
FBS3 SLS-CLASS 2007-2014 W197
See also
How to Generate Suzuki ID47 Remote by VVDI Key Tool

OBDSTAR Benz FBS3 Kit Car List

All models in the support list support AKL program except W463/W215(K)/W220(K) only support Add Keys.

Keep updating vehicle list.

The Benz FBS3 adapter is pre-order in obdii365.com. It will be available on November, 10th, 2024. First came first served.
