Toyota Yaris Cross hybrid 2024 Europe, 8A blade key remote all keys have lost. What tool to program key for this car?

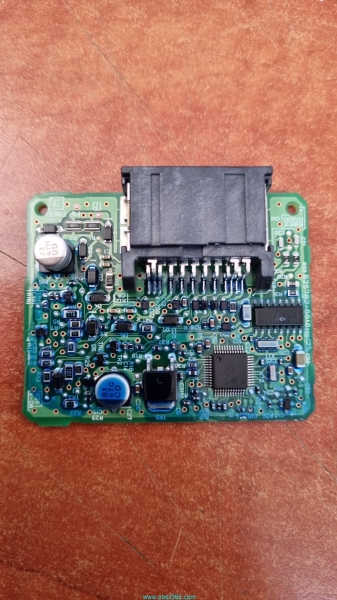

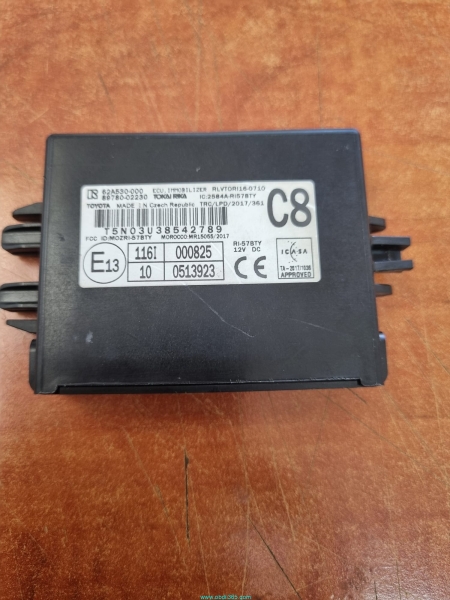

Here is the immo box.
Tango does not cover these. Try to read the immo box on bench with Autel IM608, the connections in the box are not the same.

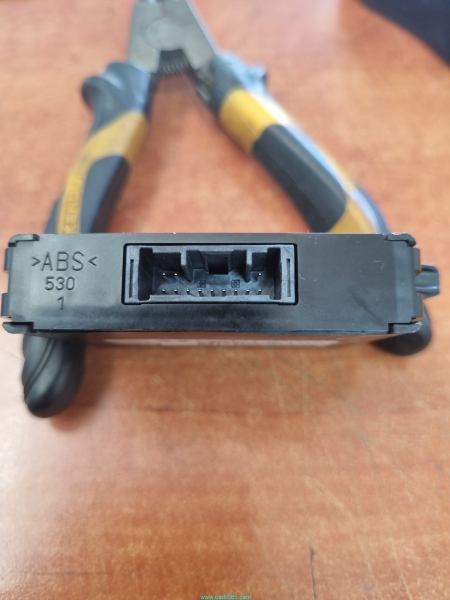

The connection is different but if you find the right pinout will be possible to read it.
Here is the pinot for Yaris 2022. Tried this pinout if not working, you need TIS dealer tool.
This is 3rd generation H Key, many tools cannot connect to this immo box and read a key/reset it. You must replace with a new unit and register new key(s) with a TIS challenge code then register immo-ecu by diagnostics. This is the same immobox as in MZEA1 Corolla or 300 series Hiace. There are currently no aftermarket options for these vehicles, you must replace and register as per the factory manual.
We probably won’t be able to make this car without a Toyota dealership. In my case, I made a key (toy48), and removed the immobilizer box from under the dashboard. To finish the work, a new immobilizer box, an 8A chip and an original remote control from the Toyota dealership are needed. And finally, you need to bring in a technician to do an online synchronization for the immobilizer and ecu.
With the devices we currently have, we cannot make akl for this vehicle. We will wait for the new device to connect to the car.
