It’s a 2022 Toyota Tundra, another 30 pin car. This one’s easy. Here we add a new spare key to this model with Autel IM508 and OBDSTAR 30 pin cable bypass pin code.
Device used:
Autel IM508 XP400pro
OBDSTAR Toyota 30 pin cable
Old customer key
New OEM key to be programmed

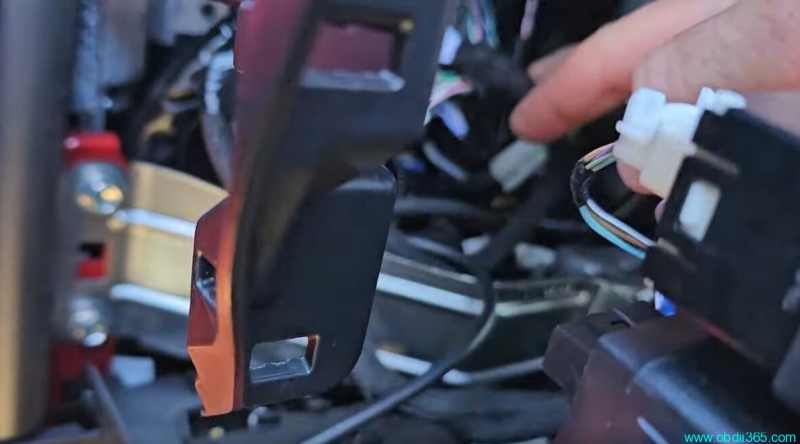

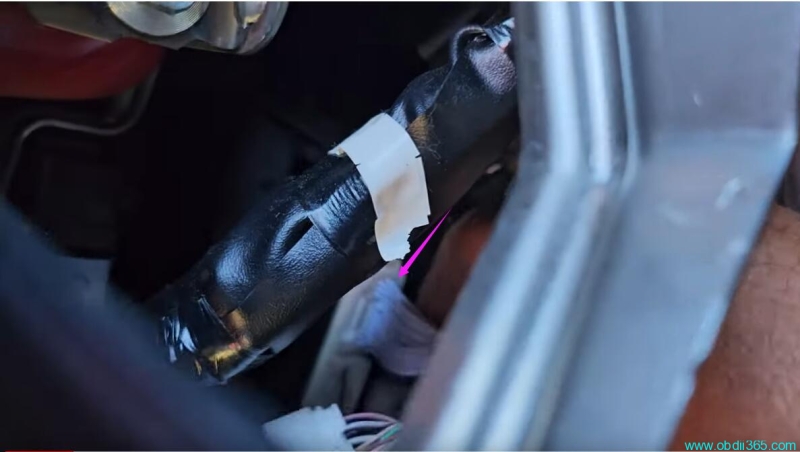

This is a driver’s Dash panel side panel, just pops right down. It’s the top plug a little tough to see but top plug of that module.

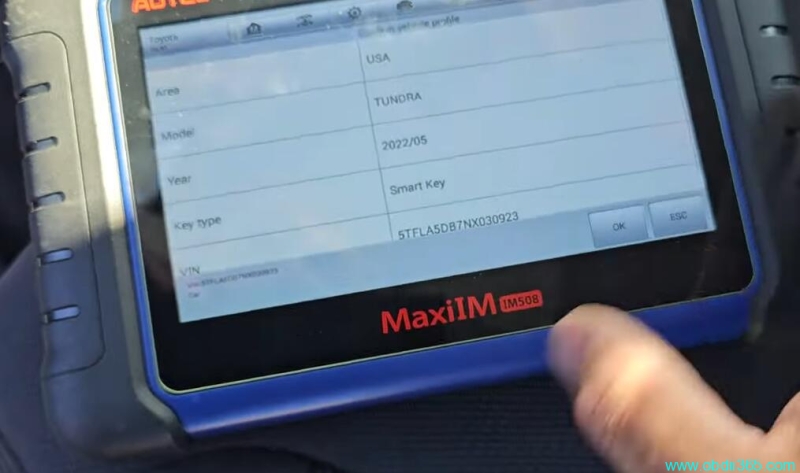

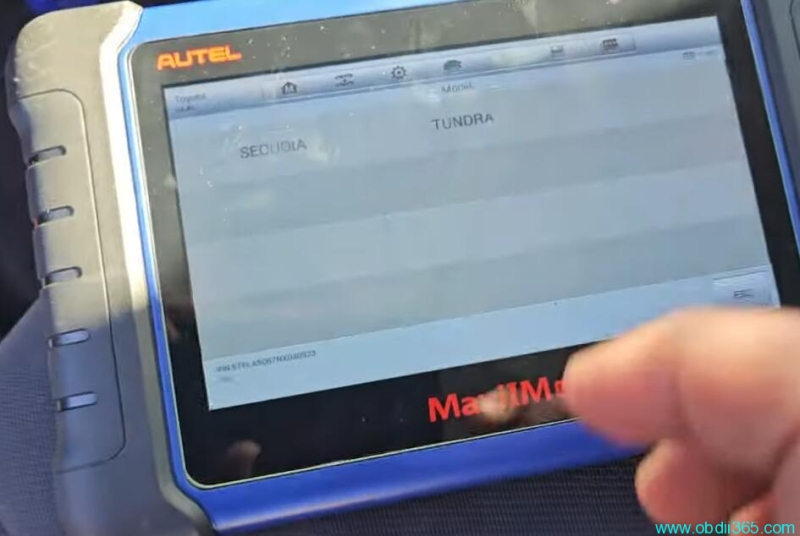

Select vehicle, read and decode VIN.

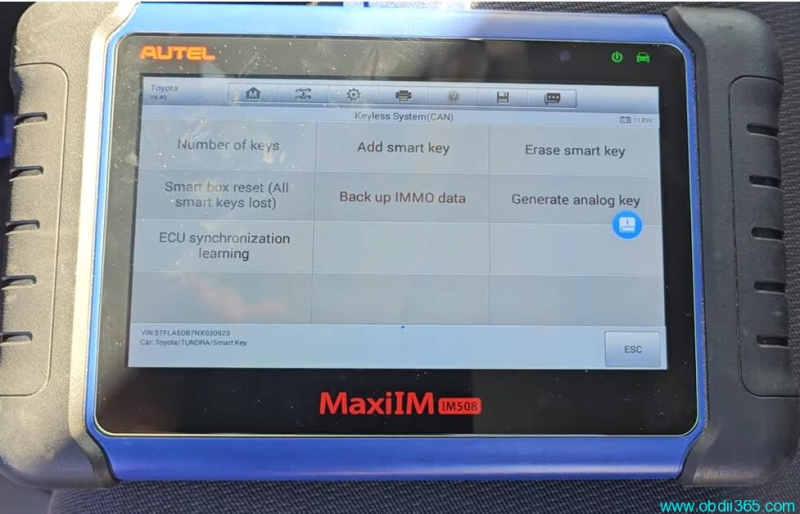

Select Control Unit->Keyless System CAN

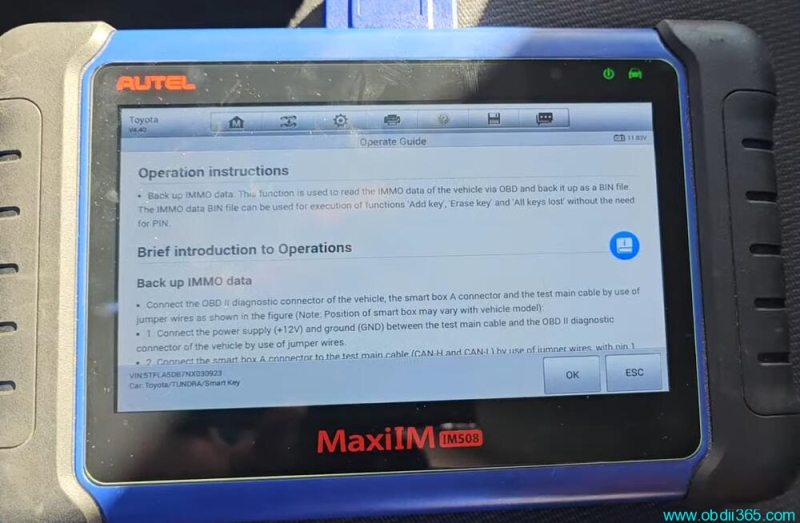

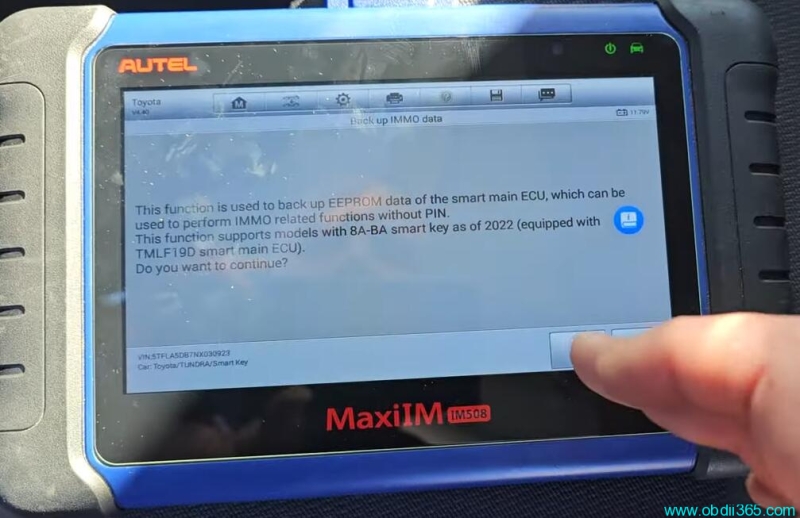

Then Backup immo data.
Make sure device has good network connection.

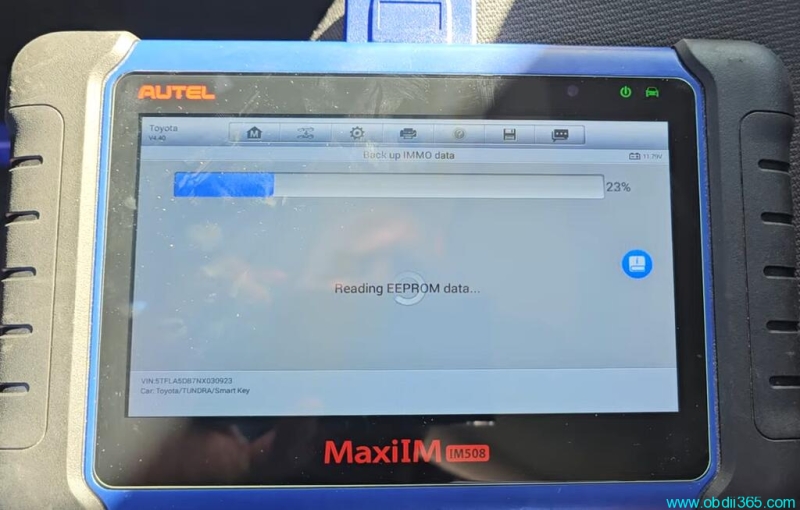

Read and save eeprom

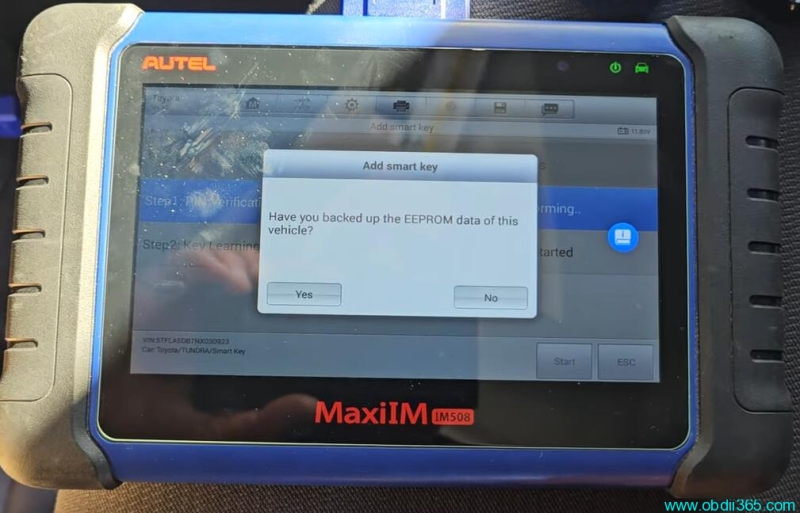

Select Add smart key function

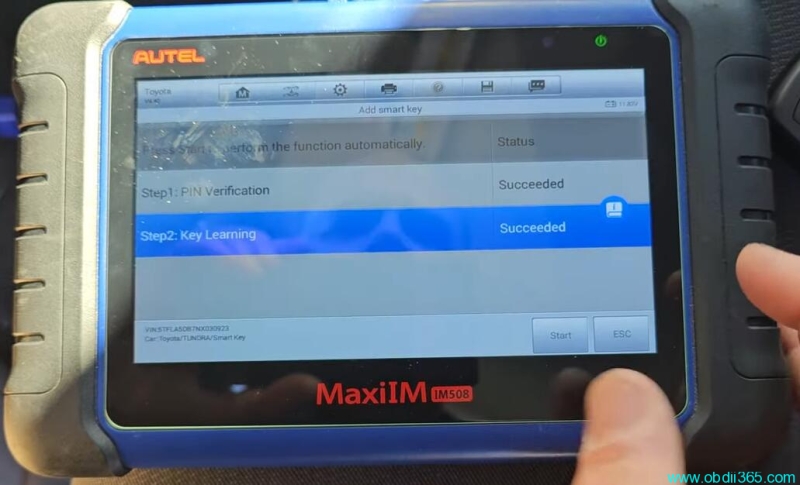

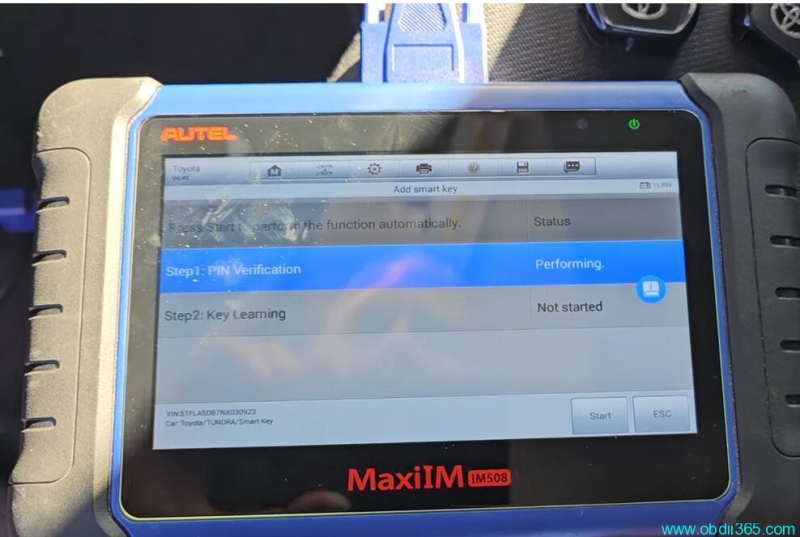

Perform 2 steps to complete key programming.
Step 1: PIN Verification
Step 2: Key Learning

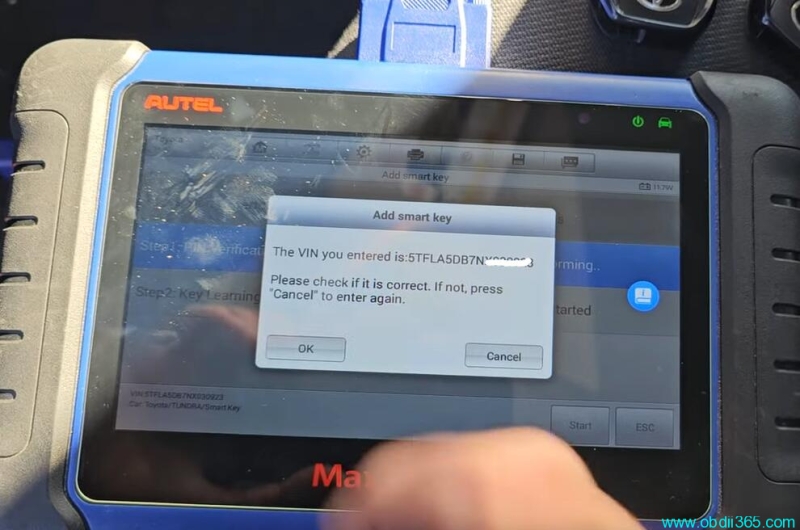

Read and confirm VIN number

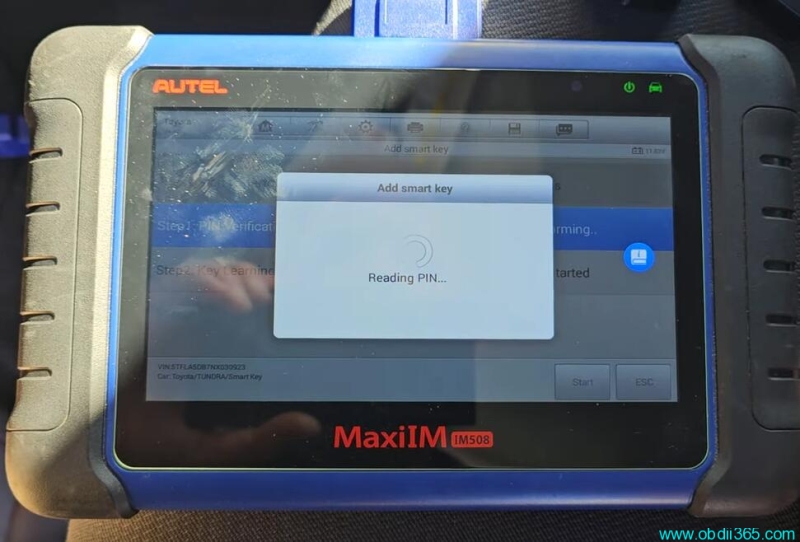

Upload eeprom saved to verify PIN

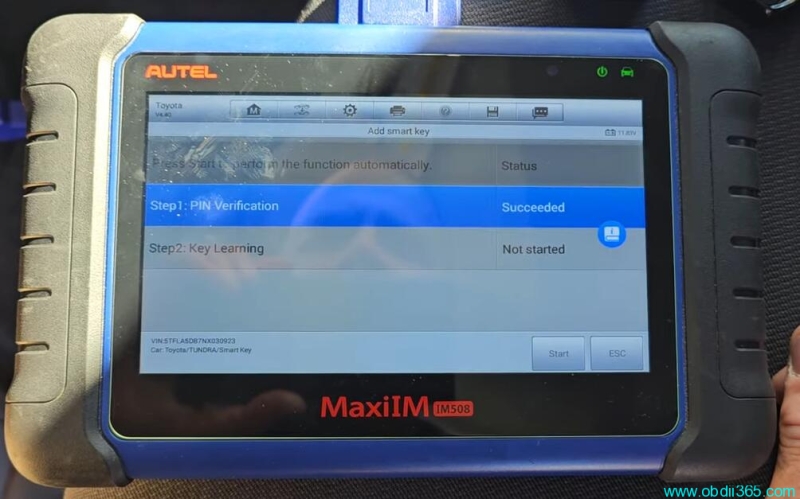

Read pin completed.

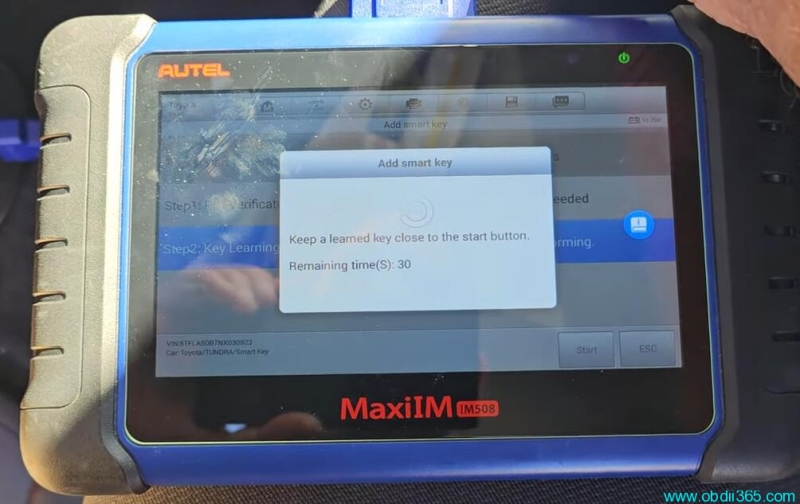

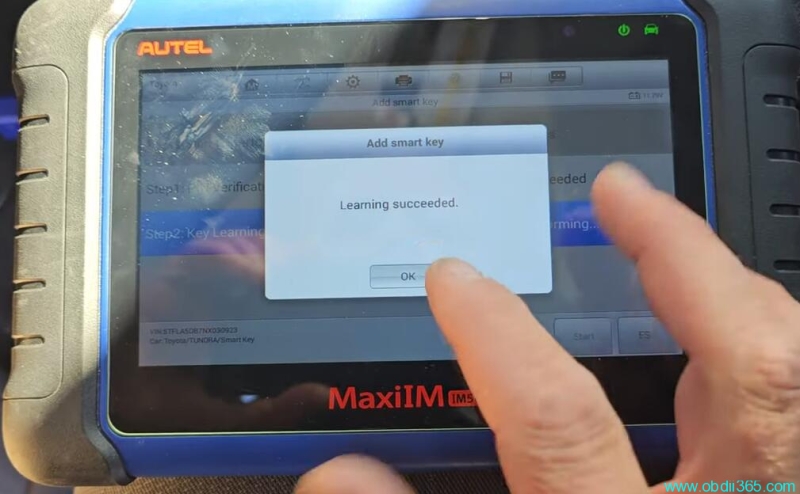

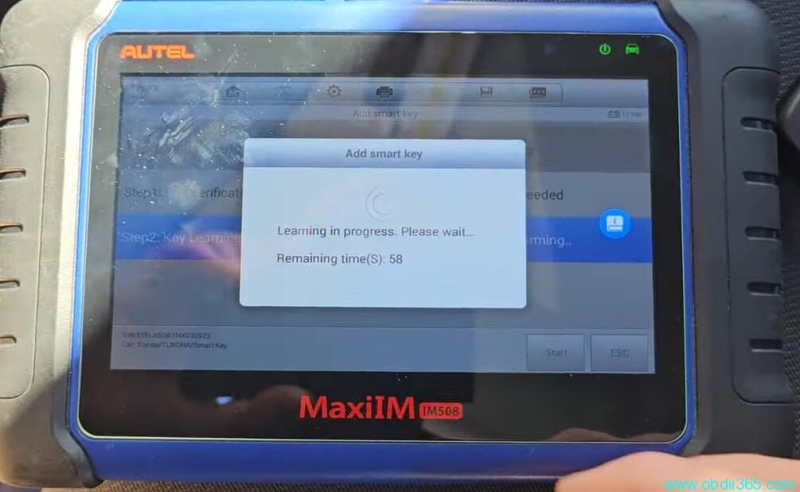

Then learn key.

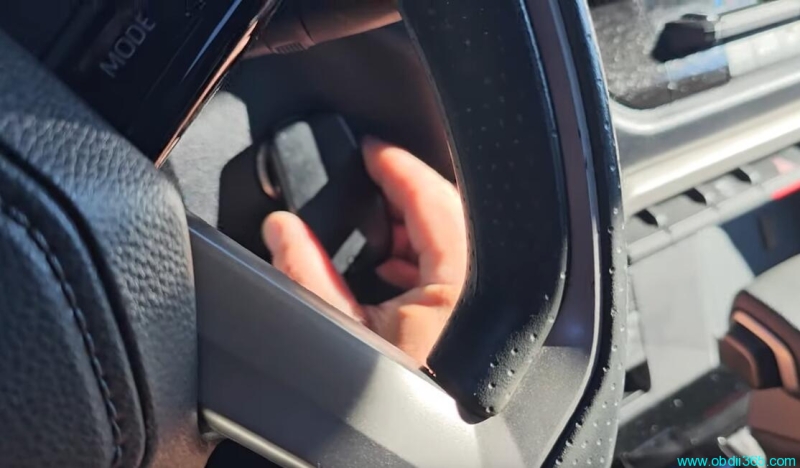

Test both keys.
Done.
