In the previous post we show how to program Toyota 2022- 8A-BA proximity with Autel IM508 and OBDSTAR 30 pin cable bypass PIN code.
Today we show how to add a spare 8A-BA smart key with obdstar x300 dp plus and the 30 pin cable.
Vehicle model:
BZ4X MY2023
Chip type:
8A-BA proximity
Procedure:
Prepare an existing key and a new key.

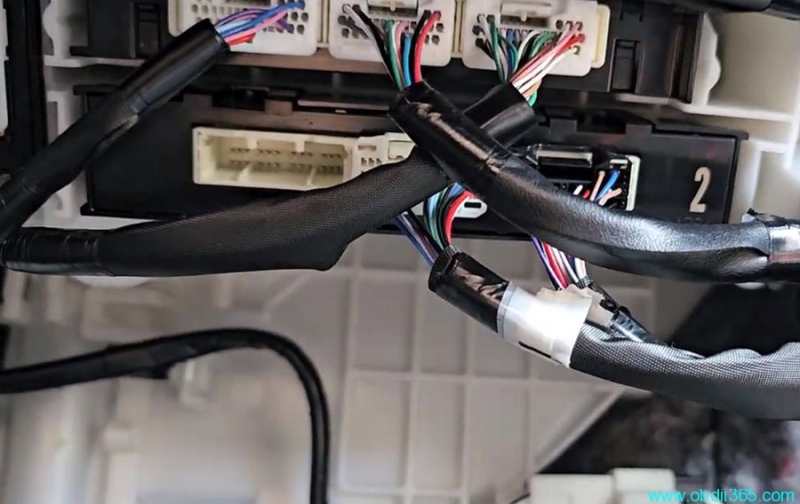

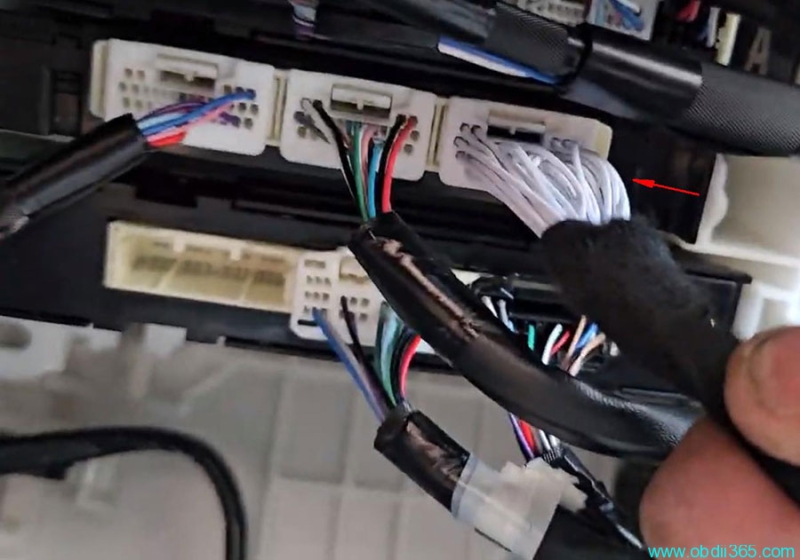

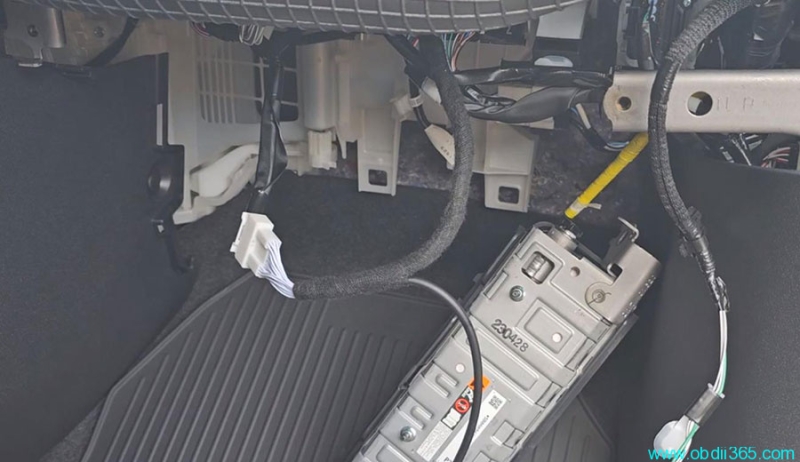

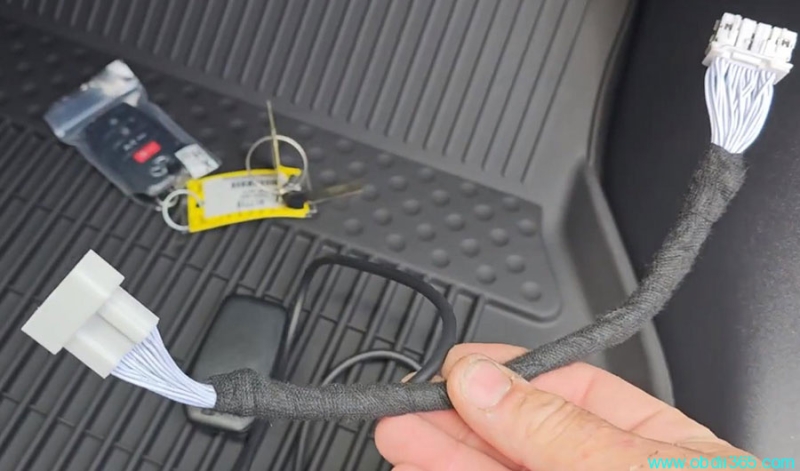

Then we connect Toyota 30 pin cable with smart box, same as Autel in previous post

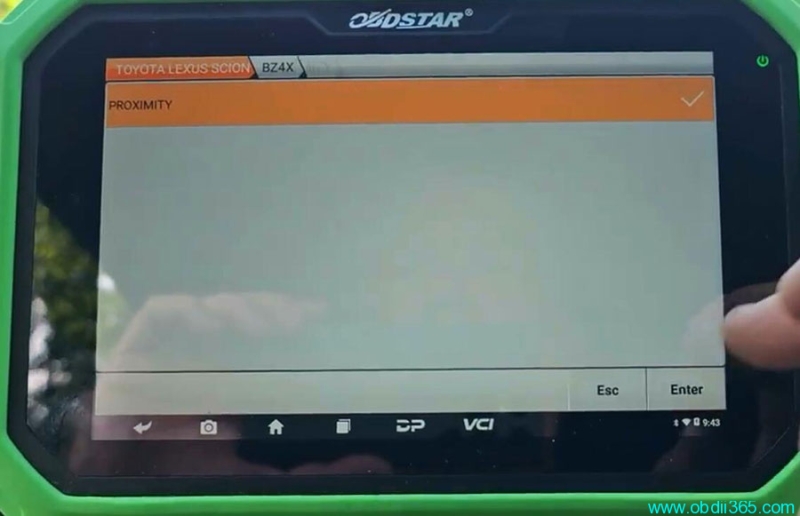

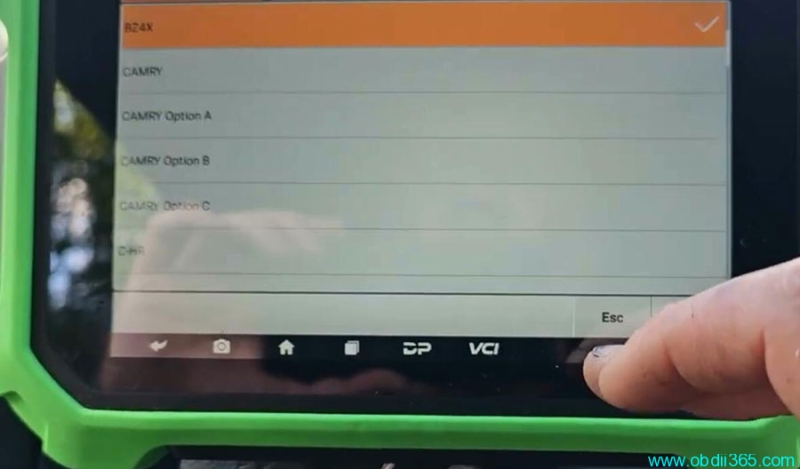

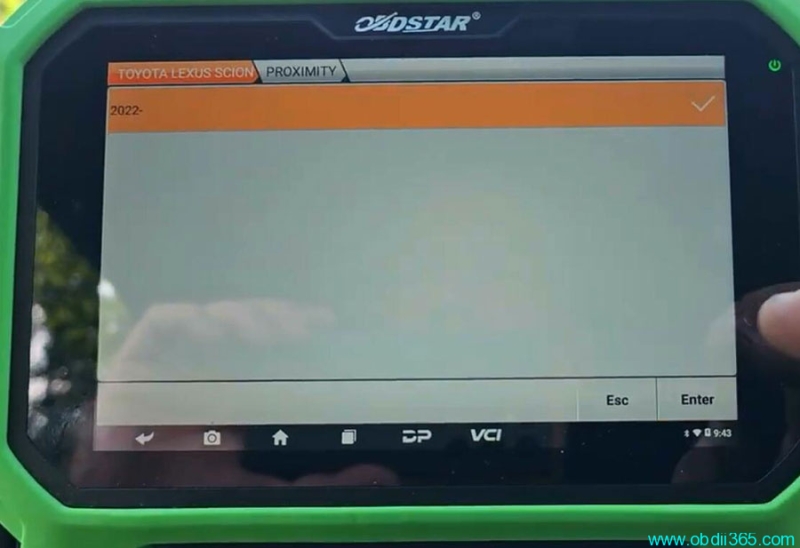

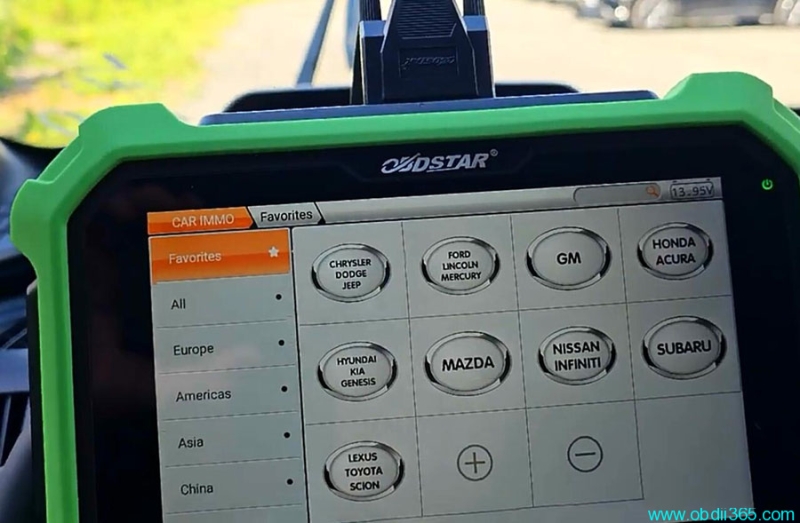

In x300dp plus, select Toyota/Lexus->latest immo software-> Manual Select model->Toyota->US/Canada->BZ4X->Proximity->2022-

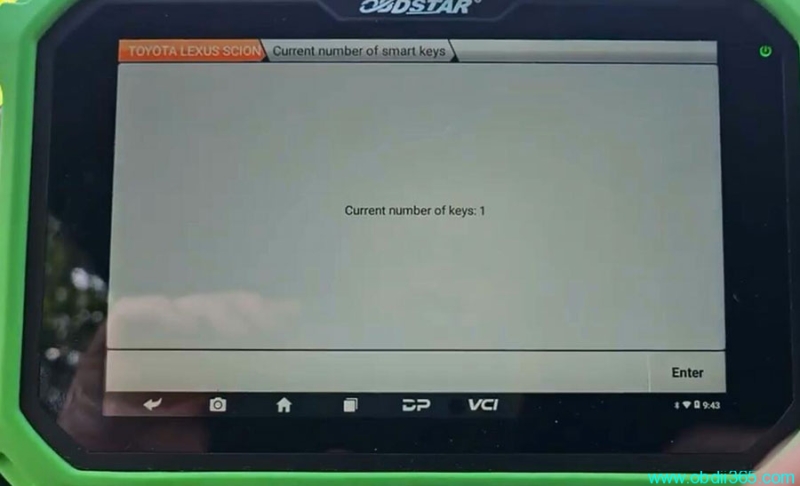

Read current number of smart keys: 1
Turn ignition off same as Autel

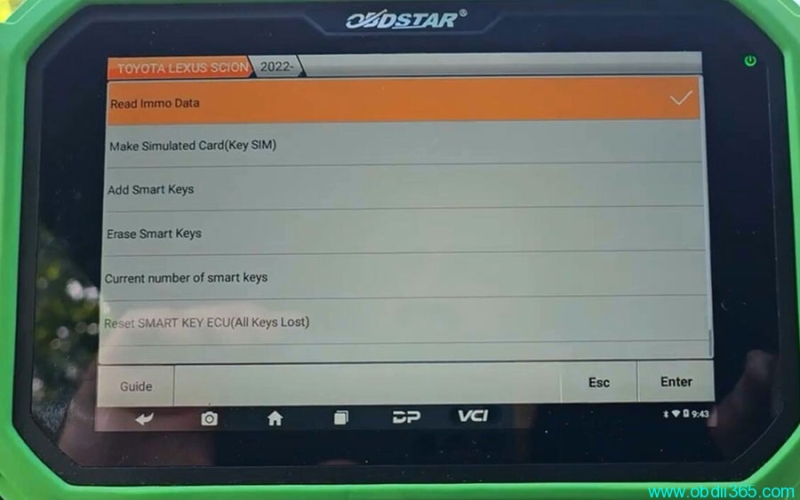

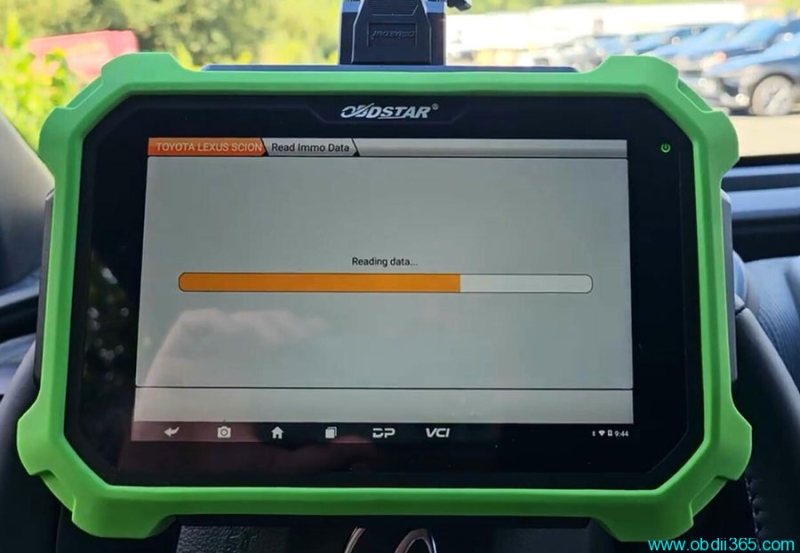

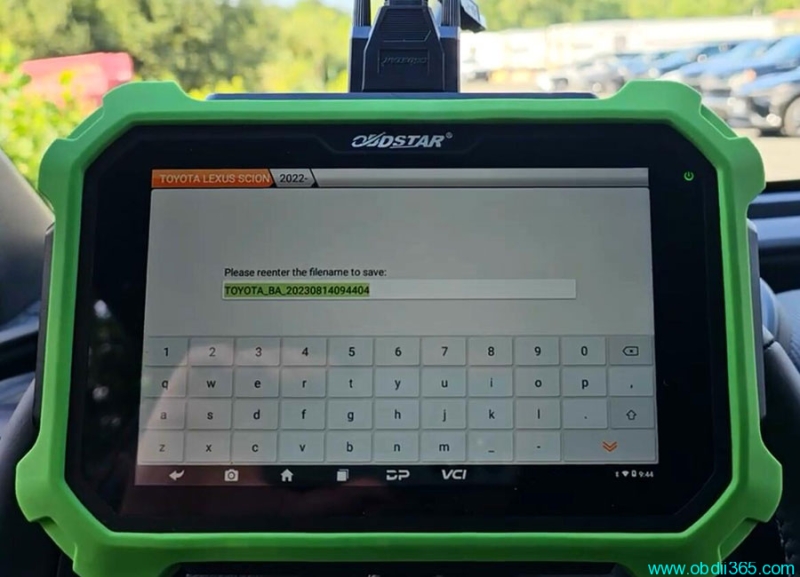

Read immo data and save data
This function requires network connection.

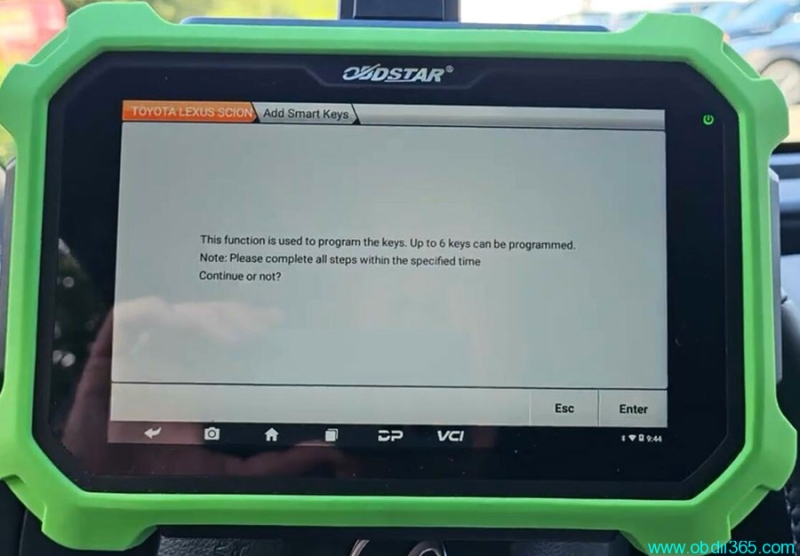

Add smart keys

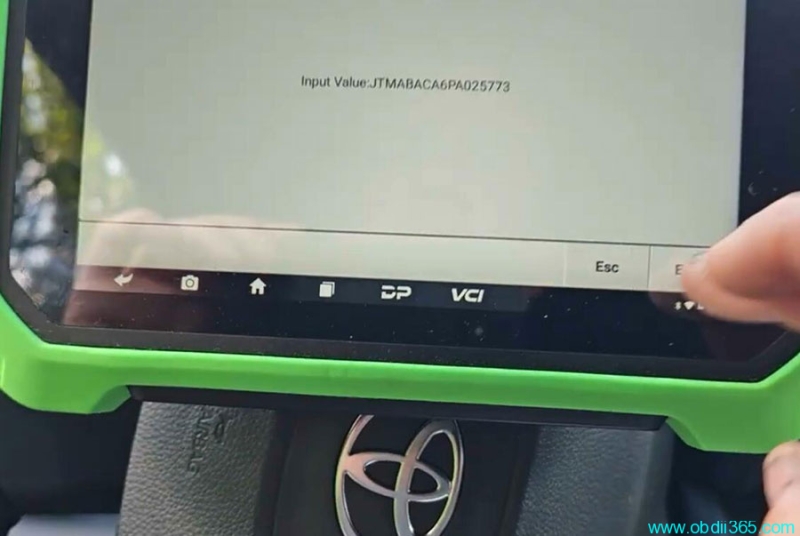

verify VIN
Select immo data just read

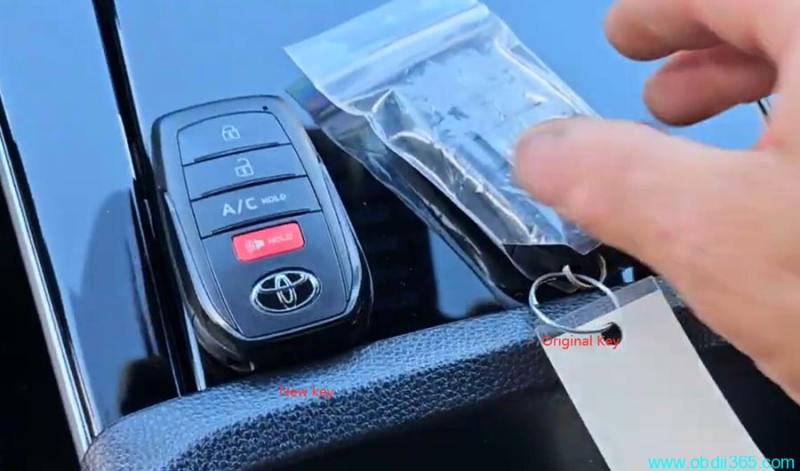

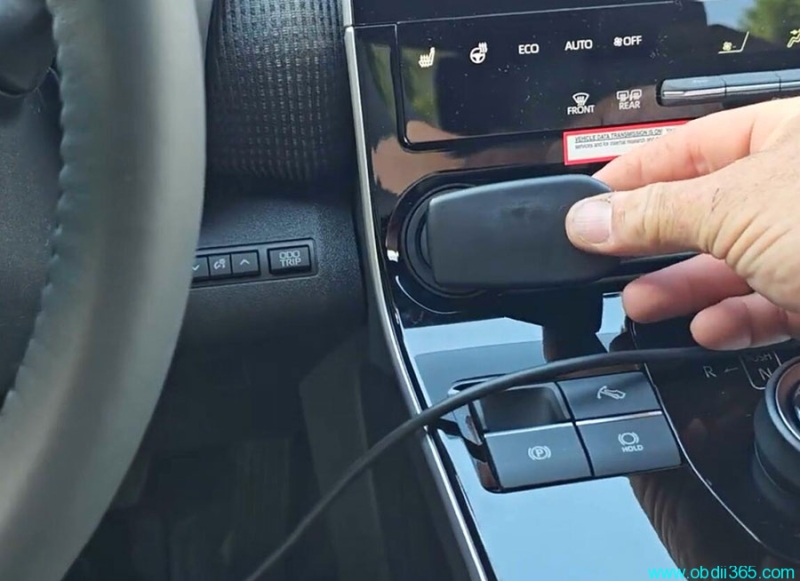

Put original close to Start/Stop button

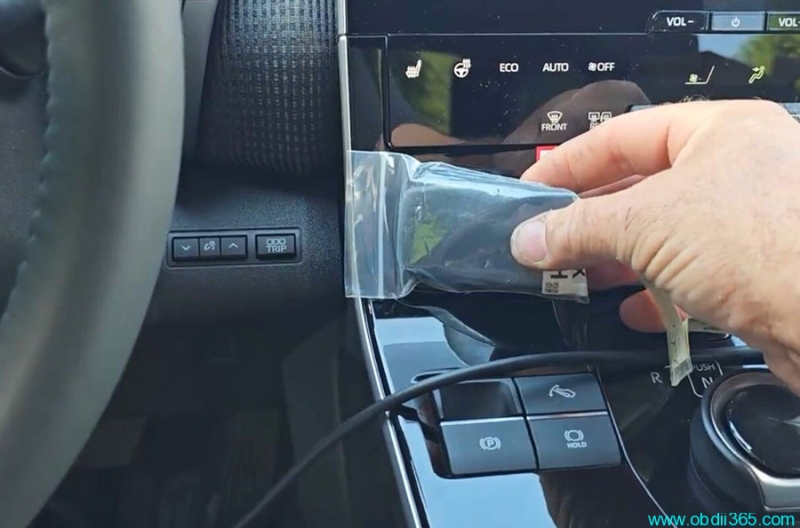

Put new key close to Start/Stop button

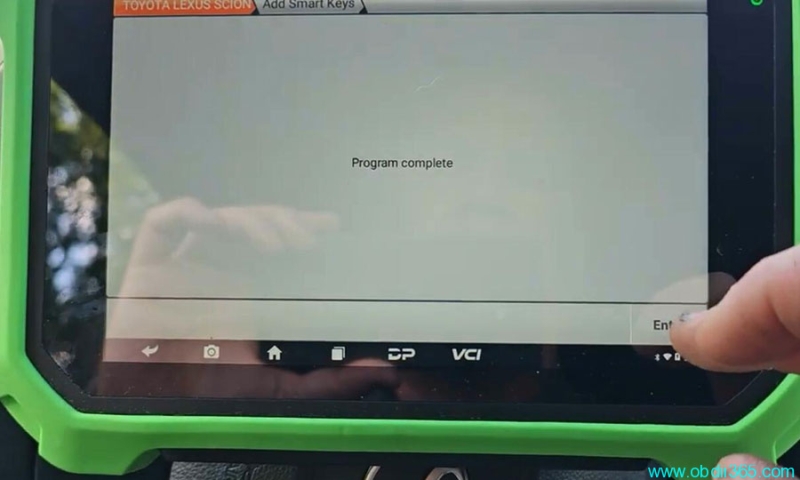

Program completed.
Here just add a spare key, so you read immo data and add smart key. If all keys lost, you need make simulator key with Key SIM then make all smart keys lost.
If need to program 8A-BA all keys lost with OBDSTAR, here is an example:
OBDSTAR 2022 TOYOTA GRANVIA HV 8A BA Proximity AKL Bypass PIN
