Question: I bought these OBDSTAR Toyota 24 & 27 pin connectors to read smart boxes. But they have a 16 pin obd2 connector on the other end. Does anyone know if I can just connect it directly to my Autel Gbox obd2 connector instead of through the port on the side like with the DB15 cable? Will it work the same?
Answer:

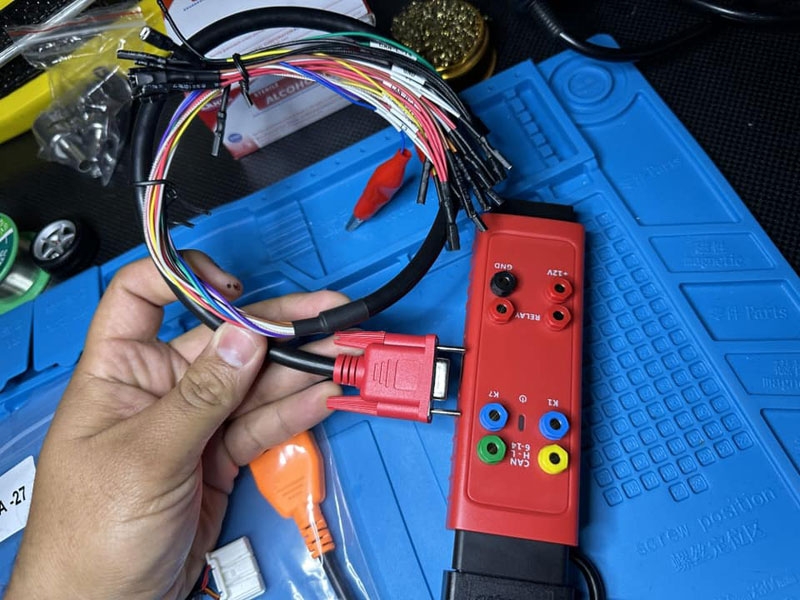

The pin arrangements for the connectors to the smart box and they are the same as where Autel wants you to connect their DB15 cable. Powers, grounds and CAN lines.

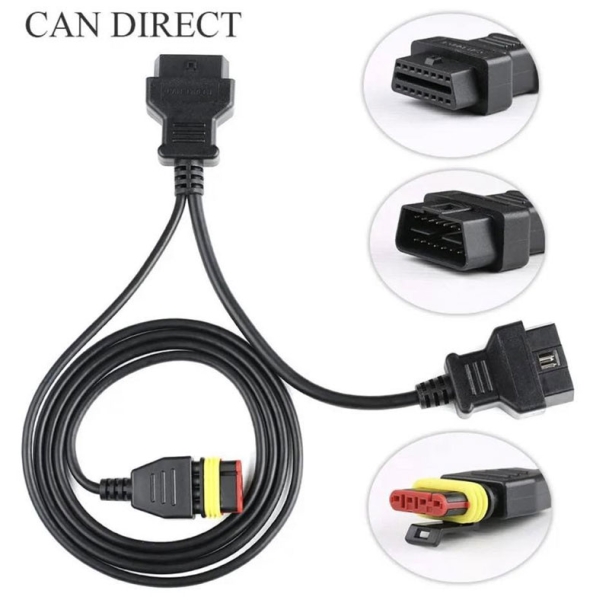

You don’t need g-box with this cable. just connect one end to Autel im608 jvci, other end to car obd and the white plug goes directly to smartkey ecu. Make sure to remove the other 2 smartkey ecu connectors.

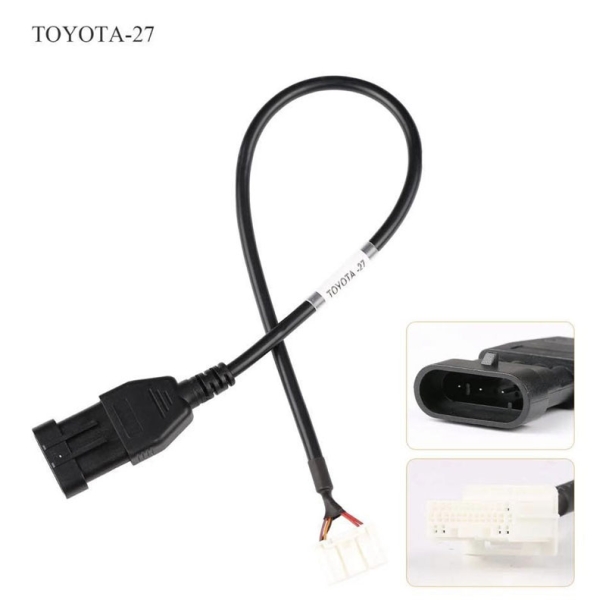

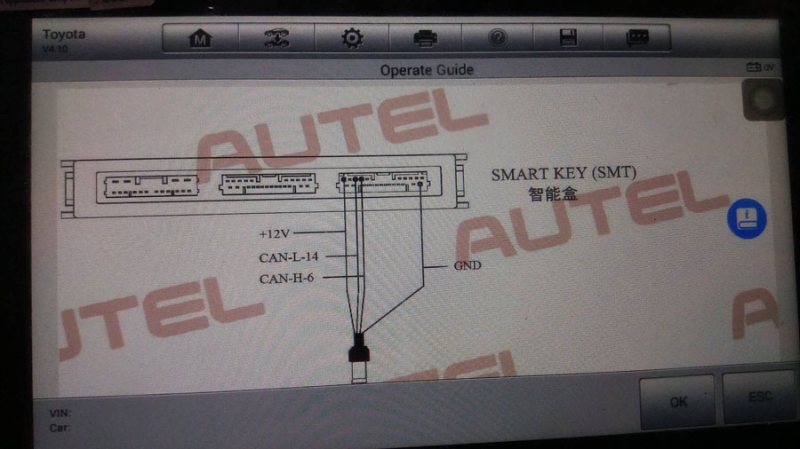

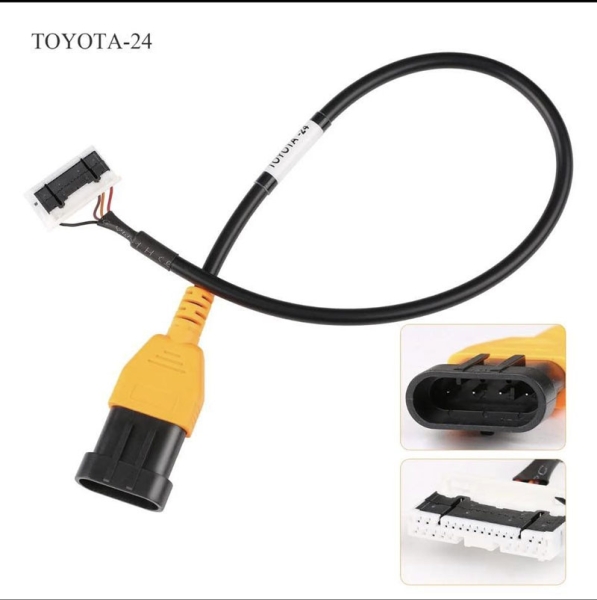

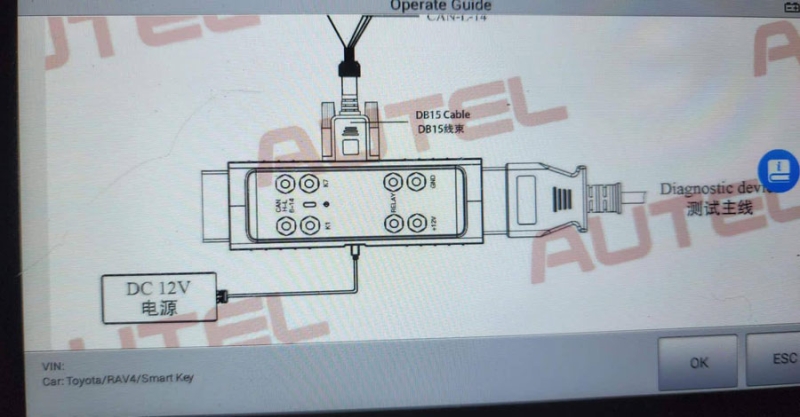

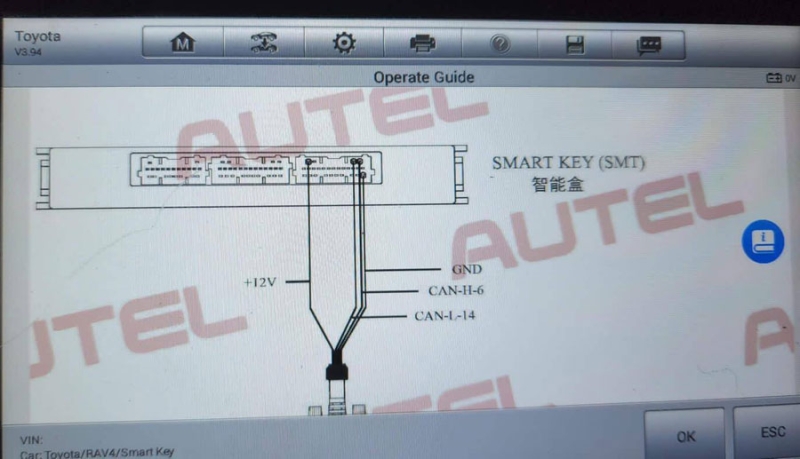

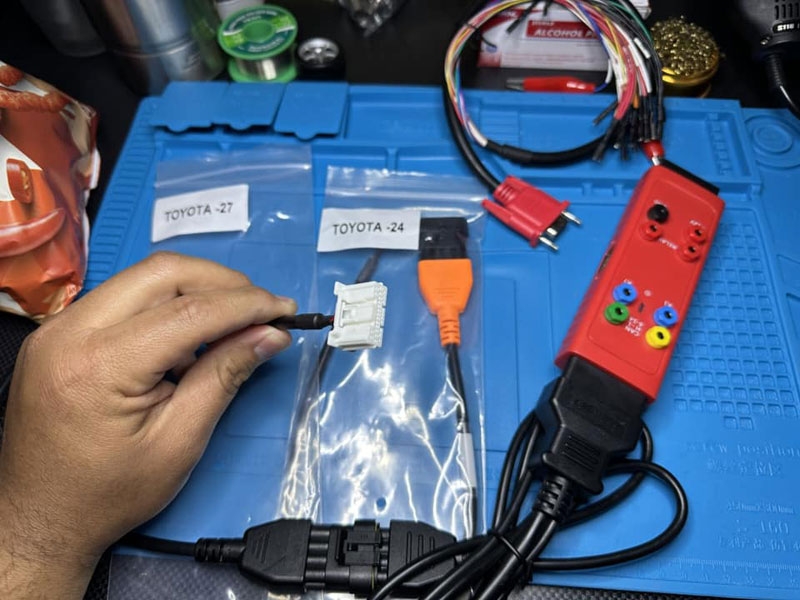

Digram connect smart key 24 Pin and 27 Pin and G Box 2
