How-to: program 2017 Lexus ES350 all smart keys lost using Autel MaxiIM KM100 key tool.
The customer has a working key, But we do it as all keys lost. That is the process when is no key. 5 minutes plus cut the emergency key.
Those prompts are almost identical to the IM508/IM608. The km100 has a key simulator in it, you don’t need an apb112 emulator.
Main Steps:
Backup immo data
Generate emulator key
Add key
Step 1: Backup immo data

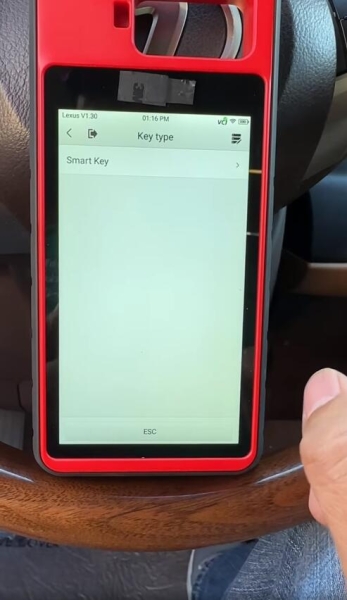

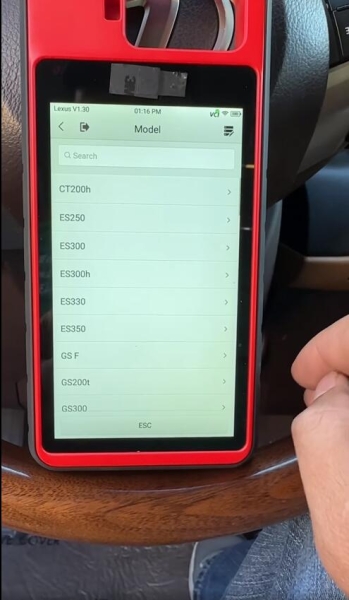

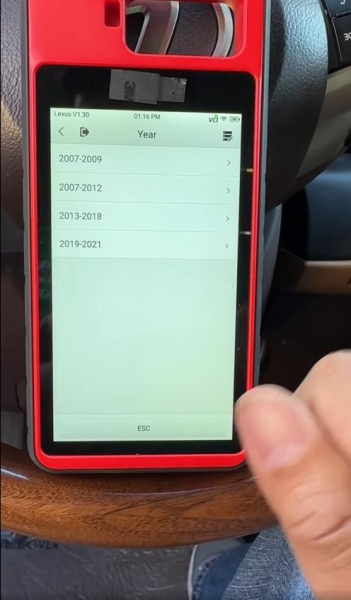

Go to IMMO->Lexus->ES350->2013 to 2018->Smart Key

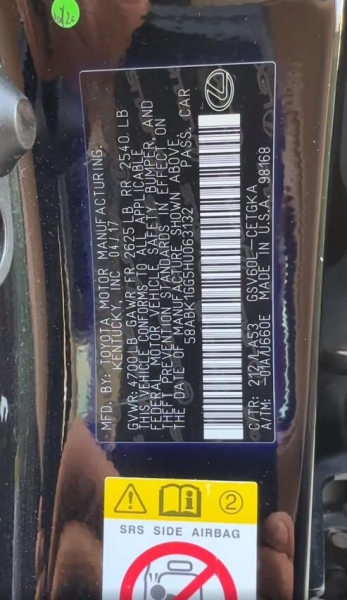

Read and confirm vehicle info.

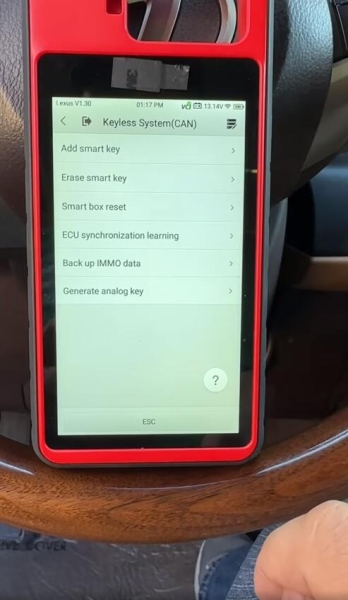

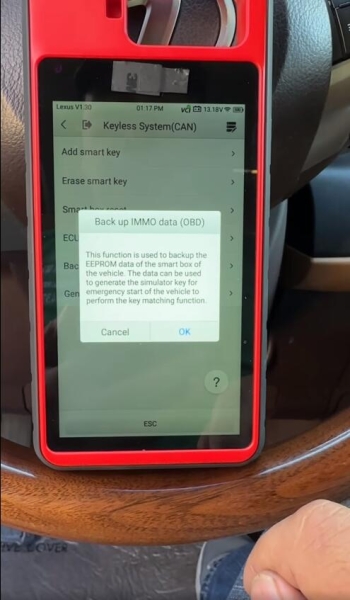

Backup immo data

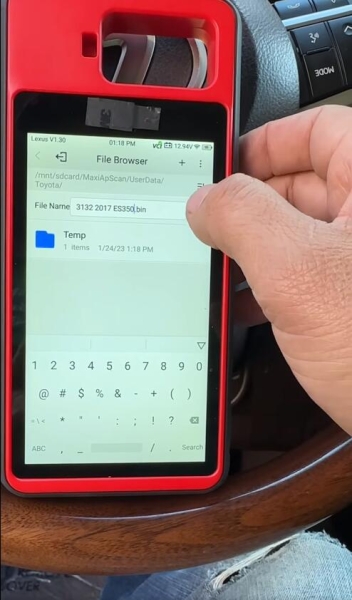

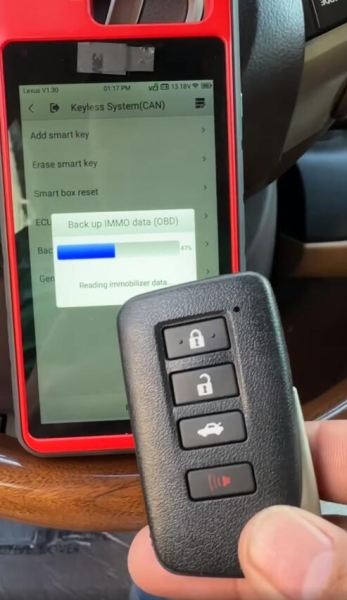

Back up and save IMMO data via OBD. Network connection is required.
Step 2: Generate emulator key

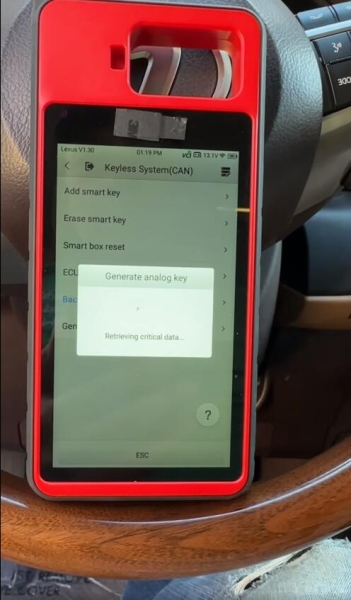

Then Generate analog key

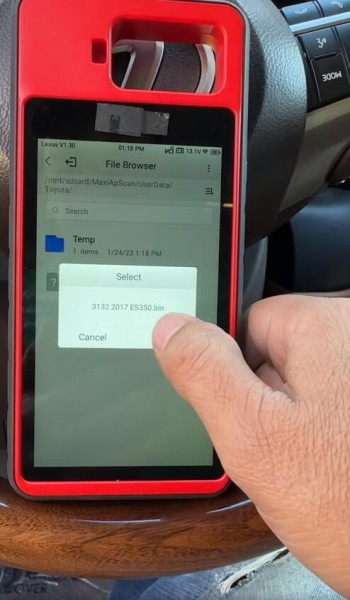

Select immo data just saved

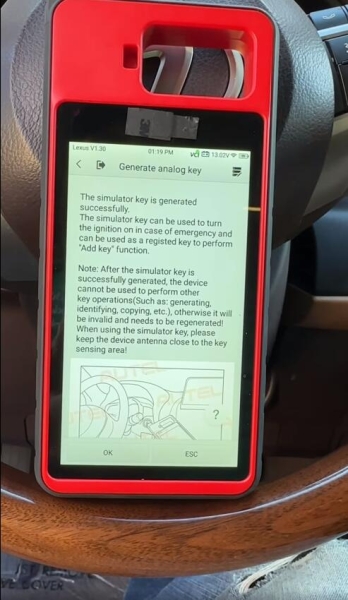

The simulator key is generated successfully.

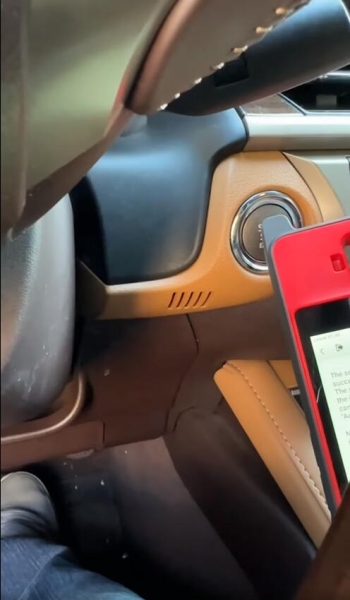

When using the simulator key, keep the device antenna close to the key sensing area.
Step 3: Add Smart Key

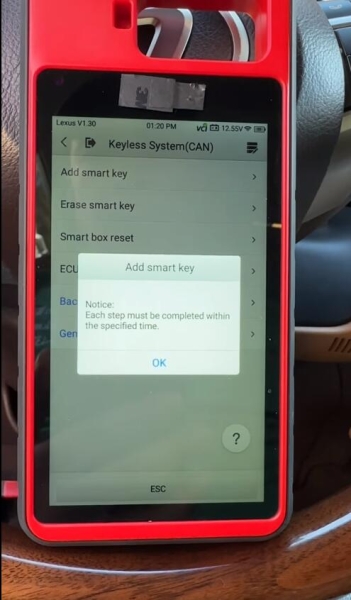

Select Add smart key

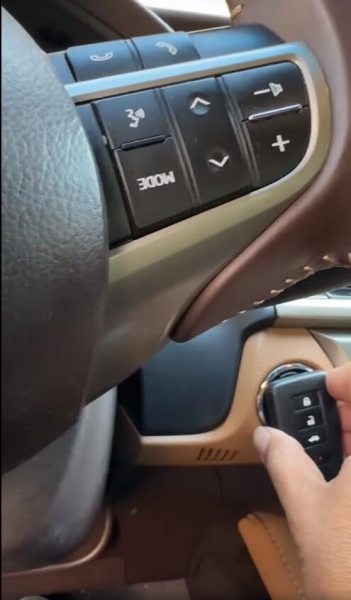

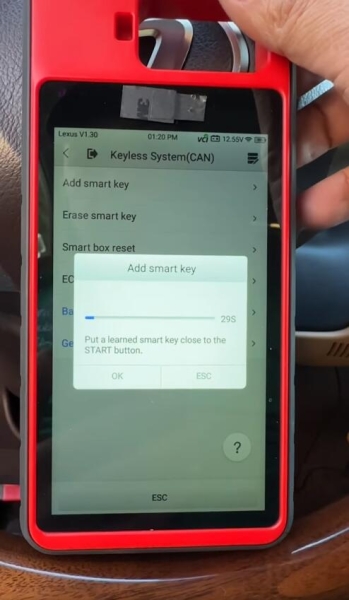

Put a learned smart key close to the START button

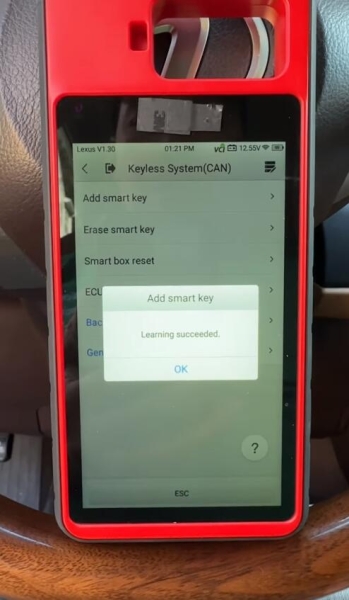

Key learning is done.
