OBDSTAR released an important Toyota/Lexus software update for vehicles with gateway reading smart key ECU IMMO data by OBD (world first released, no need any adapters).
Here is an example on read immo data and generate simulator key on Toyota Camry 2018 8A-A9 proximity via OBD.

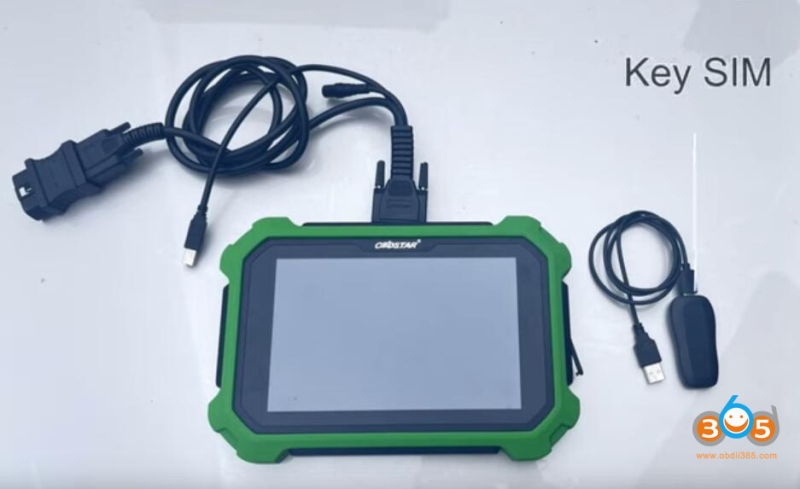

Device required:
OBDSTAR X300 DP Plus/Key Master DP Plus/Key Master 5/X300 Pro4
OBDSTAR Key SIM
Procedure:
Step 1: Read Immo Data
Connect x300 dp plus with vehicle via OBD main cable

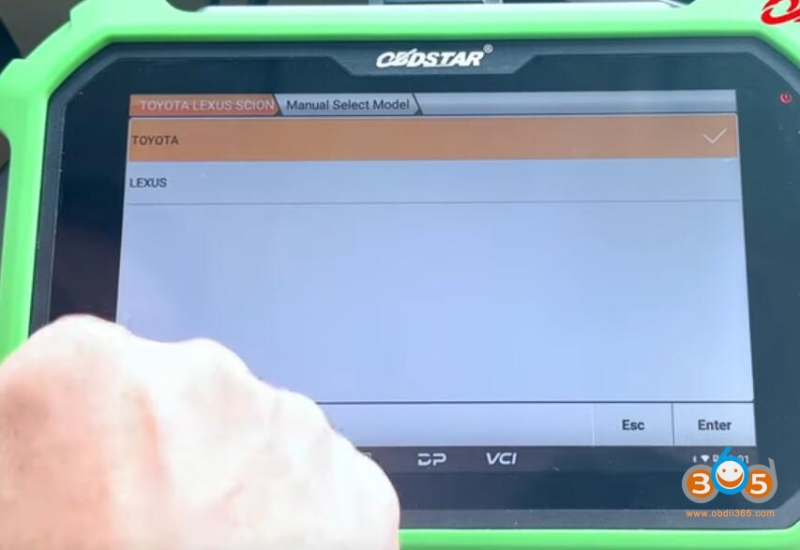

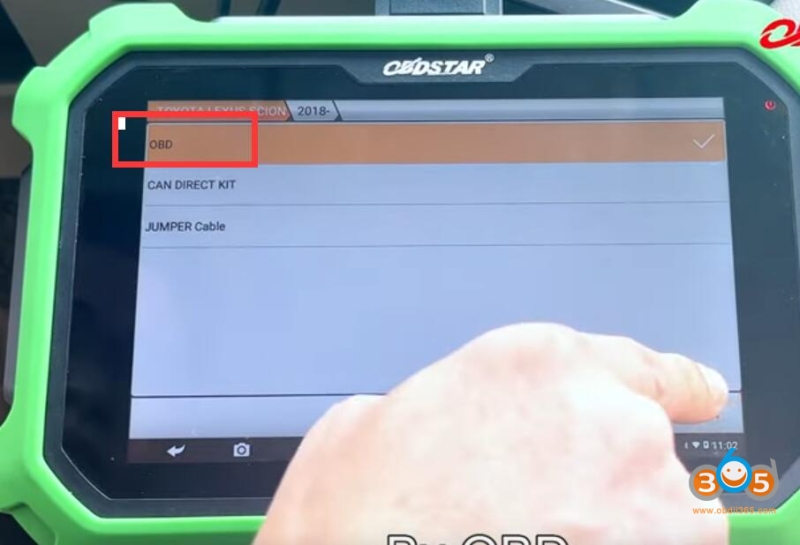

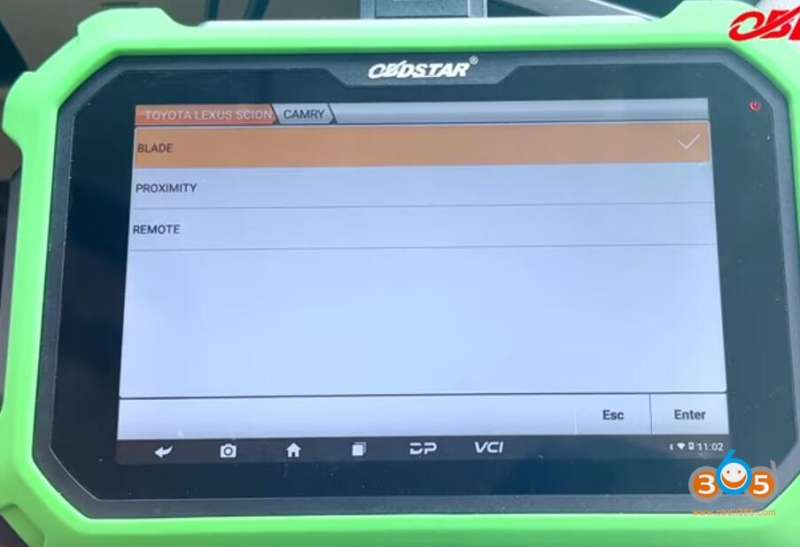

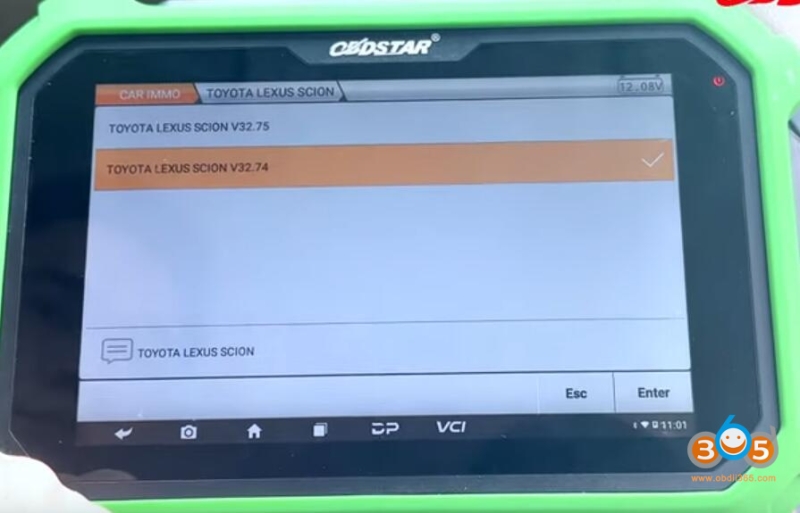

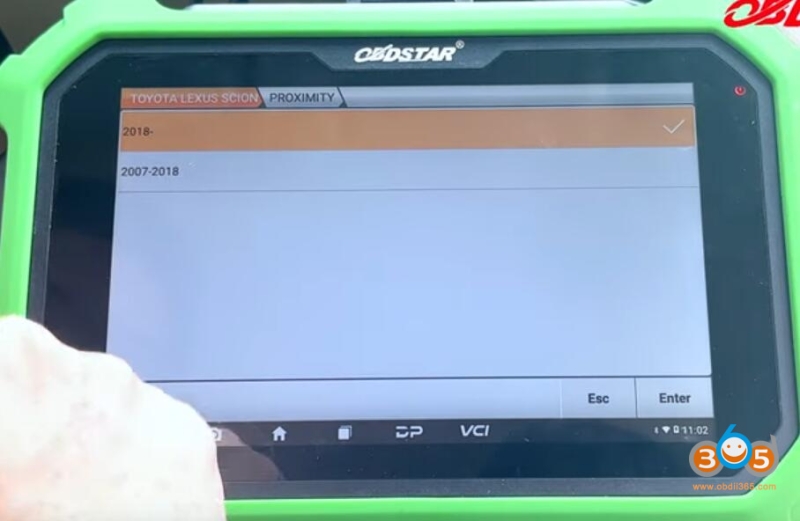

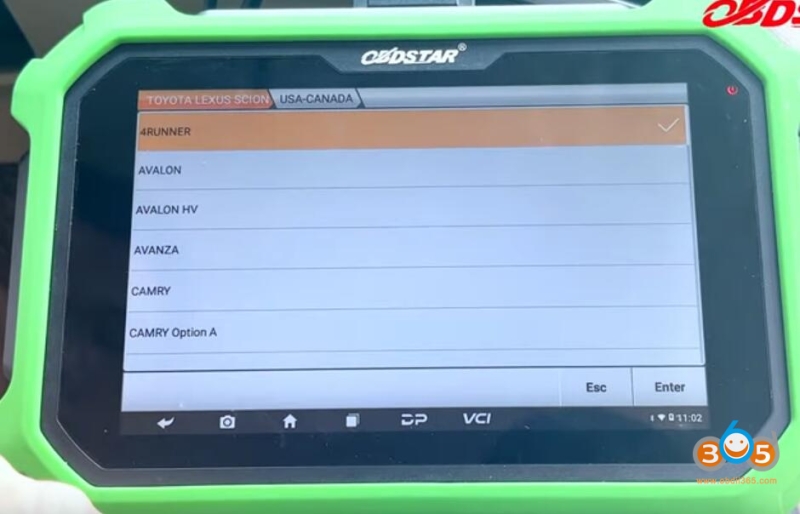

Go to Car immo->Asia- >Toyota Lexus ->Latest Toyota software-> Manual select vehicle->Toyota-> Select region USA/Canada ->Camry ->Proximity-> 2018 onwards-> Read Immo data-> By OBD
The function requires network connection
Turn on the emergency flasher and press Start button for 5s

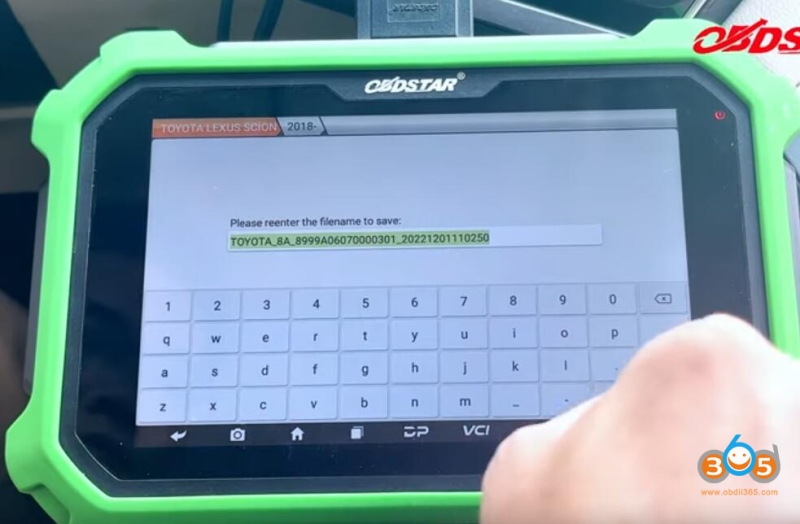

Read immo data via OBD successfully. Save data.
Step 2: Generate simulator key

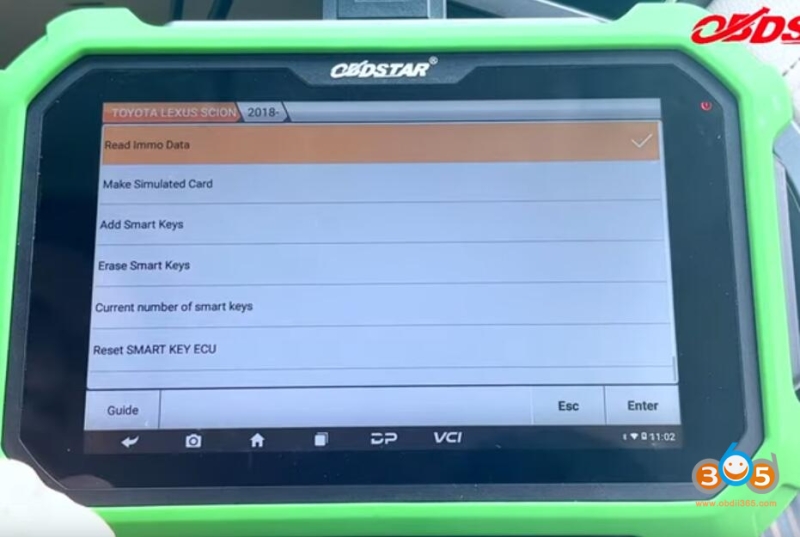

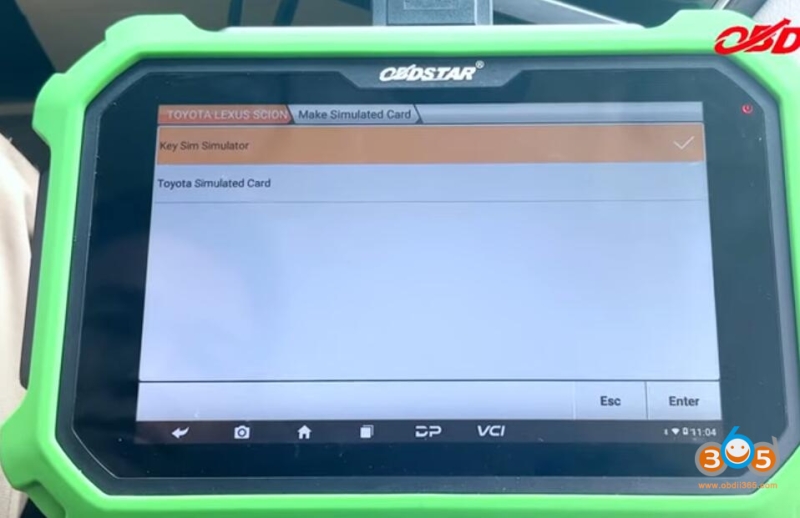

Then select Make simulated card

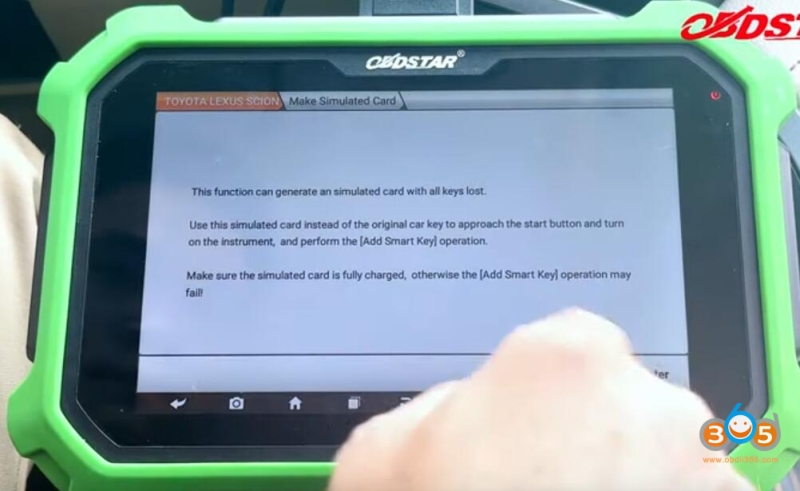

The function can generate an simulated card with all keys lost. The simulator key will turn on ignition and will be used to add smart key.

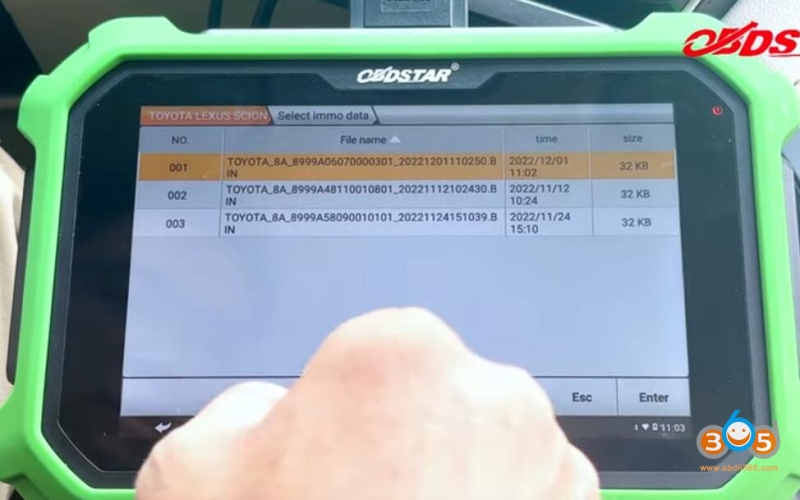

Select the immo data in step 1
Select generate simulator by Key SIM
Obdsta 2018 Toyota Camry 8a Via Obd 13

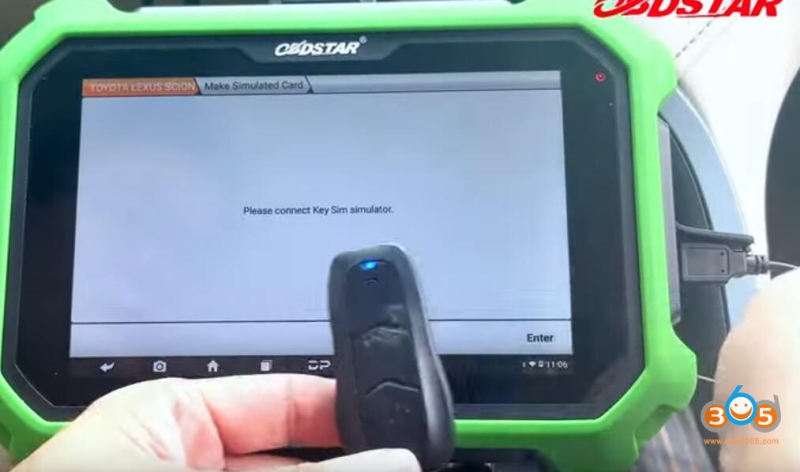

Connect Key SIM with x300 dp plus

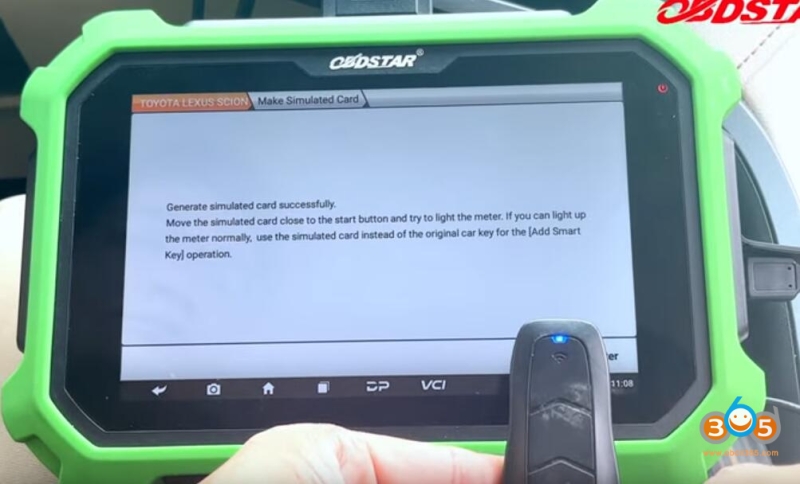

Generate simulated key successfully
The generated simulator key will start car. Then you can perform Step 3: Add smart key. Add key or all keys lost via the immo data.
The procedure is pretty straightforward. Just follow the instructions.
