Autel tutorial: how to register and update Autel MaxiIM KM100 software and VCI.
Part I: Register KM100
Turn on KM100
Accept disclaimer

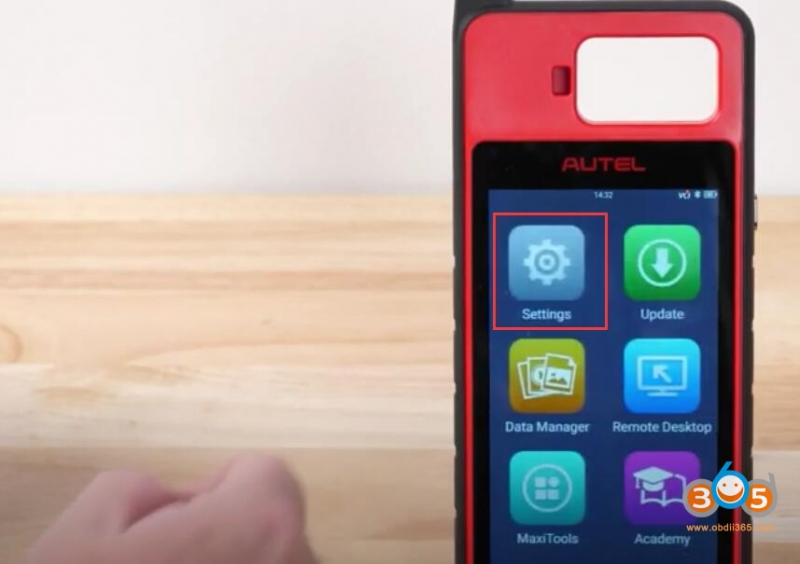

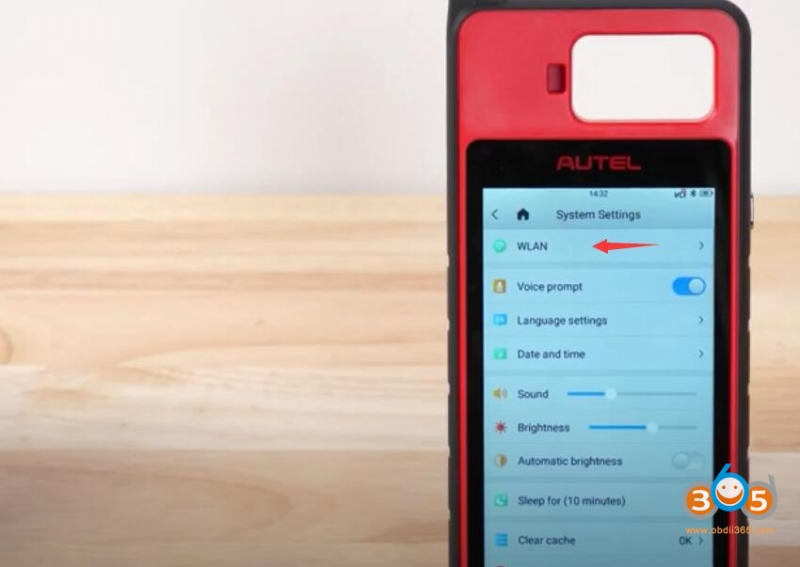

Go to Settings>>System Settings>>WLAN

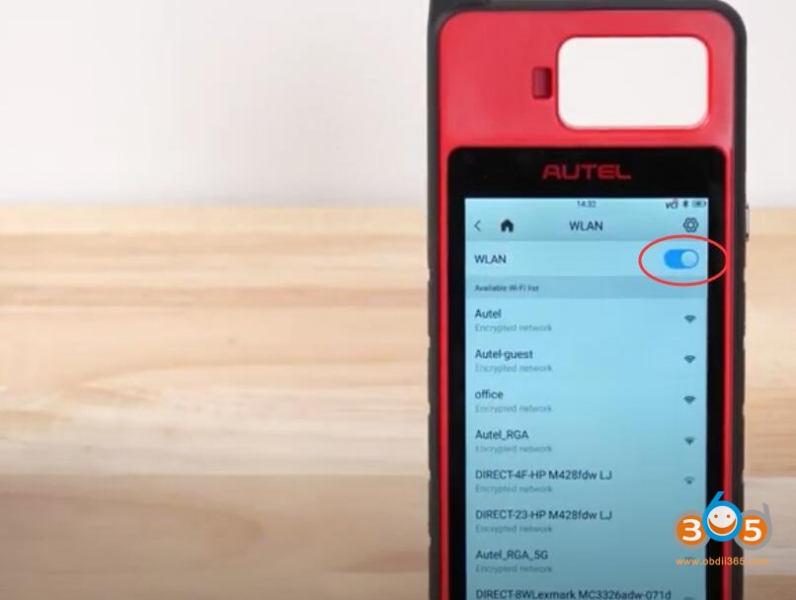

Connect Autel KM100 to Wi-Fi.

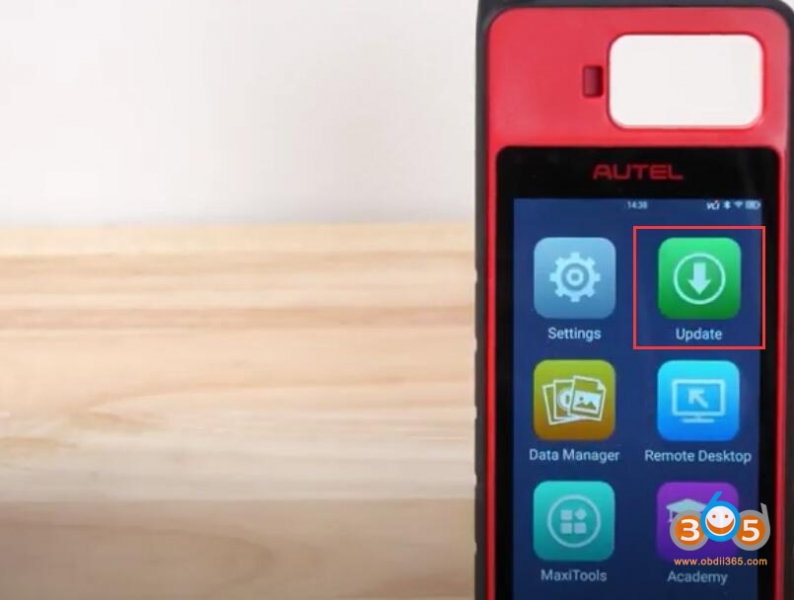

Back to Homepage, select “Update”.

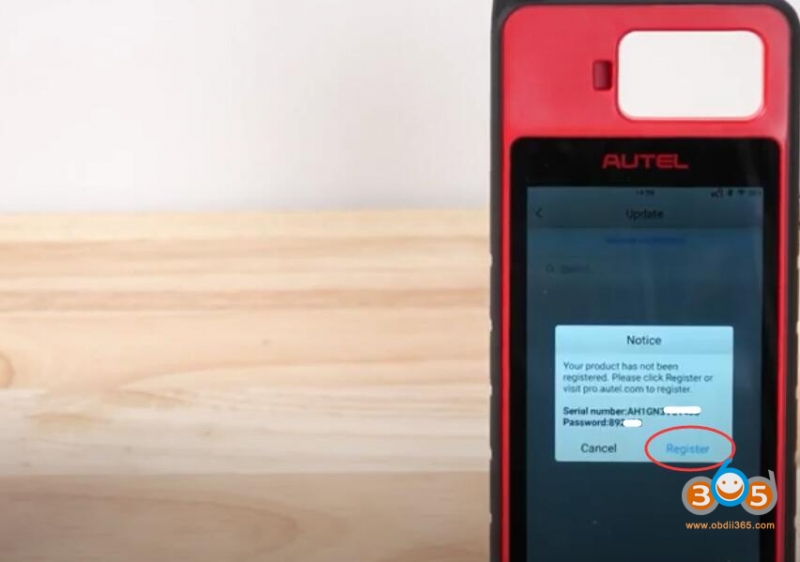

KM100 says the product has not been registered.
Press Register

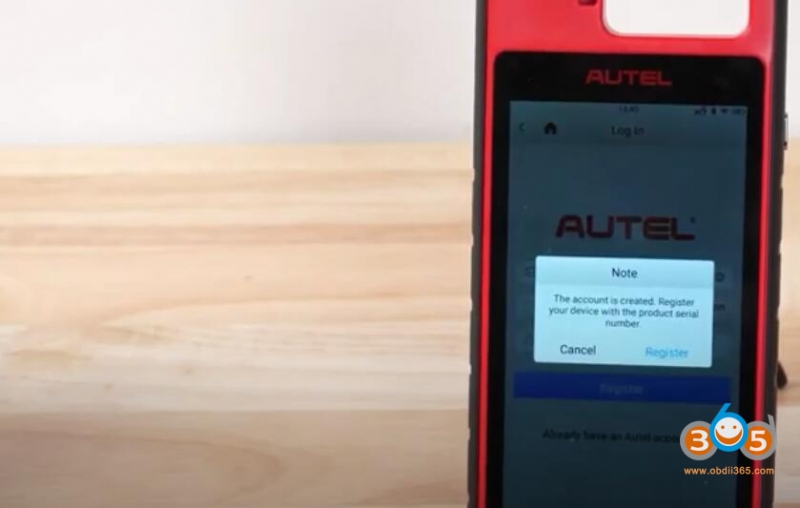

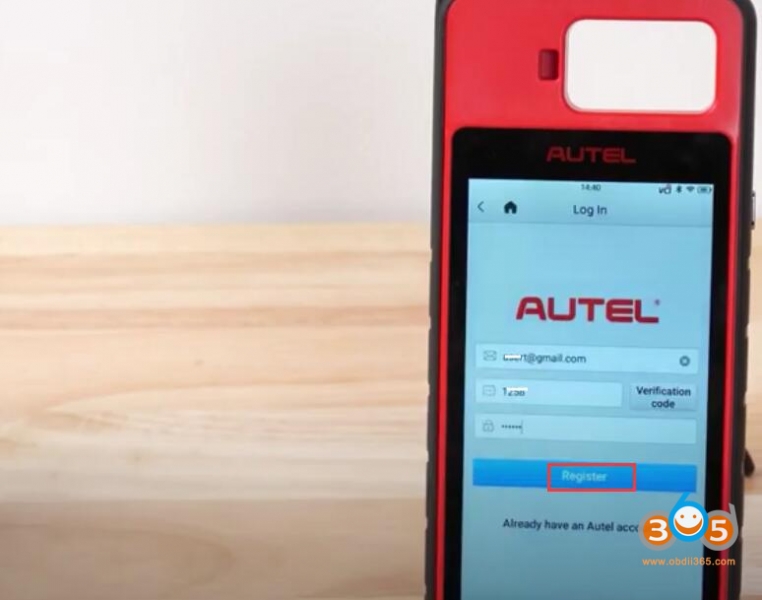

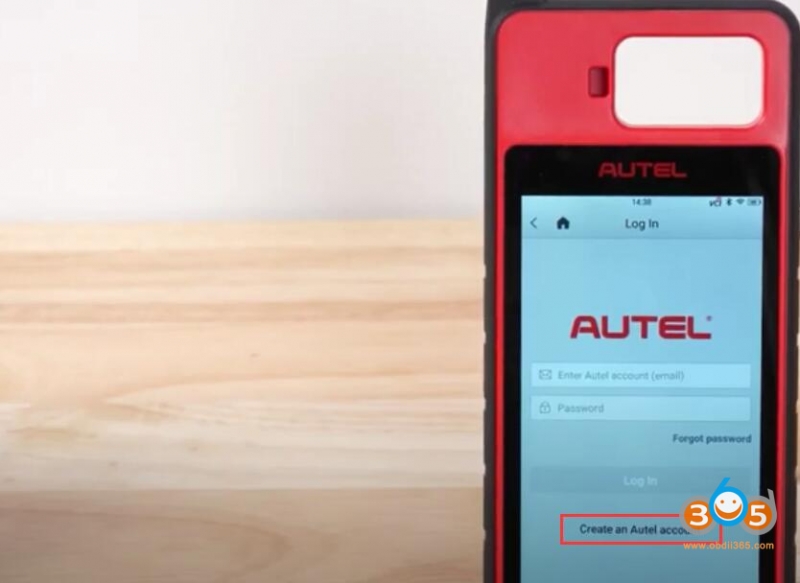

If you don’t have an Autel account, register Autel account with email, and password

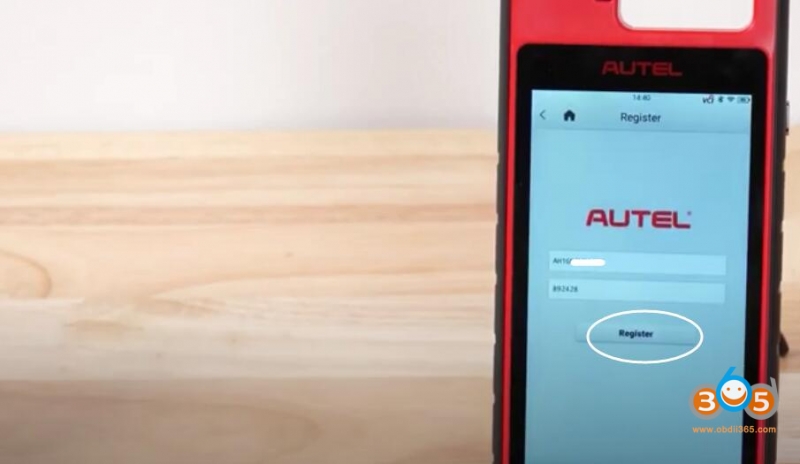

If have Autel account, login and register KM100 with serial number
Part II: Update KM100

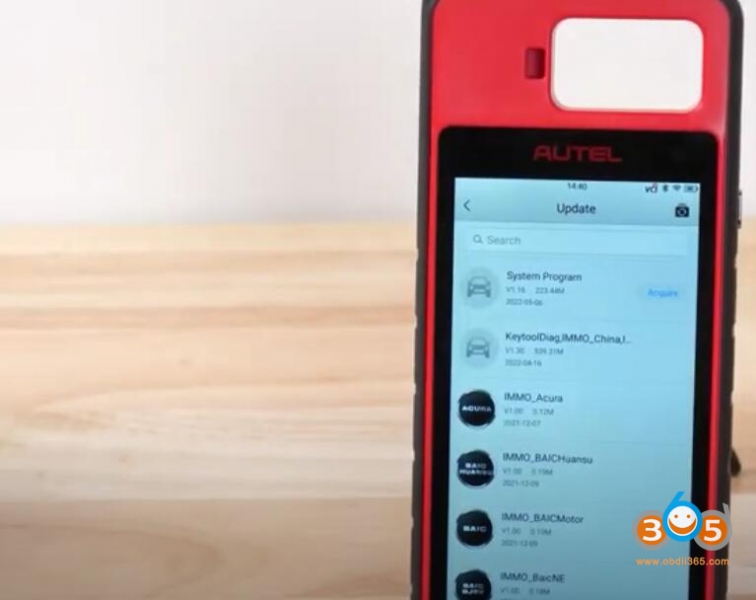

After registration, go to Home page-> Update
Download System Program
After it’s done, device will reboot automatically.
Back to “Update” again, download “KeytoolDiag”.
Then download all immo programs required.
Part III: Update PLC200 VCI Firmware

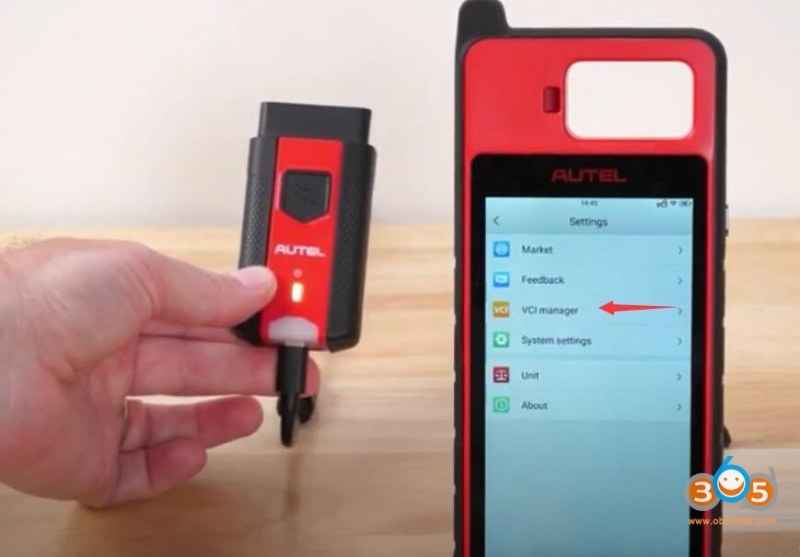

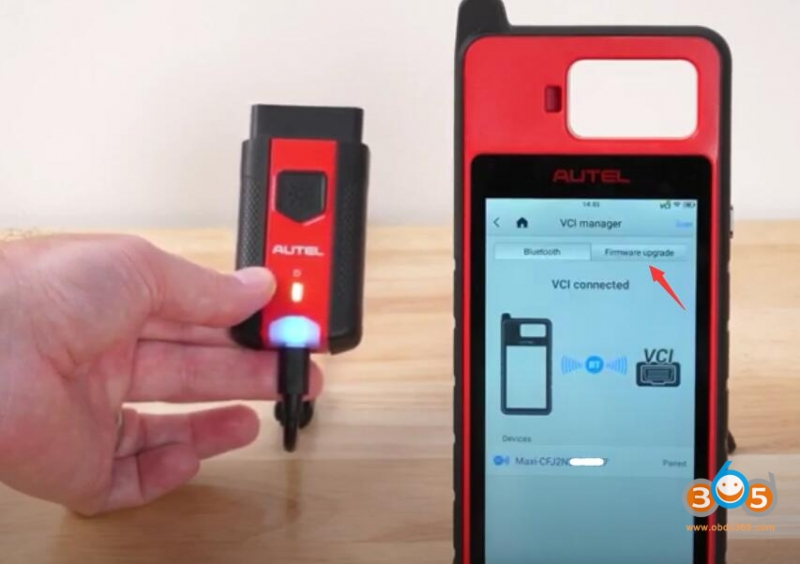

Back to “Settings”, and select “VCI manager”.

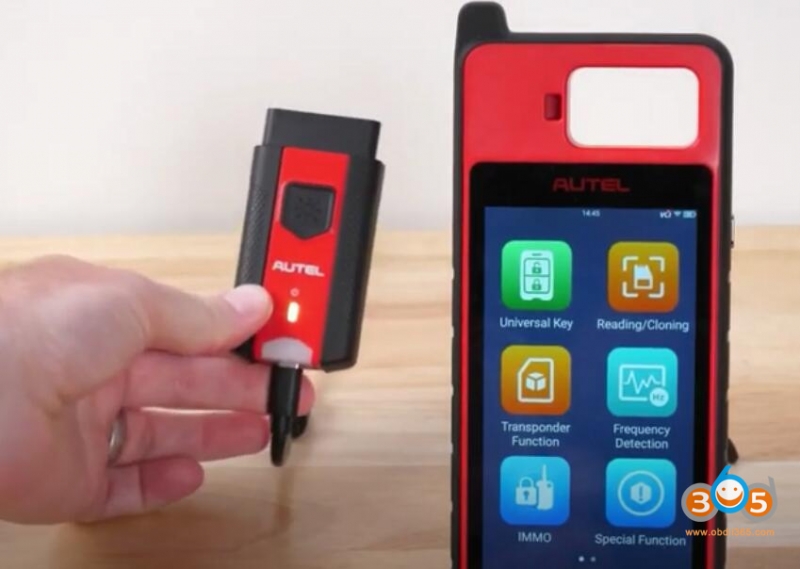

Connect VCI to device by USB cable.

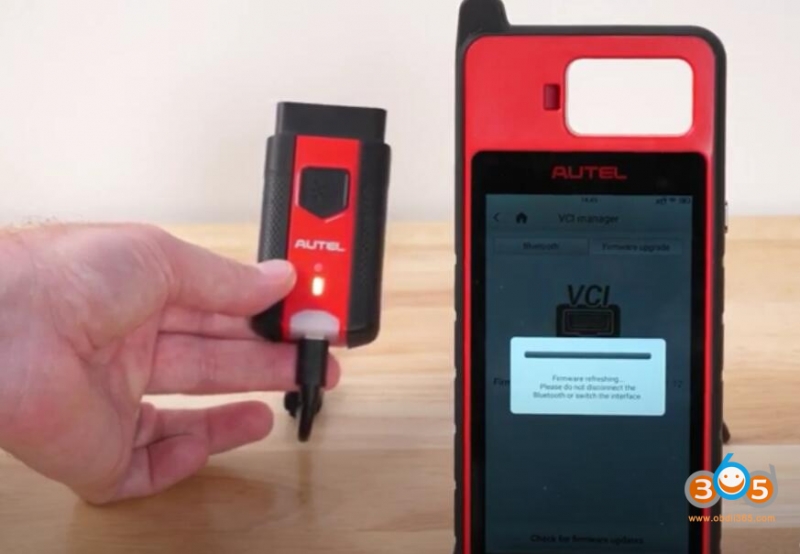

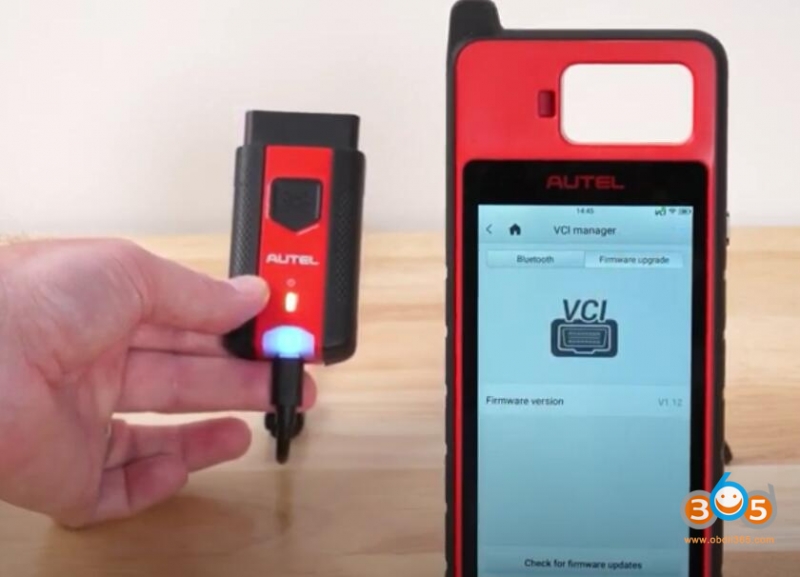

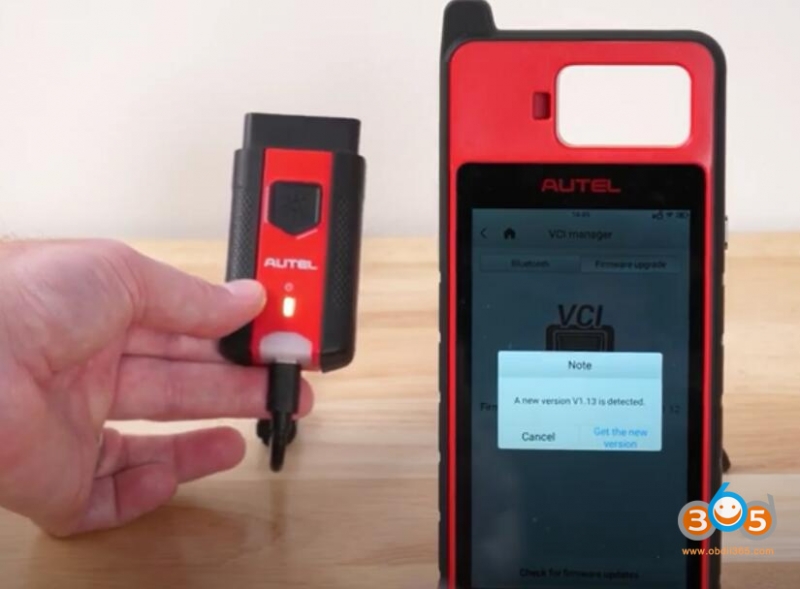

Switch to “Firmware upgrade” and update firmware if there is one available.
Done.
