Autel MaxiIM KM100 immo programming is very impressive. With PLC 200 you can go directly into programming. Here is a little walk thru on 2019+ toyota/lexus flip all keys lost programming. Preparation: Obtain the rolling codes from a third party. Procedure: This is a Corolla 2020yr
This car has a key but the remote stopped working when I inspected the remote. The back was so far damaged I couldn’t repair it.

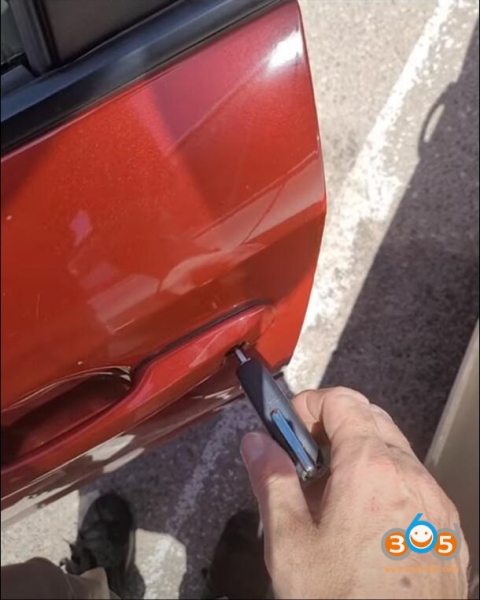

turn the key to the unlocked position watch that passenger door lock

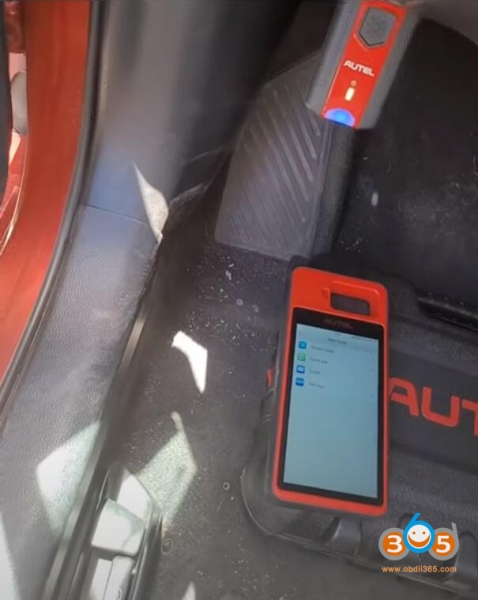

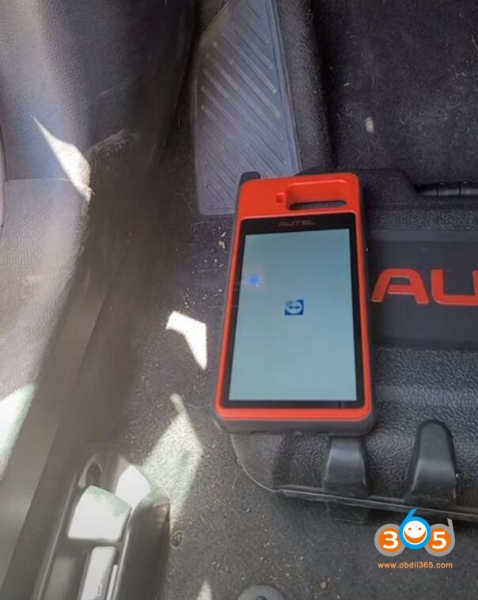

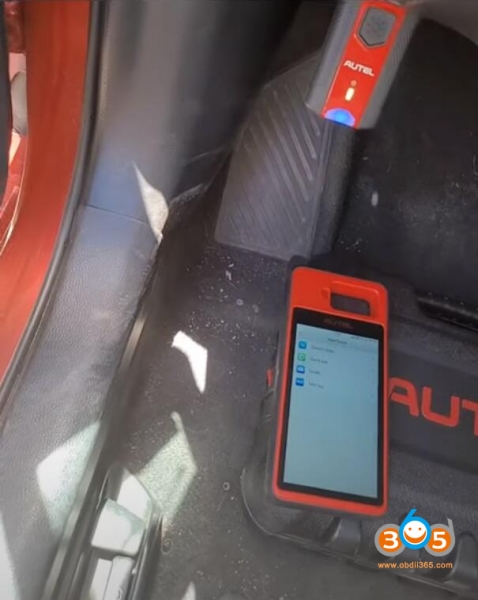

connect PLC200 dongle with vehicle via OBD and pair PLC200 with KM100 via Bluetooth
I gonna do the remote desktop and i will go and log on to that

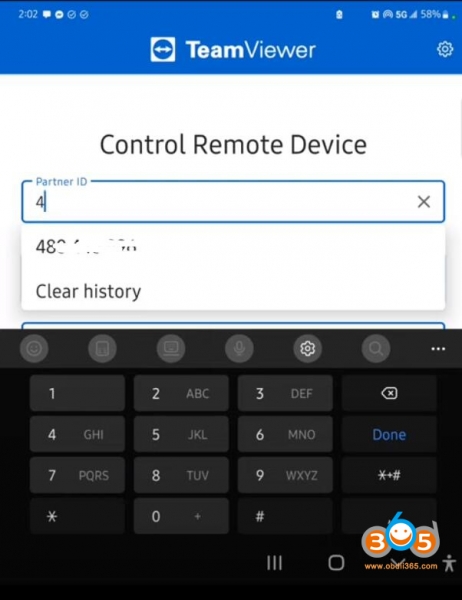

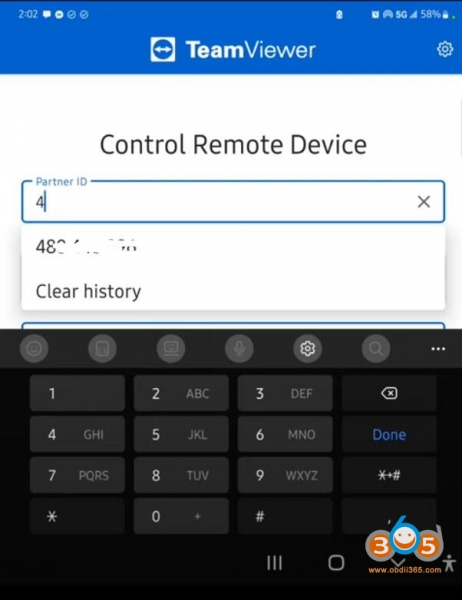

hit the teamviewer id to allow access and now we have control
even though we have a key i want to see if it does all keys are lost.
we are going to do it as all keys lost

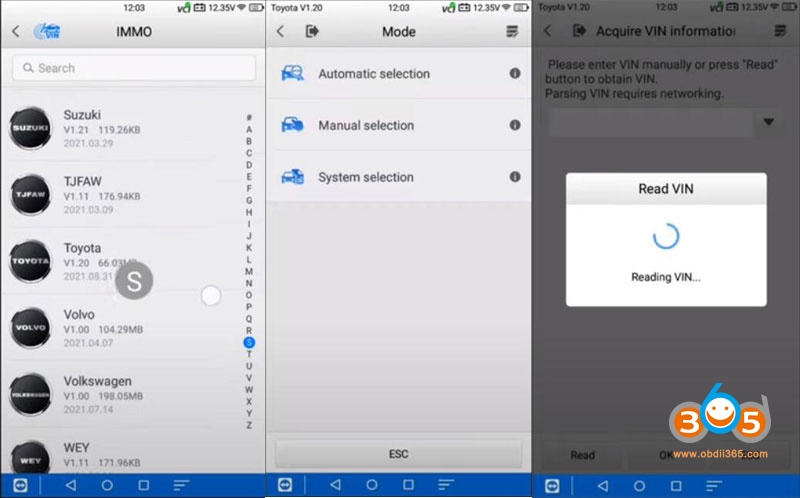

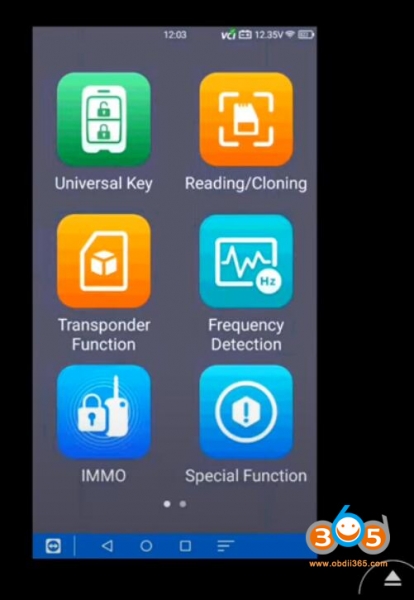

Go to IMMO function- Toyota

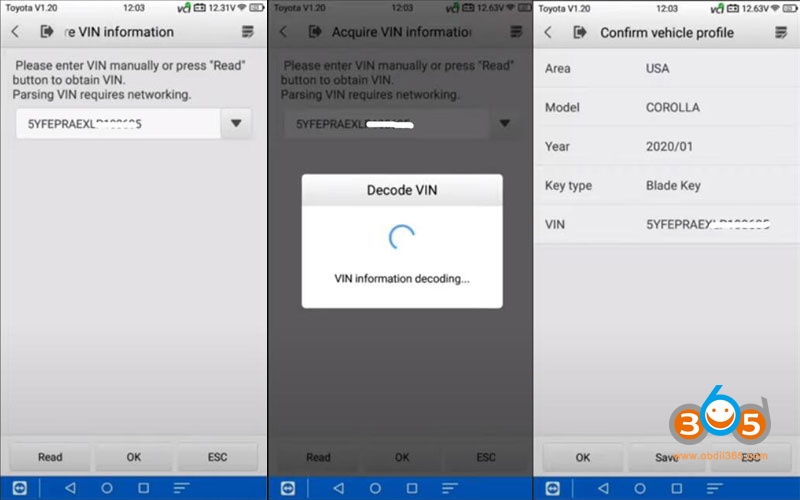

Auto scan VIN very fast

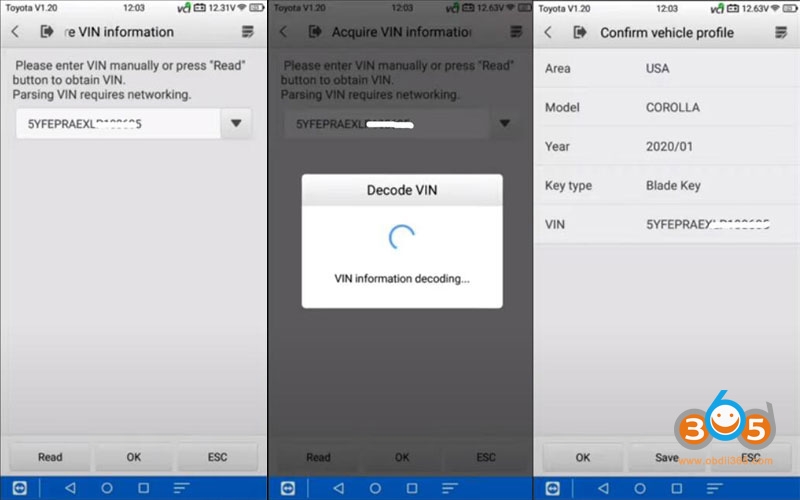

Decode VIN and check vehicle information, it is a Corolla 2020
see it is 2020

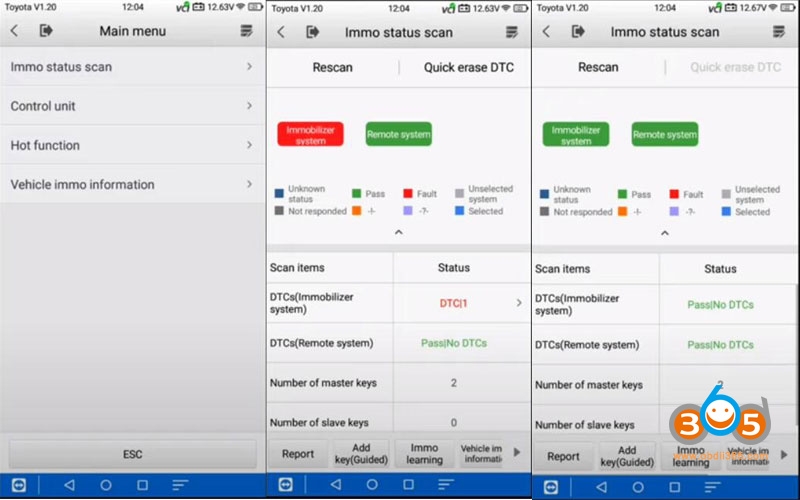

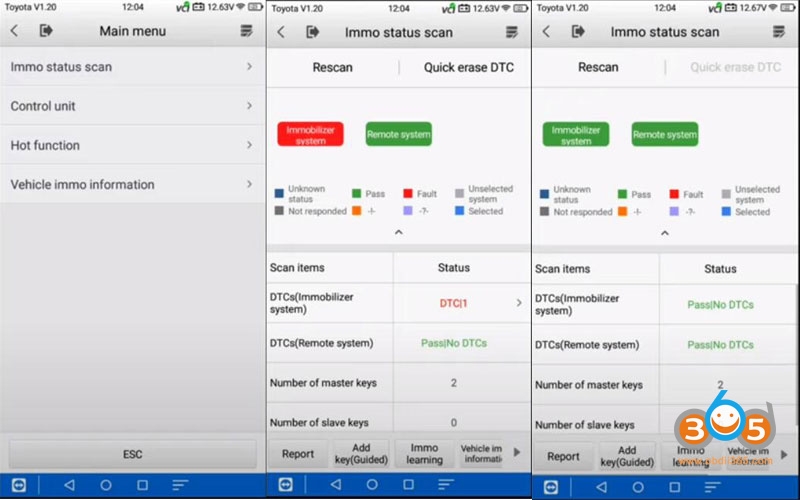

Immo status scan
Autel KM100 says one DTC in the immobilizer
we go head and do the quick erase up on the top right there
You don’t have DTCs when you are programming key on this car.

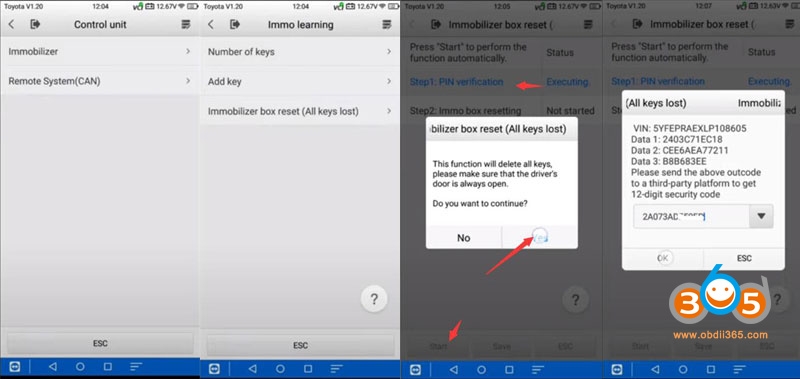

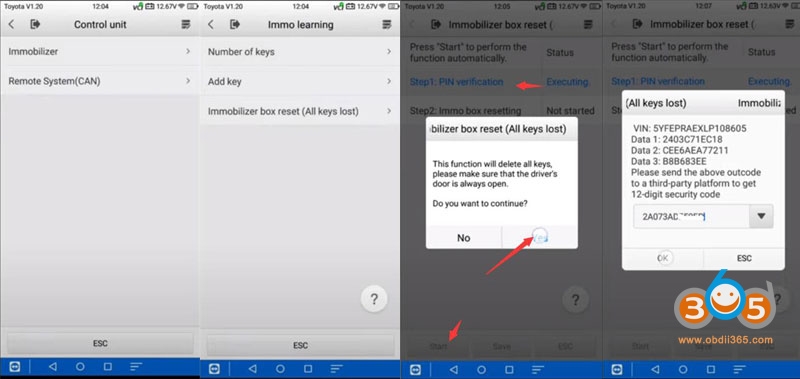

Go into Immo Learning- Immobilizer – Immobilizer Reset (all keys lost)
The driver’s door is open

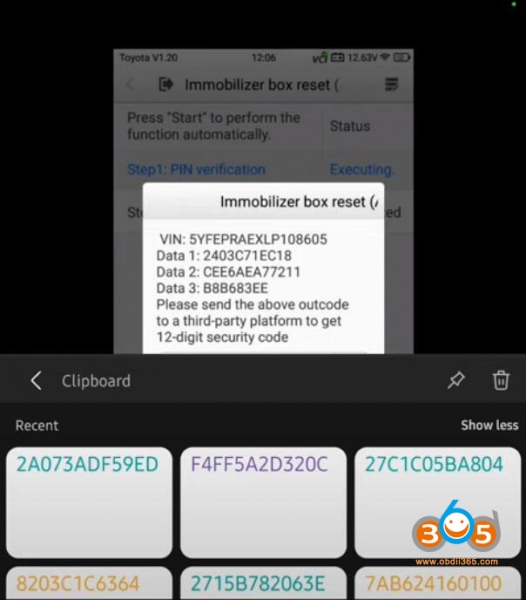

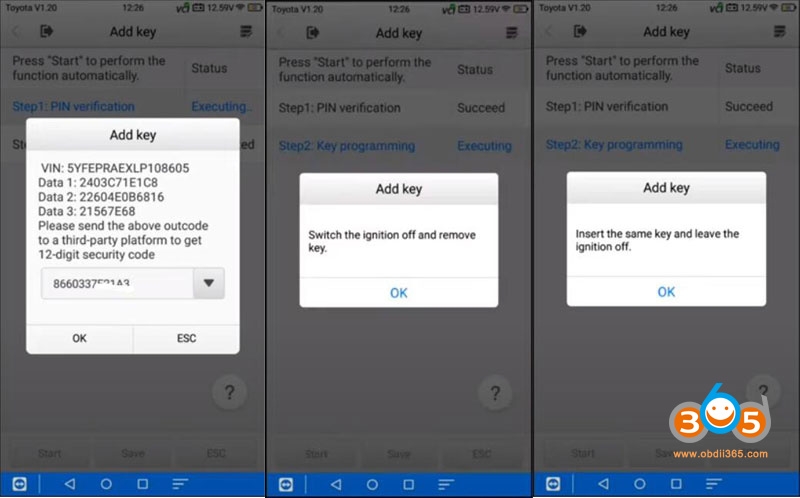

Copy and paste rolling code here
go ahead and hit OK

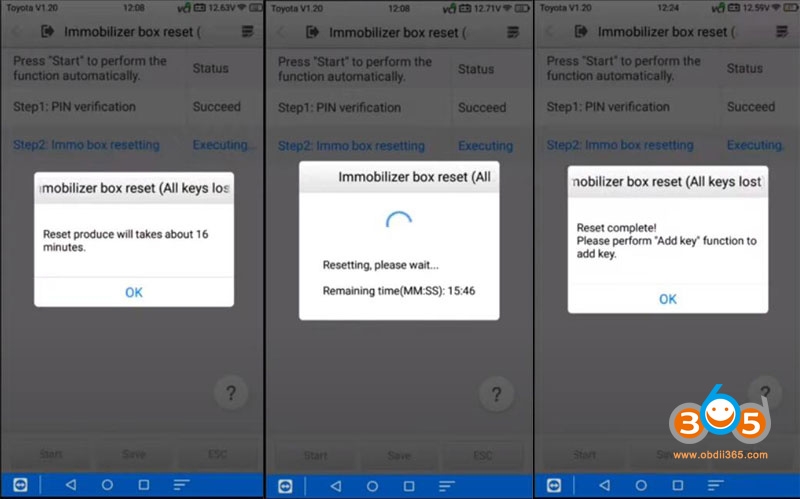

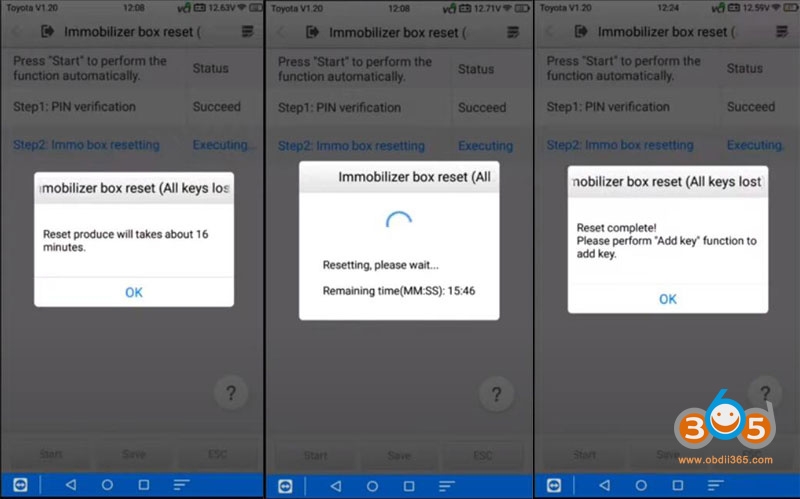

it’s gonna take 16 minutes to reset immobilizer so we’re going to hit ok turn it off, remove the key and turn it back on
it should do the 16 minute countdown
so pretty cool.

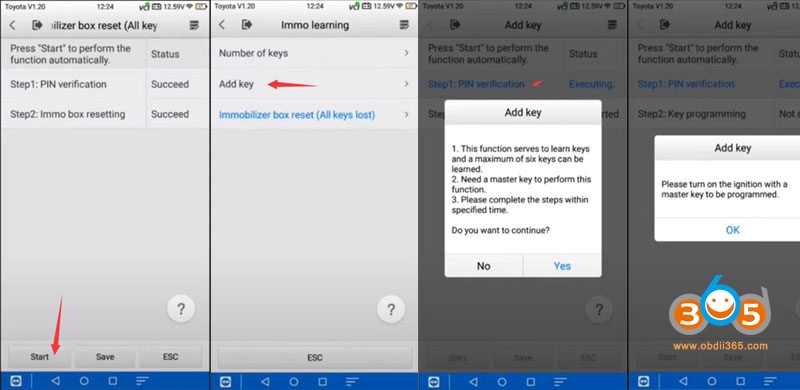

Go back let’s do the add key
Turn ignition on with a master key

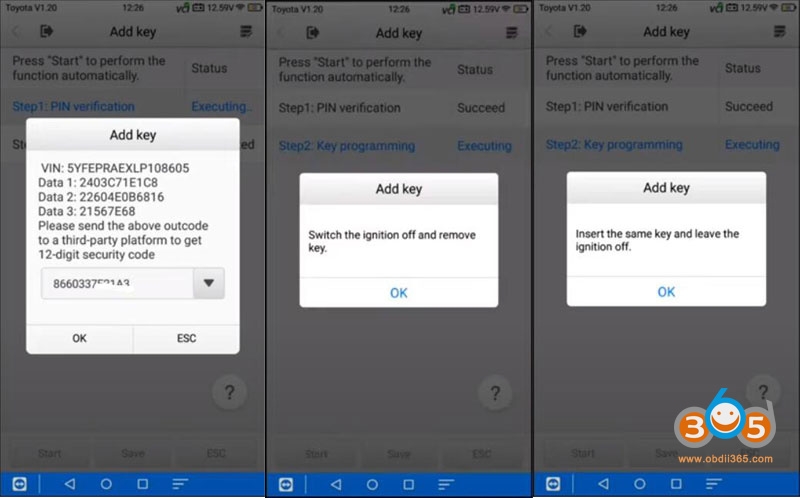

we input the password
switching off remove the key

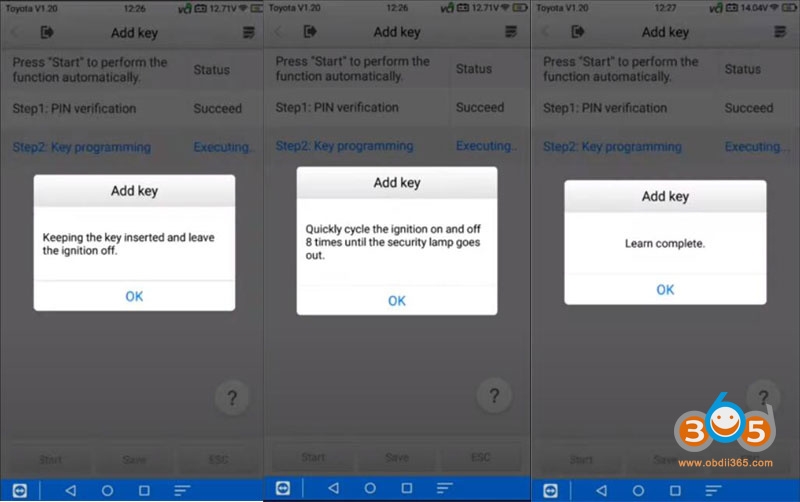

Insert the smae key and leave ignition off
Leave the ignition off

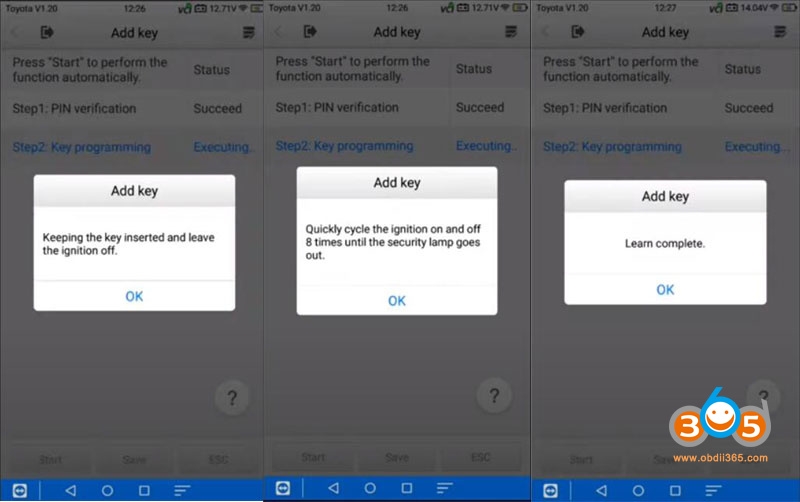

cycle the key on and off eight times
car starts ok
this thing works for that
let’s go and do the remote side
hold Lock and unlock
let go and hit unlock
there you go

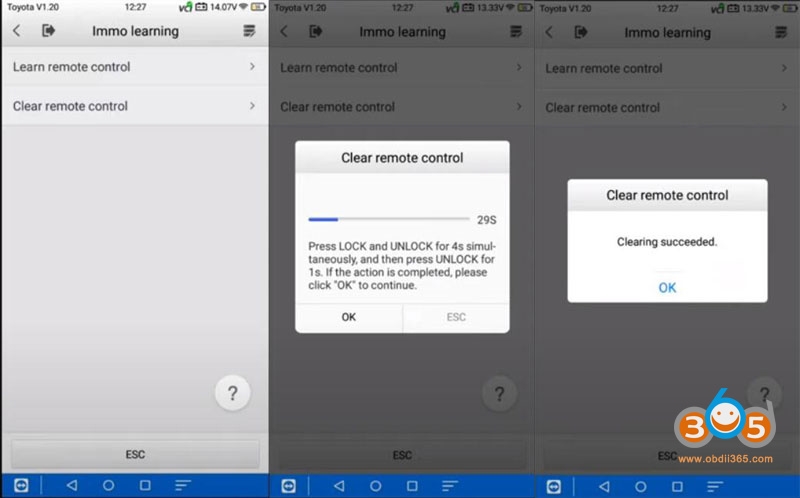

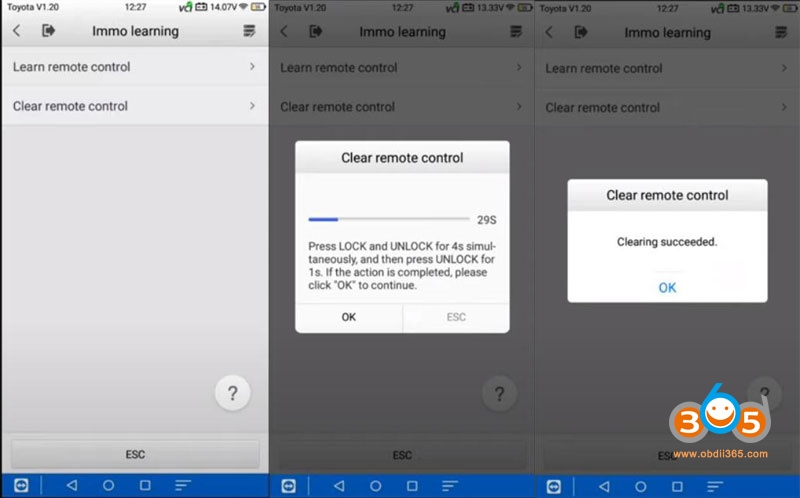

we’re clearing the remotes
and we’re programming the new one at the same time
That’s it pretty quick still 16 minutes plus remote program, nothing different
just for $500 you can do this car and a bunch more.
You can use it instead of im508 im608 on many vehicles to program keys as it’s simple and easy to pack/unpack and compact, it’s convenient.
