Today I will show you how to use Autel MaxiIM IM608 to perform ES350 key unlocking and
programming.

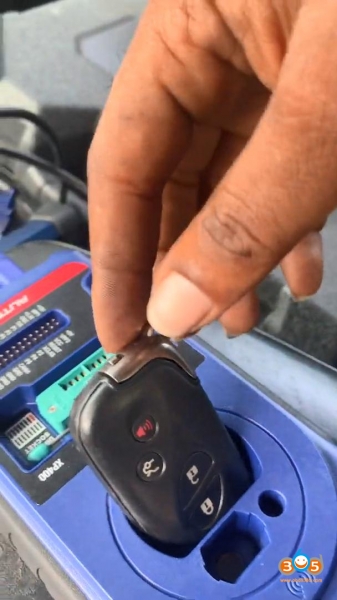

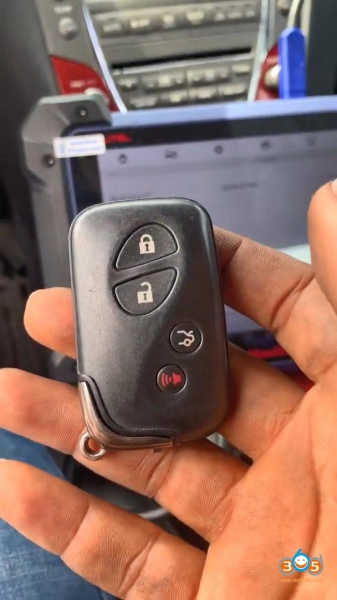

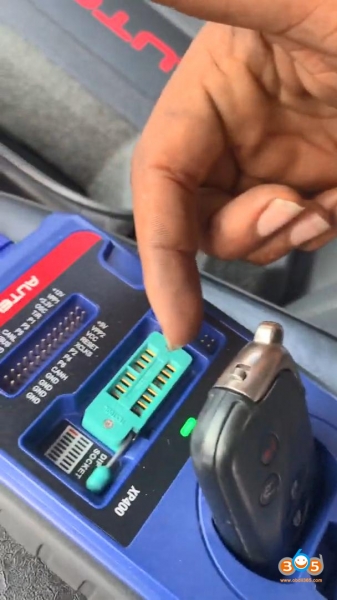

I just got a used key, I connected XP400 to the Autel IM608 and Gbox2.
Part 1. Unlock the used key using Autel IM608

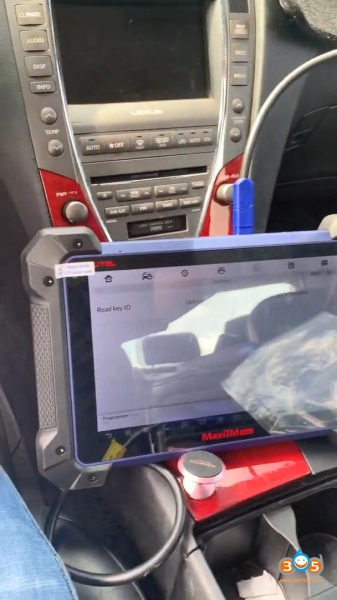

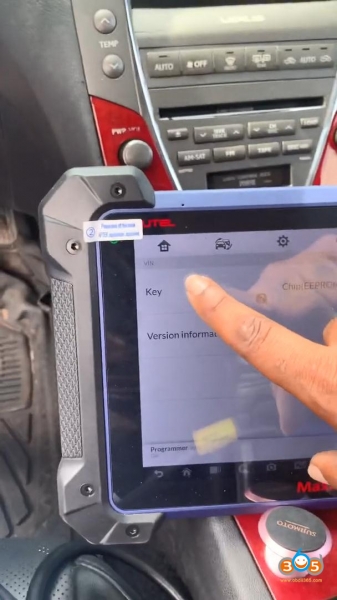

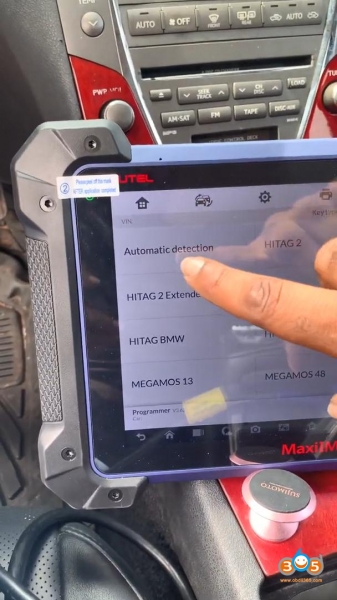

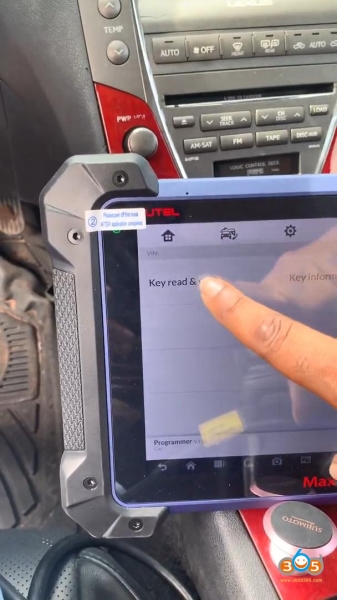

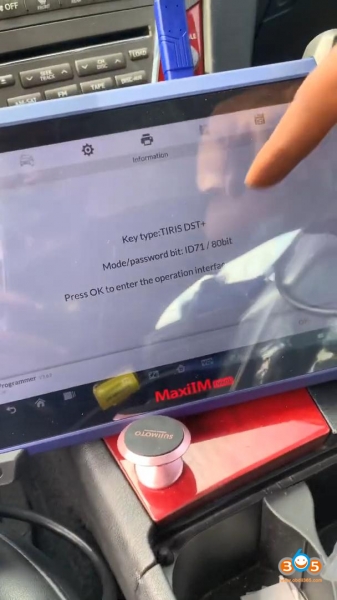

On Autel IM608, go to “Programmer” , then “Key”, then “Key Read & write” , then “Automatic detection” (if failed, please do it again ), alright, read out the key type: Tiris DST+, Mode /password bit: ID71/80bit.

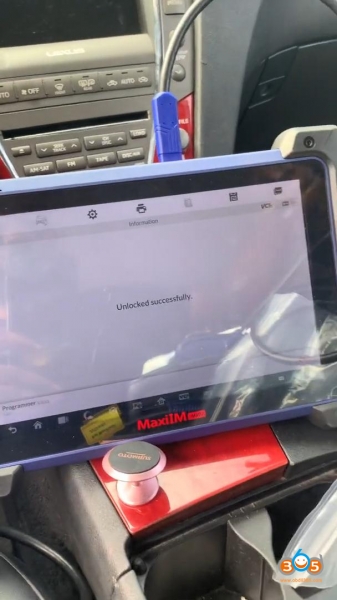

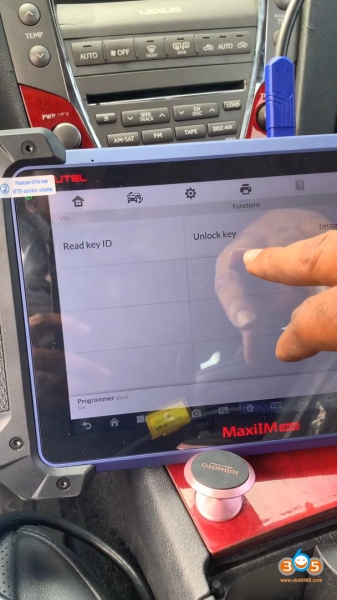

Press OK to enter the operation interface of key type, just go back to select ” Tiris DST 4D”, then “Unlock Key”, click “OK” after unlocked successfully.
Part 2. Program a new key using Autel IM608

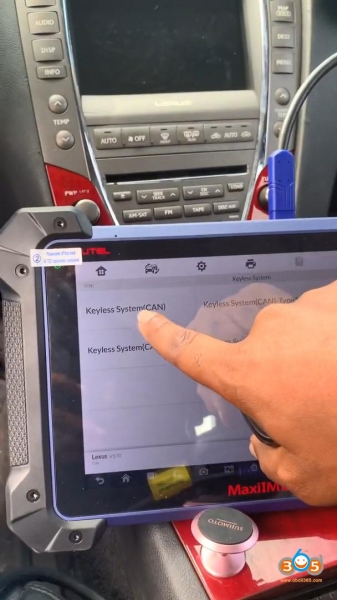

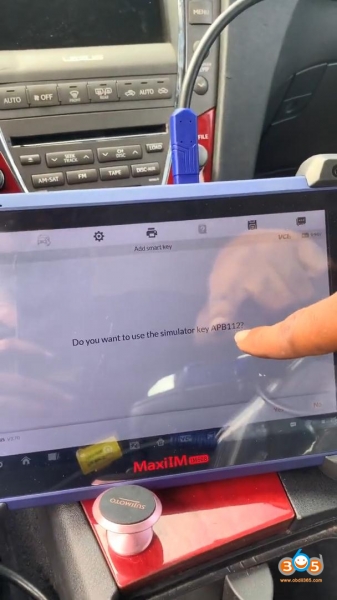

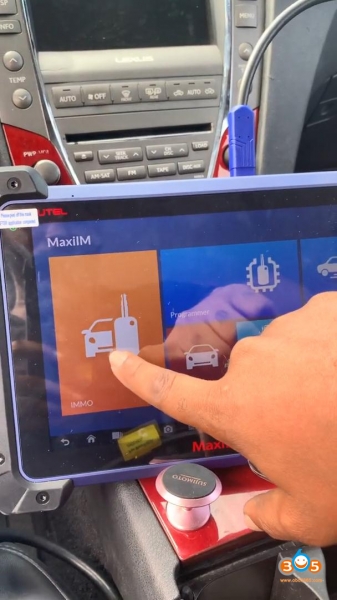

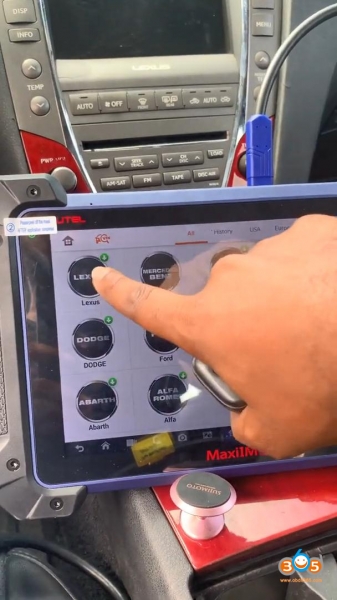

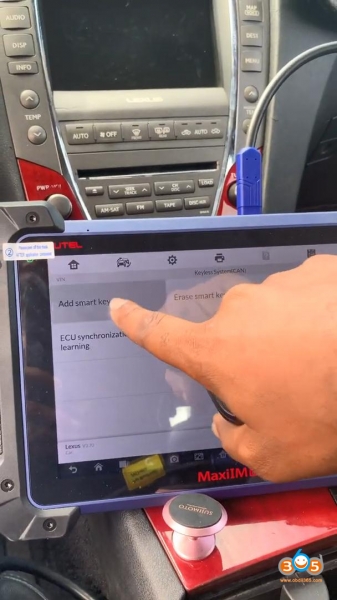

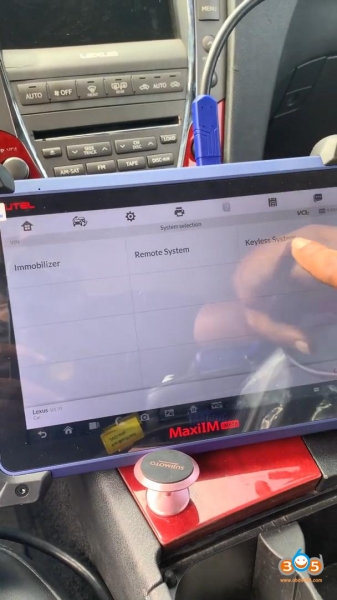

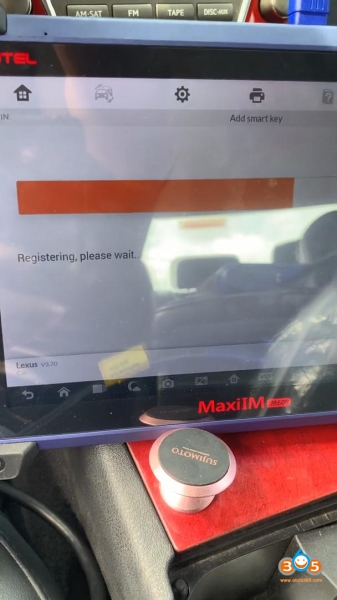

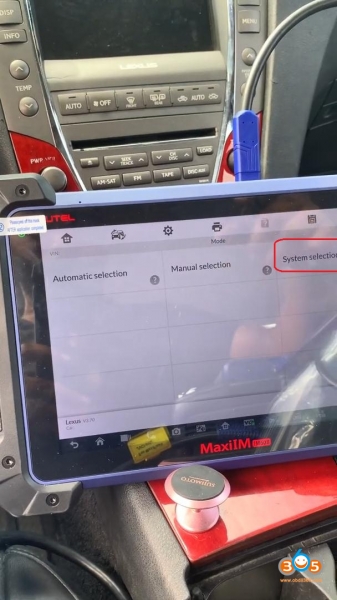

Back to the home menu and select “IMMO”, then “Accept”, then “Lexus”, then “System Selection”, then “Keyless system”, then “Keyless System (CAN)”, then “Add smart key”, click “OK” to confirm we want to use the simulator key APB112.

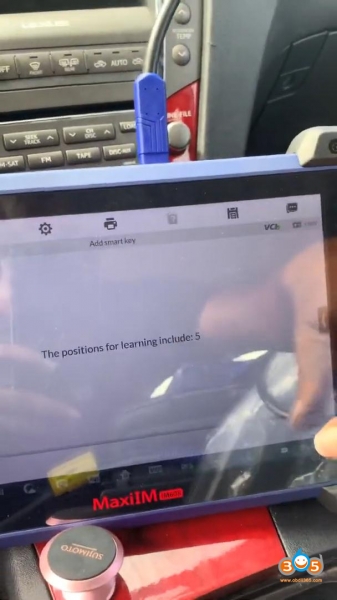

The positions for learning include:

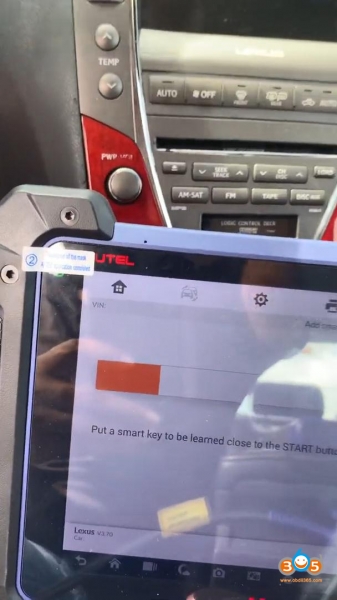

Put a smart key to be learned close to the START button.

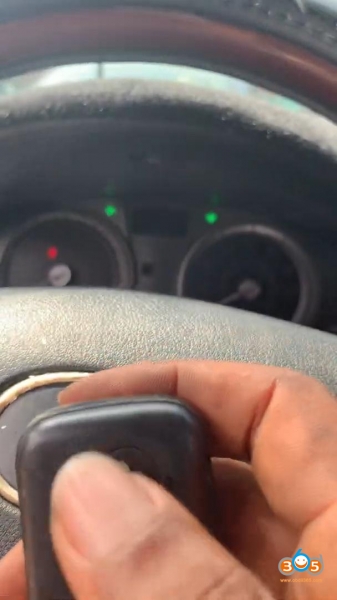

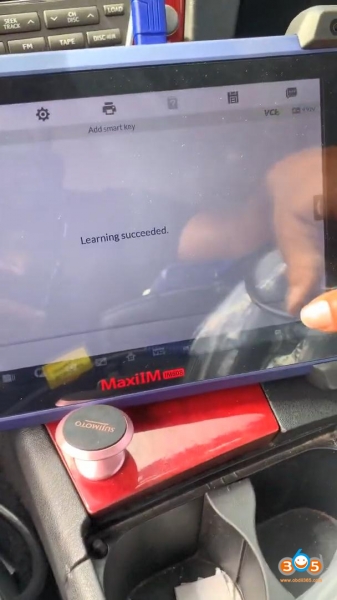

Alright, test the key can start the Lexus ES350 now.
Autel IM608 did a great job!
