How to Add Honda ADV Motorcycle Key with OBDSTAR X300 DP Plus/MS80?

Here is the instruction on adding a new Honda ADV Motorcycle Key with OBDSTAR tools.

Tool required

OBDSTAR MS80 motorcycle diagnostic tool

OBDSTAR X300 DP Plus/X300 Pro4 with Motor IMMO license and adapter

Procedure:

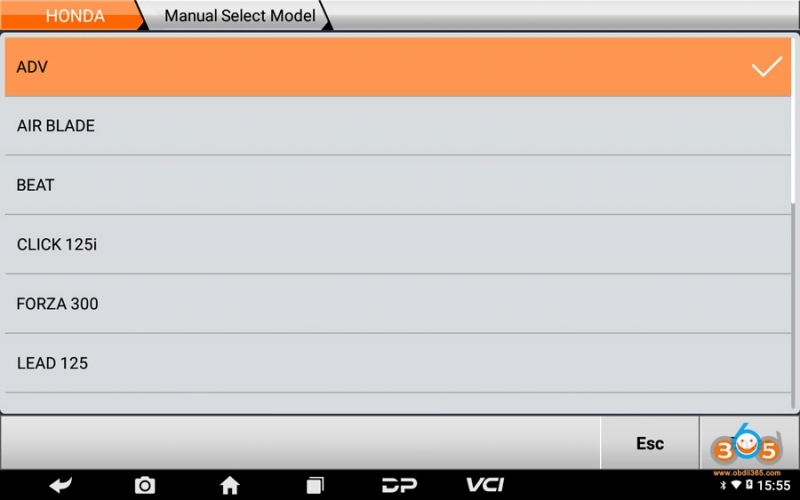

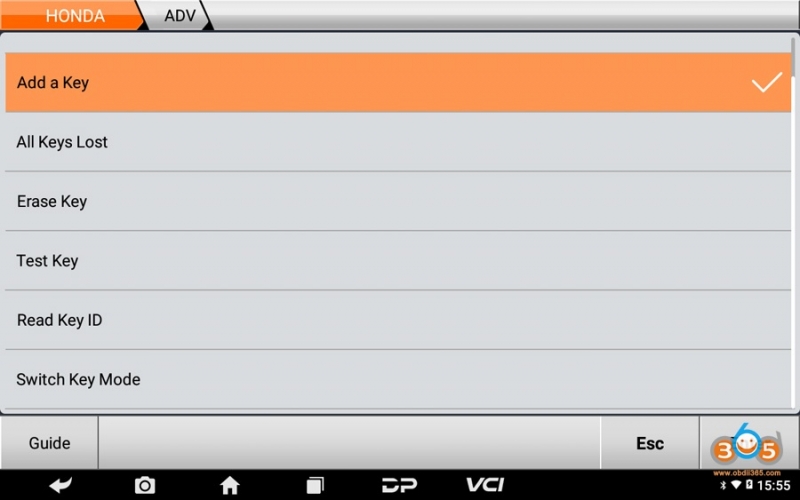

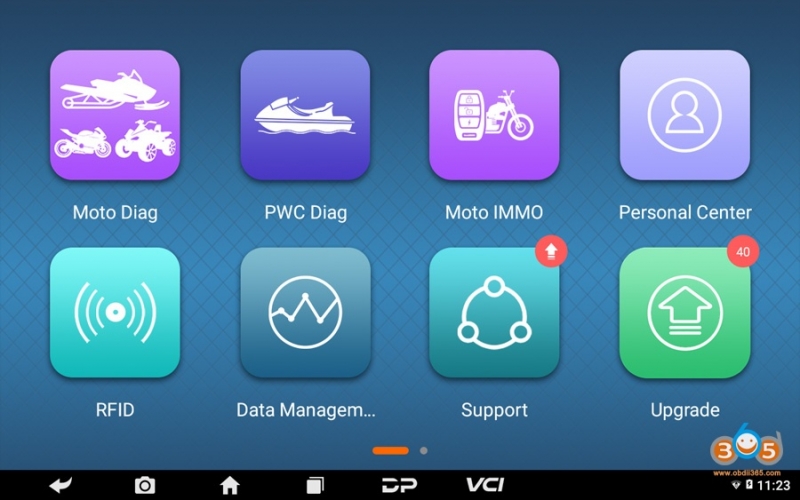

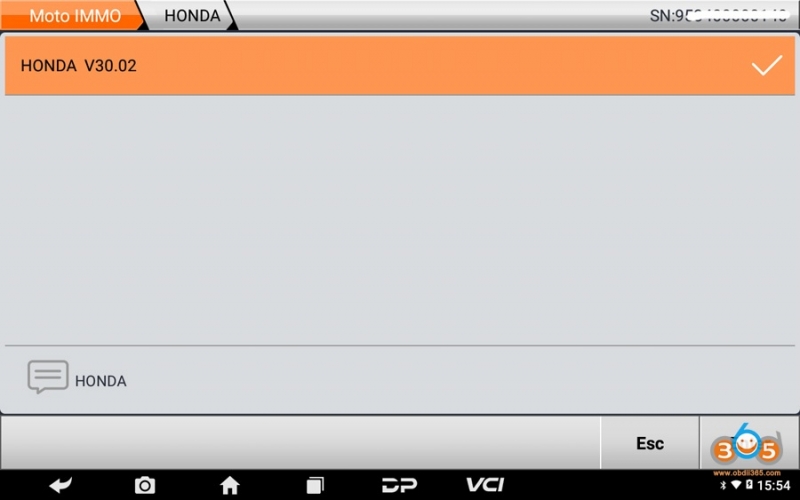

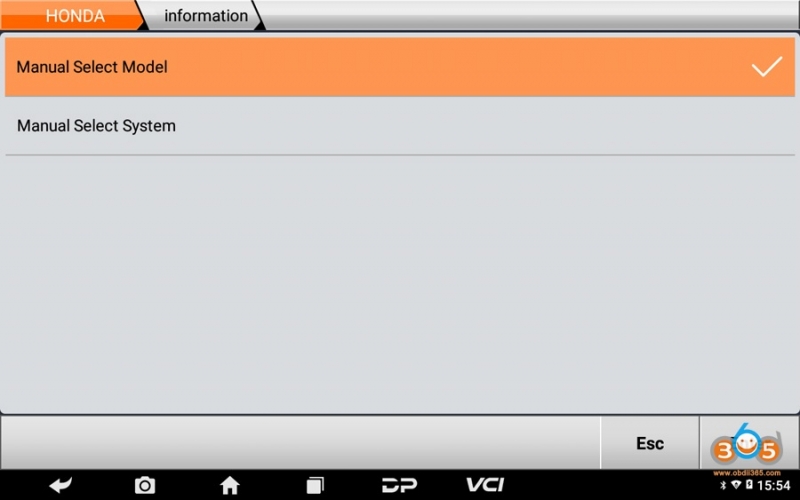

1.Connect MS80/X300 Pada to Motorcycle, go to Moto IMMO function – ALL – Honda – select latest Honda software version – Manual Select Model- ADV- Add a key

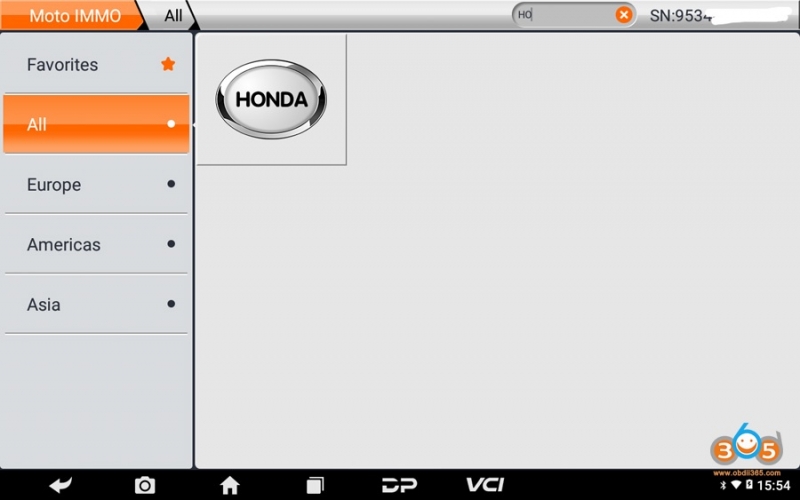

Tips: by searching keywords, find out related models quickly.

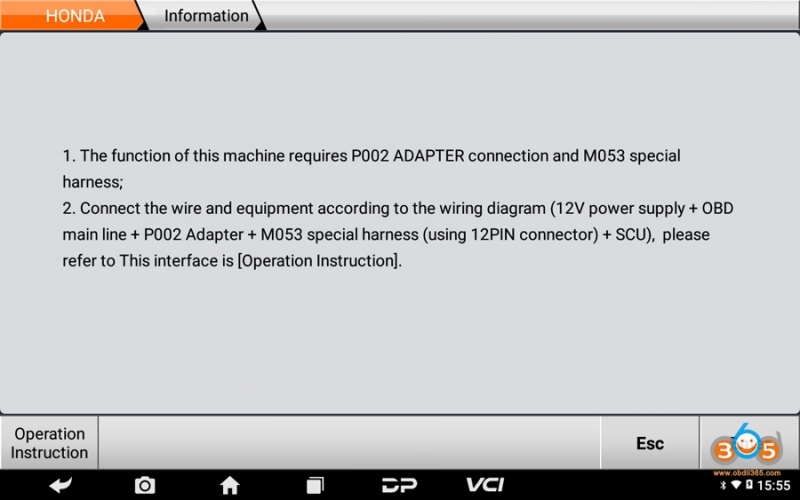

Connect OBDSTAR pad with motorcycle via P002 adapter and MM053 special harness

Press Enter

Tips: press Operation Instruction to check operation steps;

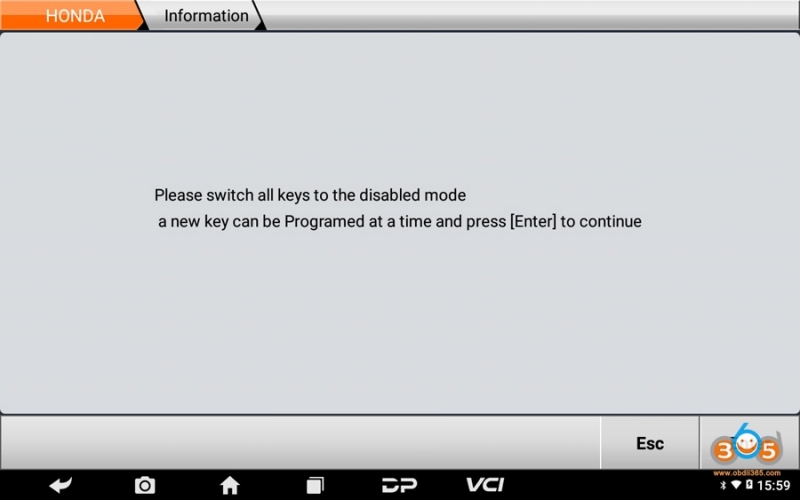

Switch all keys to the disable mode, click Enter;

Tips: within help data files of Switch Key Mode in ADV menu.

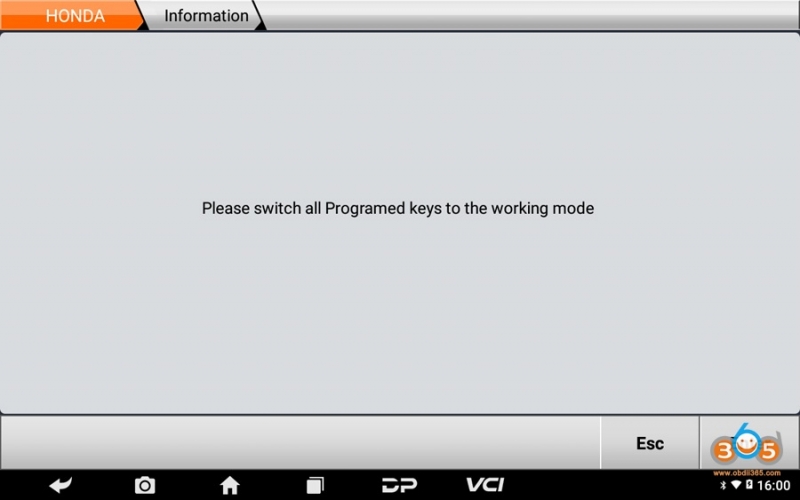

Switch all programed keys to the working mode, click Enter;

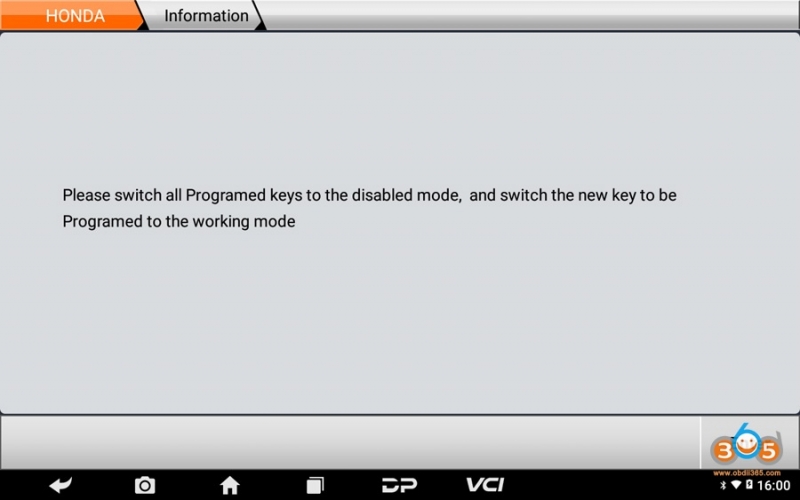

Switch all programed keys to the disabled mode, and switch the new key to be programmed to the working mode, click Enter;
