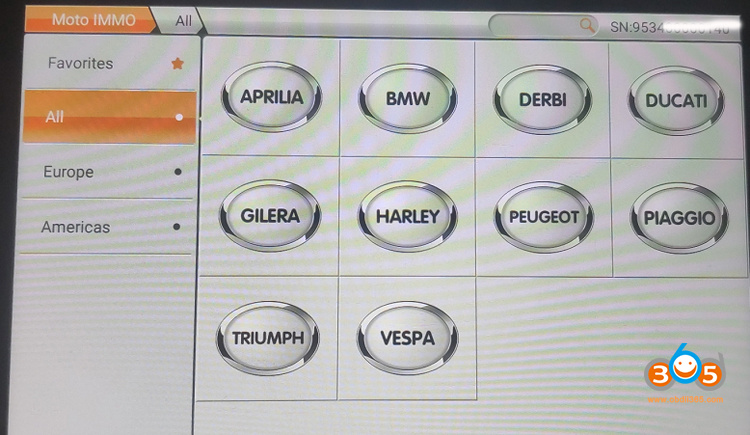

A lot of people ask if the OBDTAR MS80 motorcycle diagnostic system will make motor keys?
Yes, OBDSTAR released new software upragde adding add key and all keys lost programming for BMW, DERBI, Aprilia, Ducati, Gilera, Harley, Peugeot, Piaggio, Triumph, Vespa motors. More motor brands and models will be released continuously.

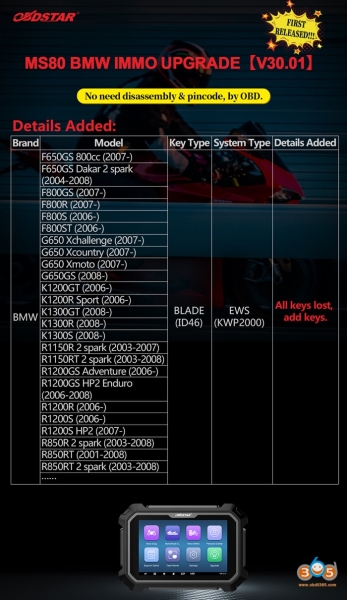

MS80 BMW IMMO UPGRADE [V30.01]
No need disassembly and pin code. via OBD directly.
Key Type: Blade ID46
System type: EWS (KWP2000)
Supports both Add Key and All Keys Lost
Supported BMW Motors
| F650GS 800cc (2007-) |
| F650GS Dakar 2 spark (2004-2008) |
| F800GS (2007-) |
| F800R (2007-) |
| F800S (2006-) |
| F800ST(2006-) |
| G650Xchallenge (2007-) |
| G650 Xcountry (2007-) |
| G650Xmoto(2007-) |
| G650GS (2008-) |
| K1200GT(2006-) |
| K1200R Sport (2006-) |
| K1300GT(2008-) |
| K1300R(2008-) |
| K1300S(2008-) |
| R1150R 2 spark (2003-2007) |
| R1150RT 2 spark (2003-2008) |
| R1200GS Adventure (2006-) |
| R1200GS HP2 Enduro (2006-2008) |
| R1200R(2006-) |
| R1200S (2006-) |
| R1200S HP2 (2007-) |
| R850R 2 spark (2003-2008) |
| R850RT (2001-2008) |
| R850RT 2 spark (2003-2008) |

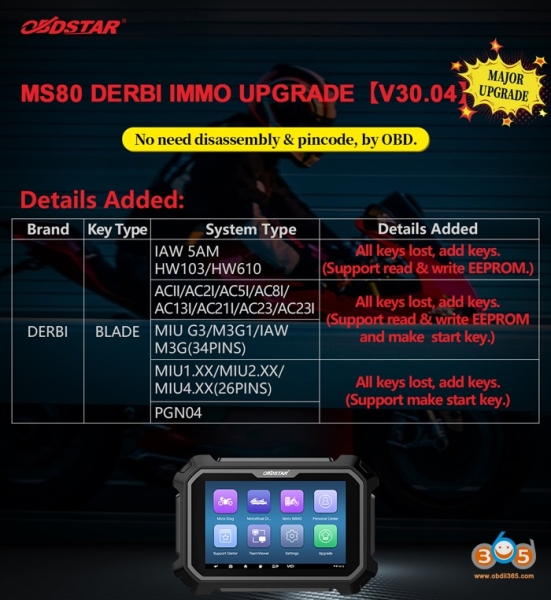

MS80 Derbri IMMO Update V30.04
No need disassembly and pin code. via OBD directly.
Models:
IAW 5AM HW103/HW610: all keys lost, add keys (read & write EEPROM)
ACII/AC2I/AC5I/AC8I/ AC13I/AC211/AC23/AC23I: all keys lost, add keys (read & write EEPROM)
MIU G3/M3G1/IAW/M3G(34PINS): all keys lost, add keys (read & write EEPROM)
MIU1.XX/MIU2.XX/MIU4,XX(26PINS): All keys lost, add keys (make start key)
PGN04: All keys lost, add keys (make start key)

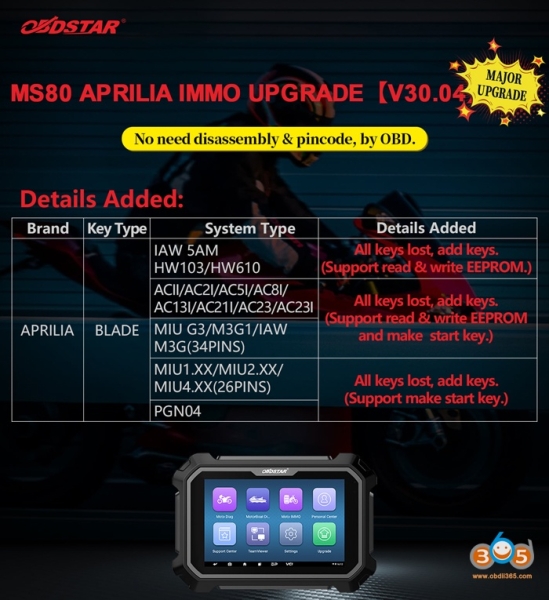

OBDSTAR MS80 Aprilia IMMO Update V30.04
No need disassembly and pin code. via OBD directly.
Blade key
| System Type | No Need PinCode | Add Keys | All key Lost | Other Function |
| ACII/AC2I/AC5I/AC8I/AC13I/AC21I/AC23/AC23I | ✔ | ✔ | ✔ | Make Start Key Advanced Functions Read EEPROM(ST7 INTERNAL) Read EEPROM( EXTERNAL 95040) Write EEPROM(ST7 INTERNAL) Write EEPROM(EXTERNAL 95040) ECU Reset(Virgin) |
| IAW 5AM_HW103/HW610 | ✔ | ✔ | ✔ | Diagnostic Connector Mode Read EEPROM (95160) Write EEPROM (95160) BENCH Mode Read EEPROM (95160) Write EEPROM (95160) ECU Reset(Virgin) |
| MIU1.XX/MIU2.XX/MIU4.XX(26PINS) | ✔ | ✔ | ✔ | Make Start Key |
| MIU G3/M3G1/IAW M3G(34PINS) | ✔ | ✔ | ✔ | Make Start Key ECU Reset(Virgin) Read 95320 EEPROM (Backup) Write 95320 EEPROM (Restore) ECU Reset(Virgin) |
| PGN04 | ✔ | ✔ | ✔ | Make Start Key |
Ducati Motorcycle immo key programming list
| Brand | Area | Model | Key Type | Year | No Need PinCode | Add Keys |
| DUCATI | EUROPE | Diavel EU3 | IMMOBILIZER | 2011- | ✔ | ✔ |
| DUCATI | EUROPE | Diavel EU4 (NO USA / CHINA) | IMMOBILIZER | 2016- | ✔ | ✔ |
| DUCATI | EUROPE | Multistrada 1200 | IMMOBILIZER | 2010- | ✔ | ✔ |
| DUCATI | EUROPE | Multistrada 1200 ABS | IMMOBILIZER | 2010-2014 | ✔ | ✔ |
| DUCATI | EUROPE | Multistrada 1200 D-Air | IMMOBILIZER | 2014- | ✔ | ✔ |
| DUCATI | EUROPE | Multistrada 1200 Enduro | IMMOBILIZER | 2016- | ✔ | ✔ |
| DUCATI | EUROPE | Multistrada 1200 Pikes Peak | IMMOBILIZER | 2015- | ✔ | ✔ |
| DUCATI | EUROPE | Multistrada 1200 S/T | IMMOBILIZER | 2010- | ✔ | ✔ |
| DUCATI | EUROPE | XDiavel | IMMOBILIZER | 2016- | ✔ | ✔ |
PIAGGIO Motorcycle IMMO Programming List
All blade key
| Model | System Type | No Need PinCode | Add Keys | All key Lost | Other Function |
| ACI100 | ✔ | ✔ | ✔ | Read EEPROM (MC68HC05E6) Write EEPROM (MC68HC05E6) |
|
| ACI500/501/502/503/504/505 | ✔ | ✔ | ✔ | Read EEPROM (MC68HC05E6) Write EEPROM (MC68HC05E6) |
|
| ACI600/601/602/603/604/605/606 | ✔ | ✔ | ✔ | Read EEPROM (MC68HC05E6) Write EEPROM (MC68HC05E6) |
|
| FLY LIBERTY |
ACII/AC2I/AC5I/AC8I/AC13I/AC21I/AC23/AC23I | ✔ | ✔ | ✔ | Make Start Key Advanced Functions Read EEPROM(ST7 INTERNAL) Read EEPROM( EXTERNAL 95040) Write EEPROM(ST7 INTERNAL) Write EEPROM(EXTERNAL 95040) ECU Reset(Virgin)(Virgin) |
| FLY 125 FLY 150 FLY 125 FLY 150 LIBERTY 125 LIBERTY 150 LIBERTY 125 LIBERTY 150 |
AC19I/AC20I/AC27I | ✔ | ✔ | ✔ | Make Start Key Advanced Functions Read EEPROM (INTERNAL 95080) Write EEPROM (INTERNAL 95080) ECU Reset(Virgin)(Virgin) |
| FLY 125 FLY 150 FLY 125 FLY 150 LIBERTY 125 LIBERTY 150 LIBERTY 125 LIBERTY 150 |
AC24I/AC25I/AC32I | ✔ | ✔ | ✔ | Make Start Key Advanced Functions Read EEPROM (INTERNAL 95080) Write EEPROM (INTERNAL 95080) ECU Reset(Virgin)(Virgin) |
| IAW 15 | ✔ | ✔ | ✔ | Make Start Key Advanced Functions Read EEPROM (MC68HC11F1) Write EEPROM (MC68HC11F1) ECU Reset(Virgin)(Virgin) |
|
| IAW 5AM_HW103/HW610 | ✔ | ✔ | ✔ | Diagnostic Connector Mode Read EEPROM (95160) Write EEPROM (95160) BENCH Mode Read EEPROM (95160) Write EEPROM (95160) ECU Reset(Virgin)(Virgin) |
|
| IMM003/IMM006 | ✔ | ✔ | ✔ | Read EEPROM (MC68HC05E6) Write EEPROM (MC68HC05E6) ECU Reset(Virgin)(Virgin) |
|
| MIU1.XX/MIU2.XX/MIU4.XX(26PINS) | ✔ | ✔ | ✔ | Make Start Key | |
| BEVERLY 125 BEVERLY 300 BEVERLY 350 FLY 125 FLY 150 FLY 125 3V FLY 150 3V LIBERTY 150 3V X10 125 |
MIU G3/M3G1/IAW M3G(34PINS) | ✔ | ✔ | ✔ | Make Start Key ECU Reset(Virgin)(Virgin) Read 95320 EEPROM (Backup) Write 95320 EEPROM (Restore) ECU Reset(Virgin)(Virgin) |
| LIBERTY 125 3V LIBERTY 150 3V LIBERTY ABS |
PGN04/PGS02/PGS06/PGT01 | ✔ | ✔ | ✔ | Make Start Key |
| BEVERLY 125 BEVERLY 300 BEVERLY 350 FLY 125 FLY 150 FLY 125 3V FLY 150 3V LIBERTY 150 3V X10 125 |
RIU1 | ✔ | ✔ | ✔ | Make Start Key Advanced Functions Read EEPROM (95320) Write EEPROM (95320) ECU Reset(Virgin)(Virgin) |
Vespa Motorcycle key programming List
| Model | Key Type | Year | System Type | No Need PinCode | Add Keys | All key Lost | Other Function |
| BLADE | ACI100 | ✔ | ✔ | ✔ | Read EEPROM (MC68HC05E6) Write EEPROM (MC68HC05E6) |
||
| BLADE | ACI500/501/502/503/504/505 | ✔ | ✔ | ✔ | Read EEPROM (MC68HC05E6) Write EEPROM (MC68HC05E6) |
||
| BLADE | ACI600/601/602/603/604/605/606 | ✔ | ✔ | ✔ | Read EEPROM (MC68HC05E6) Write EEPROM (MC68HC05E6) |
||
| LX 125 LX 150 |
BLADE | ACII/AC2I/AC5I/AC8I/AC13I/AC21I/AC23/AC23I | ✔ | ✔ | ✔ | Make Start Key Advanced Functions Read EEPROM(ST7 INTERNAL) Read EEPROM( EXTERNAL 95040) Write EEPROM(ST7 INTERNAL) Write EEPROM(EXTERNAL 95040) ECU Reset(Virgin) |
|
| LX 125 LX 125 LX 150 LX 150 |
BLADE | AC19I/AC20I/AC27I | ✔ | ✔ | ✔ | Make Start Key Advanced Functions Read EEPROM (INTERNAL 95080) Write EEPROM (INTERNAL 95080) ECU Reset(Virgin) |
|
| LX 125 LX 125 LX 150 LX 150 |
BLADE | AC24I/AC25I/AC32I | ✔ | ✔ | ✔ | Make Start Key Advanced Functions Read EEPROM (INTERNAL 95080) Write EEPROM (INTERNAL 95080) ECU Reset(Virgin) |
|
| BLADE | IAW 15 | ✔ | ✔ | ✔ | Make Start Key Advanced Functions Read EEPROM (MC68HC11F1) Write EEPROM (MC68HC11F1) ECU Reset(Virgin) |
||
| BLADE | IAW 5AM_HW103/HW610 | ✔ | ✔ | ✔ | Diagnostic Connector Mode Read EEPROM (95160) Write EEPROM (95160) BENCH Mode Read EEPROM (95160) Write EEPROM (95160) ECU Reset(Virgin) |
||
| BLADE | IMM003/IMM006 | ✔ | ✔ | ✔ | Read EEPROM (MC68HC05E6) Write EEPROM (MC68HC05E6) ECU Reset(Virgin) |
||
| BLADE | MIU1.XX/MIU2.XX/MIU4.XX(26PINS) | ✔ | ✔ | ✔ | Make Start Key | ||
| GTS 125/150 3V GTS 125/300 ABS PRIMAVE 125/150 LT 125/150 3V LT 125/150 E1 LX 125 LX 150 3V LXV 125 3V LXV 125/150 2V/3V S125/150 S125/150 3V VESPA 125/150 3V X10 350 |
BLADE | MIU G3/M3G1/IAW M3G(34PINS) | ✔ | ✔ | ✔ | Make Start Key ECU Reset(Virgin) Read 95320 EEPROM (Backup) Write 95320 EEPROM (Restore) ECU Reset(Virgin) |
|
| LX 125/150 3V SPRINT 125 3V SPRINT 150 3V SPRINT ABS |
BLADE | PGN04/PGS02/PGS06/PGT01 | ✔ | ✔ | ✔ | Make Start Key | |
| GTS 125/150 3V GTS 125/300 ABS PRIMAVE 125/150 LT 125/150 3V LT 125/150 E1 LX 125 LX 150 3V LXV 125 3V LXV 125/150 2V/3V S125/150 S125/150 3V VESPA 125/150 3V X10 350 |
BLADE | RIU1 | ✔ | ✔ | ✔ | Make Start Key Advanced Functions Read EEPROM (95320) Write EEPROM (95320) ECU Reset(Virgin) |
Peugeot Motorcycle key programming list
All blade key
| System Type | No Need PinCode | Add Keys | All key Lost | Other Function |
| ACI100 | ✔ | ✔ | ✔ | Read EEPROM (MC68HC05E6) Write EEPROM (MC68HC05E6) |
| ACI500/501/502/503/504/505 | ✔ | ✔ | ✔ | Read EEPROM (MC68HC05E6) Write EEPROM (MC68HC05E6) |
| ACI600/601/602/603/604/605/606 | ✔ | ✔ | ✔ | Read EEPROM (MC68HC05E6) Write EEPROM (MC68HC05E6) |
| ACII/AC2I/AC5I/AC8I/AC13I/AC21I/AC23/AC23I | ✔ | ✔ | ✔ | Make Start Key Advanced Functions Read EEPROM(ST7 INTERNAL) Read EEPROM( EXTERNAL 95040) Write EEPROM(ST7 INTERNAL) Write EEPROM(EXTERNAL 95040) ECU Reset(Virgin) |
| AC19I/AC20I/AC27I | ✔ | ✔ | ✔ | Make Start Key Advanced Functions Read EEPROM (INTERNAL 95080) Write EEPROM (INTERNAL 95080) ECU Reset(Virgin) |
| AC24I/AC25I/AC32I | ✔ | ✔ | ✔ | Make Start Key Advanced Functions Read EEPROM (INTERNAL 95080) Write EEPROM (INTERNAL 95080) ECU Reset(Virgin) |
| IAW 15 | ✔ | ✔ | ✔ | Make Start Key Advanced Functions Read EEPROM (MC68HC11F1) Write EEPROM (MC68HC11F1) ECU Reset(Virgin) |
| IAW 5AM_HW103/HW610 | ✔ | ✔ | ✔ | Diagnostic Connector Mode Read EEPROM (95160) Write EEPROM (95160) BENCH Mode Read EEPROM (95160) Write EEPROM (95160) ECU Reset(Virgin) |
| IMM003/IMM006 | ✔ | ✔ | ✔ | Read EEPROM (MC68HC05E6) Write EEPROM (MC68HC05E6) ECU Reset(Virgin) |
| MIU1.XX/MIU2.XX/MIU4.XX(26PINS) | ✔ | ✔ | ✔ | Make Start Key |
| MIU G3/M3G1/IAW M3G(34PINS) | ✔ | ✔ | ✔ | Make Start Key ECU Reset(Virgin) Read 95320 EEPROM (Backup) Write 95320 EEPROM (Restore) ECU Reset(Virgin) |
| PGN04/PGS02/PGS06/PGT01 | ✔ | ✔ | ✔ | Make Start Key |
| RIU1 | ✔ | ✔ | ✔ | Make Start Key Advanced Functions Read EEPROM (95320) Write EEPROM (95320) ECU Reset(Virgin) |
Gilera Motorcycle Immo List
All blade key
| System Type | No Need PinCode | Add Keys | All key Lost | Other Function |
| ACI100 | ✔ | ✔ | ✔ | Read EEPROM (MC68HC05E6) Write EEPROM (MC68HC05E6) |
| ACI500/501/502/503/504/505 | ✔ | ✔ | ✔ | Read EEPROM (MC68HC05E6) Write EEPROM (MC68HC05E6) |
| ACI600/601/602/603/604/605/606 | ✔ | ✔ | ✔ | Read EEPROM (MC68HC05E6) Write EEPROM (MC68HC05E6) |
| ACII/AC2I/AC5I/AC8I/AC13I/AC21I/AC23/AC23I | ✔ | ✔ | ✔ | Make Start Key Advanced Functions Read EEPROM(ST7 INTERNAL) Read EEPROM( EXTERNAL 95040) Write EEPROM(ST7 INTERNAL) Write EEPROM(EXTERNAL 95040) ECU Reset(Virgin) |
| AC19I/AC20I/AC27I | ✔ | ✔ | ✔ | Make Start Key Advanced Functions Read EEPROM (INTERNAL 95080) Write EEPROM (INTERNAL 95080) ECU Reset(Virgin) |
| AC24I/AC25I/AC32I | ✔ | ✔ | ✔ | Make Start Key Advanced Functions Read EEPROM (INTERNAL 95080) Write EEPROM (INTERNAL 95080) ECU Reset(Virgin) |
| IAW 15 | ✔ | ✔ | ✔ | Make Start Key Advanced Functions Read EEPROM (MC68HC11F1) Write EEPROM (MC68HC11F1) ECU Reset(Virgin) |
| IAW 5AM_HW103/HW610 | ✔ | ✔ | ✔ | Diagnostic Connector Mode Read EEPROM (95160) Write EEPROM (95160) BENCH Mode Read EEPROM (95160) Write EEPROM (95160) ECU Reset(Virgin) |
| IMM003/IMM006 | ✔ | ✔ | ✔ | Read EEPROM (MC68HC05E6) Write EEPROM (MC68HC05E6) ECU Reset(Virgin) |
| MIU1.XX/MIU2.XX/MIU4.XX(26PINS) | ✔ | ✔ | ✔ | Make Start Key |
| MIU G3/M3G1/IAW M3G(34PINS) | ✔ | ✔ | ✔ | Make Start Key ECU Reset(Virgin) Read 95320 EEPROM (Backup) Write 95320 EEPROM (Restore) ECU Reset(Virgin) |
| PGN04/PGS02/PGS06/PGT01 | ✔ | ✔ | ✔ | Make Start Key |
| RIU1 | ✔ | ✔ | ✔ | Make Start Key Advanced Functions Read EEPROM (95320) Write EEPROM (95320) ECU Reset(Virgin) |
Write transponder key to start
| Area | Brand | Model | Data location | Original transponder | Allowed transponders |
| ASIA | HONDA | 38770_KTW_901 | EEPROM 93C66 | PCF 7936 | PCF 7936 |
| ASIA | HONDA | 38770_MCZ_003 | EEPROM 93C56 | PCF 7936 (ID46) | PCF 7936 |
| ASIA | HONDA | 38770_MEE_643 | EEPROM 93C56 | PCF 7936 (ID46) | PCF 7936 |
| ASIA | HONDA | 38770_MEE_702 | EEPROM 93C56 | PCF 7936 (ID46) | PCF 7936 |
| ASIA | HONDA | 38770_MFG_D02 | EEPROM 93C66 | PCF 7936 | PCF 7936 |
| ASIA | HONDA | 38770_MFN_D01 | EEPROM 93C66 | PCF 7936 | PCF 7936 |
| ASIA | KAWASAKI | 21175_0046_Denso | EEPROM 93C66 | TIRIS 4D | TIRIS 4D |
| ASIA | KAWASAKI | 21175_0053_Denso | EEPROM 93C66 | TIRIS 4D | TIRIS 4D |
| ASIA | KAWASAKI | 21175_0097_Denso | EEPROM 93C66 | TIRIS 4D | TIRIS 4D |
| ASIA | KAWASAKI | 21175_0098_Denso | EEPROM 93C66 | TIRIS 4D | TIRIS 4D |
| ASIA | KAWASAKI | 21175_0109_Denso | EEPROM 93C66 | TIRIS 4D | TIRIS 4D |
| ASIA | KAWASAKI | 21175_0170_Denso | EEPROM 93C66 | TIRIS 4D | TIRIS 4D |
| ASIA | KAWASAKI | 21175_0173_Denso | EEPROM 93C66 | TIRIS 4D | TIRIS 4D |
| ASIA | KAWASAKI | 21175_0220_Denso | EEPROM 93C66 | TIRIS 4D | TIRIS 4D |
| ASIA | KAWASAKI | 21175_0227_Denso | EEPROM 93C66 | TIRIS 4D | TIRIS 4D |
| ASIA | KAWASAKI | 21175_0341_Denso | EEPROM 93C66 | TIRIS 4D | TIRIS 4D |
| ASIA | KAWASAKI | 21175_0356_Denso | EEPROM 93C66 | TIRIS 4D | TIRIS 4D |
| ASIA | KAWASAKI | 21175_0363_Denso | EEPROM 93C66 | TIRIS 4D | TIRIS 4D |
| ASIA | KAWASAKI | 21175_0789_Denso | EEPROM 93C86 | TIRIS 4D | TIRIS 4D |
| ASIA | KAWASAKI | 21175_0811_Denso | EEPROM 93C86 | TIRIS 4D | TIRIS 4D |
| ASIA | KAWASAKI | 21175_0017_MITSUBISHI | EEPROM 24C02 | TIRIS 4D | TIRIS 4D |
| ASIA | KAWASAKI | 21175_0079_MITSUBISHI | EEPROM 24C04 | TIRIS 4D | TIRIS 4D |
| ASIA | KAWASAKI | 21175_0101_MITSUBISHI | EEPROM 24C04 | TIRIS 4D | TIRIS 4D |
| ASIA | KAWASAKI | 21175_0158_MITSUBISHI | EEPROM 24C04 | TIRIS 4D | TIRIS 4D |
| ASIA | KAWASAKI | 21175_0242_MITSUBISHI | EEPROM 24C04 | TIRIS 4D | TIRIS 4D |
| ASIA | KAWASAKI | 21175_0712_MITSUBISHI | EEPROM 24C08 | TIRIS 4D | TIRIS 4D |
| ASIA | KAWASAKI | 21175_0762_MITSUBISHI | EEPROM 24C04 | TIRIS 4D | TIRIS 4D |
| ASIA | KAWASAKI | 21175_0770_MITSUBISHI | EEPROM 24C04 | TIRIS 4D | TIRIS 4D |
| ASIA | SUZUKI | 32920_01HX0 | EEPROM 93C66 | TIRIS 4D | TIRIS 4D |
| ASIA | SUZUKI | 32920_02H00 | EEPROM 93C66 | TIRIS 4D | TIRIS 4D |
| ASIA | SUZUKI | 32920_05H00 | EEPROM 93C66 | TIRIS 4C | TIRIS 4C |
| ASIA | SUZUKI | 32920_05H01 | EEPROM 93C66 | TIRIS 4C | TIRIS 4C |
| ASIA | SUZUKI | 32920_05H02 | EEPROM 93C66 | TIRIS 4C | TIRIS 4C |
| ASIA | SUZUKI | 32920_08J00 | EEPROM 93C66 | TIRIS 4D | TIRIS 4D |
| ASIA | SUZUKI | 32920_10GA0 | EEPROM 93C66 | TIRIS 4C | TIRIS 4C |
| ASIA | SUZUKI | 32920_10GF0 | EEPROM 93C66 | TIRIS 4C | TIRIS 4C |
| ASIA | SUZUKI | 32920_10GG0 | EEPROM 93C66 | TIRIS 4C | TIRIS 4C |
| ASIA | SUZUKI | 32920_14GA0 | EEPROM 93C66 | TIRIS 4C | TIRIS 4C |
| ASIA | SUZUKI | 32920_15GA0 | EEPROM 93C66 | TIRIS 4C | TIRIS 4C |
| ASIA | SUZUKI | 32920_15H00 | EEPROM 93C66 | TIRIS 4D | TIRIS 4D |
| ASIA | SUZUKI | 32920_15H30 | EEPROM 93C66 | TIRIS 4D | TIRIS 4D |
| ASIA | SUZUKI | 32920_21H50 | EEPROM 93C66 | TIRIS 4D | TIRIS 4D |
| ASIA | SUZUKI | 32920_23H00 | EEPROM 93C66 | TIRIS 4D | TIRIS 4D |
| ASIA | SUZUKI | 32920_31J00 | EEPROM 93C66 | TIRIS 4D | TIRIS 4D |
| ASIA | SUZUKI | 32920_37HX0 | EEPROM 93C66 | TIRIS 4D | TIRIS 4D |
| ASIA | SUZUKI | 32920_38HX0 | EEPROM 93C66 | TIRIS 4D | TIRIS 4D |
| ASIA | SUZUKI | 32920_41G50 | EEPROM 93C66 | TIRIS 4D | TIRIS 4D |
| ASIA | SUZUKI | 32920_41GX0 | EEPROM 93C66 | TIRIS 4D | TIRIS 4D |
| ASIA | SUZUKI | 32920_44GX0 | EEPROM 93C66 | TIRIS 4D | TIRIS 4D |
| ASIA | SUZUKI | 32920_47H00 | EEPROM 93C66 | TIRIS 4D | TIRIS 4D |
| ASIA | SUZUKI | 32920_47H30 | EEPROM 93C66 | TIRIS 4D | TIRIS 4D |
| ASIA | SUZUKI | 32920_42FX0 | EEPROM 24C02 | TIRIS 4C | TIRIS 4C |
| ASIA | YAMAHA | YAMAHA_ECU_MITSUBA | EEPROM 24C04 | Temic12 (ID12) | T5（TK5551） |
| ASIA | YAMAHA | YAMAHA_IMMO_MORIC | EEPROM S29190A | Tiris DST 4D (ID62) | Tiris DST 4D |
| EUROPE | APRILIA | DORSODURO | EEPROM 24C16 | Temic12 (ID12) | T5（TK5551） |
| EUROPE | APRILIA | SCARABEO | EEPROM 24C16 | Temic12 (ID12) | T5（TK5551） |
| EUROPE | APRILIA | ATLANTIC | EEPROM 24C16 | Temic12 (ID12) | T5（TK5551） |
| EUROPE | APRILIA | MANA | EEPROM 24C16 | Temic12 (ID12) | T5（TK5551） |
| EUROPE | APRILIA | SHIVER | EEPROM 24C16 | Temic12 (ID12) | T5（TK5551） |
| EUROPE | APRILIA | MANA | EEPROM 24C16 | Temic12 (ID12) | T5（TK5551） |
| EUROPE | APRILIA | RSV | EEPROM 24C16 | Temic12 (ID12) | T5（TK5551） |
| EUROPE | APRILIA | SR50 | EEPROM 24C16 | Temic12 (ID12) | T5（TK5551） |
| EUROPE | BMW | Motorcycle | Flash M58BW016 | PCF 7936 | PCF 7936 |
| EUROPE | PIAGGIO | Immobox(68HC705) | Motorola Processor processor MC68HC705E6 |
Temic 11 | T5（TK5551） |
| EUROPE | PIAGGIO | Immobox(ST72334) | Processor ST72334 | Temic 11 | T5（TK5551） |
| EUROPE | PIAGGIO | ECU68HC05 | Motorola Processor processor MC68HC05B16 |
Temic 11 | T5（TK5551） |
| EUROPE | PIAGGIO | Immobox(25080) | EEPROM 25080 | Temic 11 | T5（TK5551） |
| EUROPE | PIAGGIO | VESPA_GTS 125(ST10F269) | Processor ST10F269 | Temic 11 | T5（TK5551） |
| EUROPE | PIAGGIO | VESPA_GTS 125(95320) | EEPROM 95320 | Temic 11 | T5 |
| EUROPE | PIAGGIO | VESPA_GTS 250 | Processor ST10F269 | Temic 11 | T5（TK5551） |
| EUROPE | PIAGGIO | X9 500(MC68HC11F1) | Motorola Processor MC68HC11F1 |
Temic 11 | T5 |
| EUROPE | DUCATI | DUCATI_1199_PANIGALE | Motorola Processor M9S12P128 |
TIRIS 4D | TIRIS 4D |
| EUROPE | DUCATI | DUCATI_DIAVEL_ZADI | EEPROM 24C04 | Tiris DST 4D | Tiris DST 4D |
| EUROPE | DUCATI | DUCATI_MONSTER_400 | Motorola Processor processor MC68HC705E6 |
Temic 11 | T5（TK5551） |
| EUROPE | DUCATI | DUCATI_MONSTER_696 | EEPROM 24C16 | Temic 11 | T5（TK5551） |
| EUROPE | DUCATI | DUCATI_MONSTER_696 | EEPROM 24C16 | Temic 12 | T5（TK5551） |
| EUROPE | DUCATI | DUCATI_MONSTER_796 | EEPROM 24C16 | Temic 11 | T5（TK5551） |
| EUROPE | DUCATI | DUCATI_MONSTER_796 | EEPROM 24C16 | Temic 12 | T5（TK5551） |
| EUROPE | DUCATI | DUCATI_MONSTER_1000 | EEPROM 24C02 | Temic 11 | T5（TK5551） |
| EUROPE | DUCATI | DUCATI_MULTISTRADA | EEPROM 24C16 | Temic 11 | T5（TK5551） |
| EUROPE | DUCATI | DUCATI_SCRAMBLER_800 | EEPROM 24C02 | Temic 11 | T5（TK5551） |
| EUROPE | DUCATI | DUCATI_SUPERBIKE_748 | EEPROM 24C16 | Temic 11 | T5（TK5551） |
| EUROPE | DUCATI | DUCATI_SUPERBIKE_749 | EEPROM 24C16 | Temic 11 | T5（TK5551） |
| EUROPE | DUCATI | DUCATI_SUPERBIKE_848 | EEPROM 24C16 | Temic 11 | T5（TK5551） |
| EUROPE | DUCATI | DUCATI_SUPERBIKE_848 | EEPROM 24C16 | Temic 12 | T5（TK5551） |
| EUROPE | DUCATI | DUCATI_SUPERBIKE_948 | EEPROM 24C16 | Temic 11 | T5（TK5551） |
| EUROPE | DUCATI | DUCATI_SUPERBIKE_948 | EEPROM 24C16 | Temic 12 | T5（TK5551） |
| EUROPE | DUCATI | DUCATI_SUPERBIKE_996 | Motorola Processor processor MC68HC05B16 |
Temic 11 | T5（TK5551） |
| EUROPE | DUCATI | DUCATI_SUPERBIKE_999 | EEPROM 24C16 | Temic 11 | T5（TK5551） |
| EUROPE | DUCATI | DUCATI_SUPERBIKE_1049 | EEPROM 24C16 | Temic 11 | T5（TK5551） |
| EUROPE | DUCATI | DUCATI_SUPERBIKE_1049 | EEPROM 24C16 | Temic 12 | T5（TK5551） |
| EUROPE | DUCATI | DUCATI_SUPERBIKE_1098 | EEPROM 24C16 | Temic 11 | T5（TK5551） |
| EUROPE | DUCATI | DUCATI_SUPERBIKE_1098 | EEPROM 24C16 | Temic 12 | T5（TK5551） |
| EUROPE | DUCATI | DUCATI_SUPERBIKE_1198 | EEPROM 24C16 | Temic 11 | T5（TK5551） |
| EUROPE | DUCATI | DUCATI_SUPERBIKE_1198 | EEPROM 24C16 | Temic 12 | T5（TK5551） |
| EUROPE | DUCATI | DUCATI_SPORTTOURING_ST3 | EEPROM 24C16 | Temic 11 | T5（TK5551） |
The operation demo guide will be added soon.
