Yanhua Mini ACDP key programmer is the best solution of BMW DME ISN reading & writing. It covers a wide range of BMW DME models, and it is the safest and most reliable. ISN code is required when making BMW all keys lost.
To read /write BMW ISN code with Mini ACDP, you will need one extra #03_ISN Module, look at #03_ISN Module Feature:
1: Read ISN codes of N20/N55/N13 by OBD or without opening the DME shell.
2: Read ISN code of MSV70/MSV80/MSD80 without opening the DME shell.
3:Read ISN code of other models (B38, etc.) by opening the shell.
4:Read ISN code of MSV90/B48 by OBD. (Need to buy interface board)
5:Read & Write ISN code on Bench. Support full versions of N13/N20/N63/S63/N55/B38 etc.( Need to buy Bench interface board)

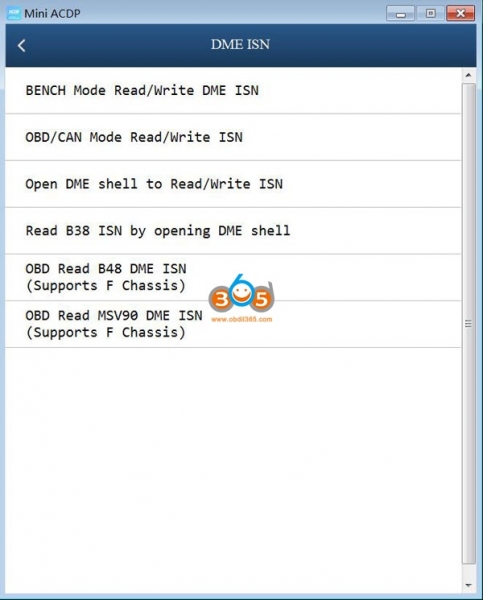

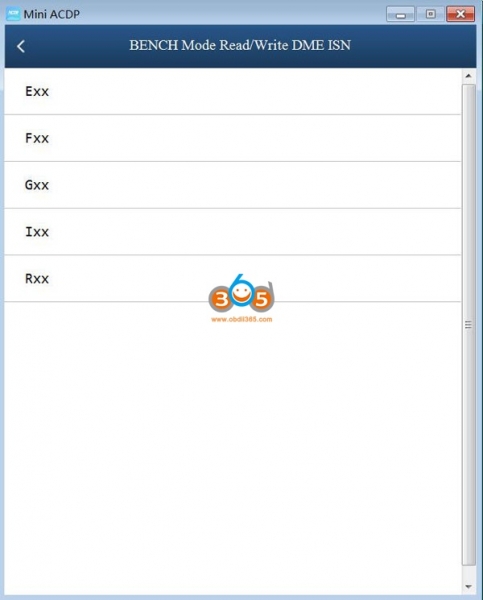

Image 1: Mini ACDP BMW DME ISN function menu.
Alright, for the details, please read the following tables.
Table 1: Yanhua Mini ACDP Bench Mode read & write BMW Exx / Fxx / Gxx / Rxx / Ixx ISN.
Bench Mode read & write BMW Exx / Fxx / Gxx / Rxx / Ixx ISN.
| Interface board type | Picture | Exx | Fxx | Gxx | Rxx | Ixx |
|---|---|---|---|---|---|---|

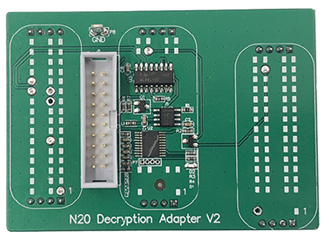

| N20 Bench interface board |
|
N20(MEVD172P) | N13(MEVD1725) | |||
| N20(MEVD1724) | N20(MEVD172P) | |||||
| N20(MEVD1729) | N20(MEVD1724) | |||||
| N20(MEVD1729) | ||||||
| N26(MEVD1729) | ||||||
| N63(MEVD172H) | ||||||
| N63(MEVD1728) | ||||||
| S63(MEVD172H) | ||||||
| S63(MEVD1728) | ||||||

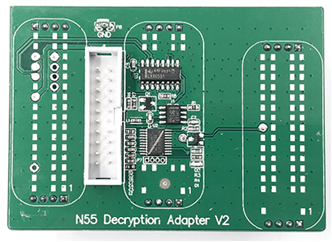

| N55 Bench interface board |
|
N55(MEVD172) | N55(MEVD172) | |||
| N55(MEVD172G) | ||||||
| N55(MEVD1726) | ||||||
| S55(MEVD172G) | ||||||

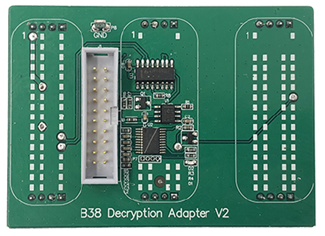

| B38 Bench interface board |
|
B38(MEVD172K) | B38(MEVD172K) | B38(MEVD172K) | ||
| B38(MEVD1723) | B38(MEVD1723) | B38(MEVD1723) | ||||
| B48(MEVD172K) | B48(MEVD172K) | |||||
| B48(MEVD1723) | B48(MEVD1723) | |||||
| XM71(MEVD172K) | ||||||
| XM71(MEVD1723) | ||||||

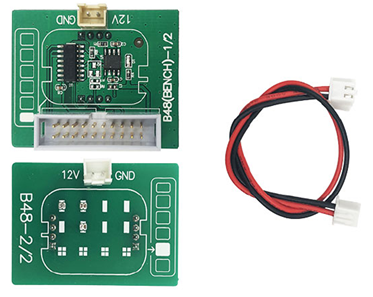

| B48/B58 Bench Interface Board |
|
B37(MD1CS001) | B46(MG1CS201) | B37(MD1CS001) | ||
| B38(MD1CS001) | B47(MD1CP002) | B48(MG1CS201) | ||||
| B48(MG1CS003) | B47(MD1CS001) | |||||
| B48(MG1CS201) | B48(MG1CS003) | |||||
| B58(MG1CS003) | B48(MG1CS201) | |||||
| B57(MD1CP002) | ||||||
| B58(MG1CS003) | ||||||
| B58(MG1CS201) | ||||||
| N63(MG1CS201) | ||||||
| N74(MG1CS003) | ||||||
| N74(MG1CS201) | ||||||

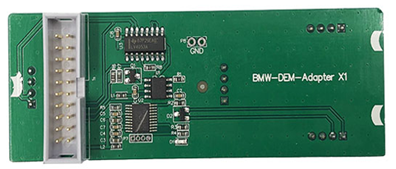

| BMW-DME-ADAPTER X1 |
|
N47(ECD17C50) | B37(ECD17C50) | B37(ECD17C50) | ||
| B47(EDC17C50) | B47(ECD17C50) | |||||
| B47(EDC17CP49) | N47(EDC17C50) | |||||
| N47(ECD17C50) | ||||||
| N47(ECD17C76) | ||||||
| N57(ECD17C76) | ||||||
| N57(ECD17C56) | ||||||
| N57(ECD17CP49) | ||||||

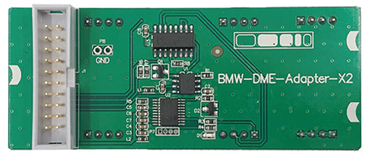

| BMW-DME-ADAPTER X2 |
|
N47(ECD17C41) | N47(ECD17C41) | N47(ECD17C41) | ||
| N57(ECD17CP45) | N47(ECD17CP45) | |||||
| N57(ECD17CP45) | ||||||

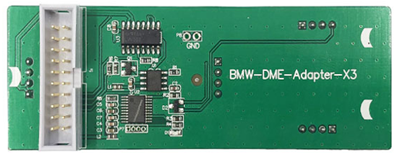

| BMW-DME-ADAPTER X3 |
|
BMSX(ME172) | ||||

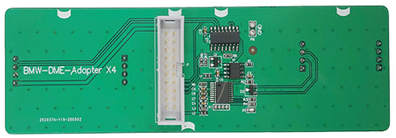

| BMW-DME-ADAPTER X4 |
|
N12(MEV172) | ||||
| N14(MED172) | ||||||

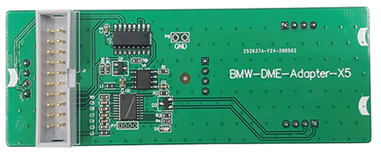

| BMW-DME-ADAPTER X5 |
|
N47(ECD17C06) | ||||
| N47(ECD17CP02) | ||||||

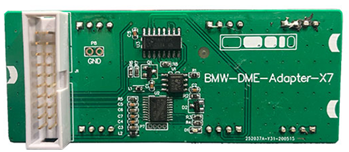

| BMW-DME-ADAPTER X7 |
|
N57(ECD17CP09) | N57(ECD17CP09) | |||

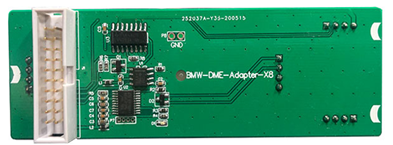

| BMW-DME-ADAPTER X8 |
|
N45(ME1721) | ||||
| N46(MEV1721) |
This article is not yet finished. Yanhua engineer is working hard to write up the left BMW ISN reading writing lists:
OBD / CAN Mode read /write ISN
Open DME shell to read / write ISN
Read B38 ISN by opening DME shell
OBD read B48 DME ISN (Support F Chassis)
Please wait patiently.
This is the method to read BMW ISN with ACDP:
The BENCH method is preferred ; if not, please read / write ISN in the wiring method; If both Bench mode and wiring method are not okay, punch to read / write.
Finally, for the above interface board you need, just search at www.obdii365.com
