Program Renault Sendero 2018 Remote Key with Autel IM608

How-to: program remote key for Renault Sendero 2018 using Autel MaxiIM IM608 via OBD.

Network connection is required.

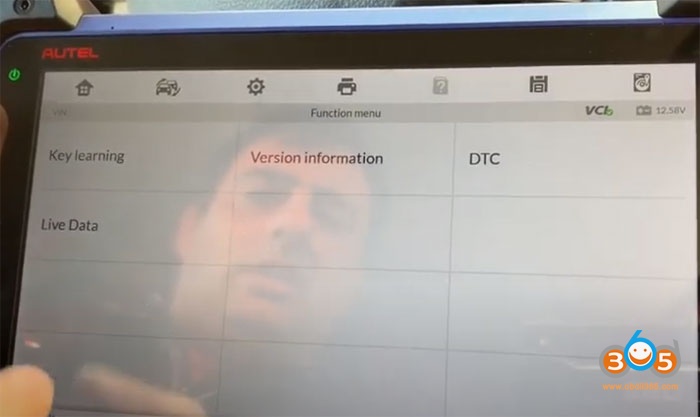

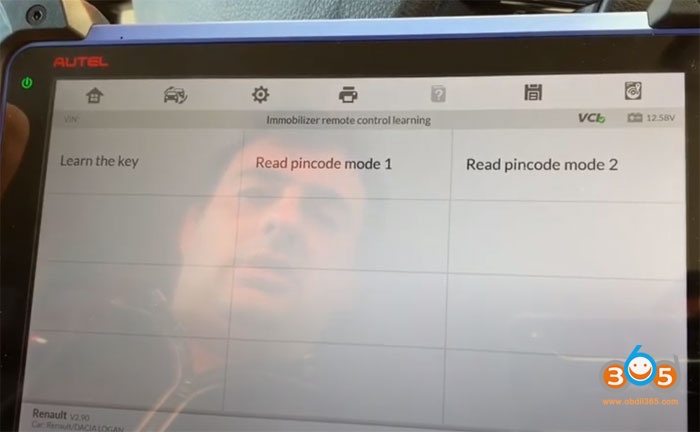

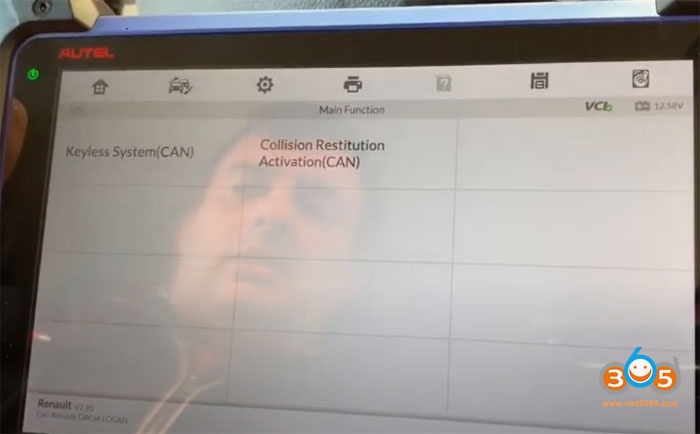

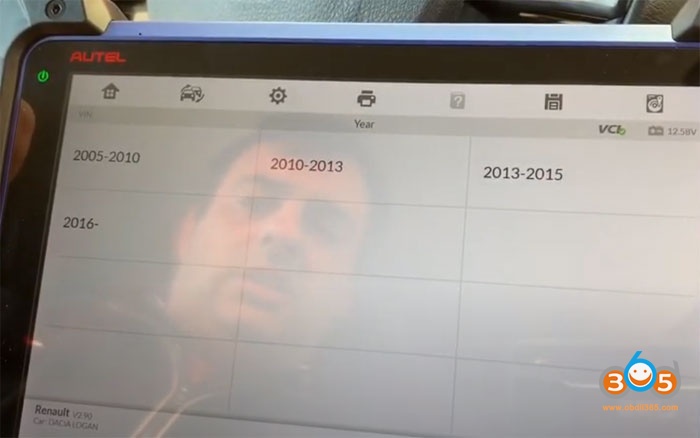

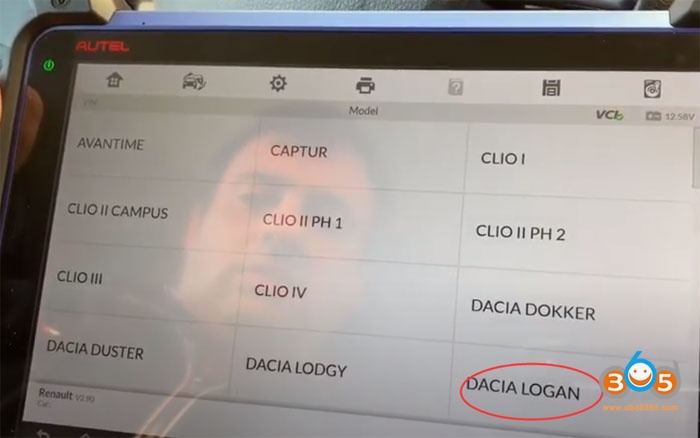

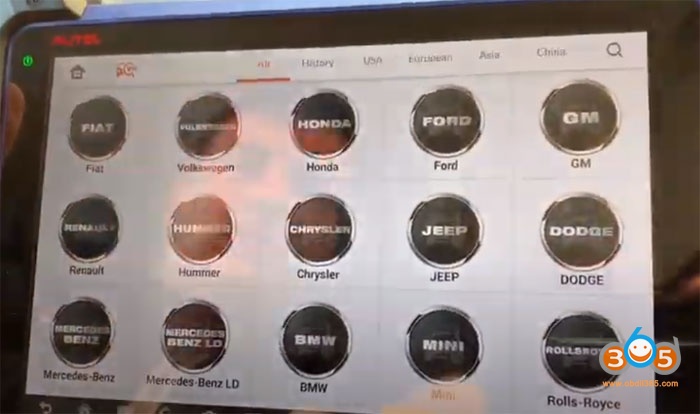

Select IMMO->Renault->Manual Selection-> Dacia Logan->2016 up->Keyless System (CAN)->Key learning-> Learn the key


			Program Renault Sendero 2018 Remote Key with Autel IM608


			Program Renault Sendero 2018 Remote Key with Autel IM608


			Program Renault Sendero 2018 Remote Key with Autel IM608


			Program Renault Sendero 2018 Remote Key with Autel IM608


			Program Renault Sendero 2018 Remote Key with Autel IM608


			Program Renault Sendero 2018 Remote Key with Autel IM608

Switch hazards ON and ignition OFF

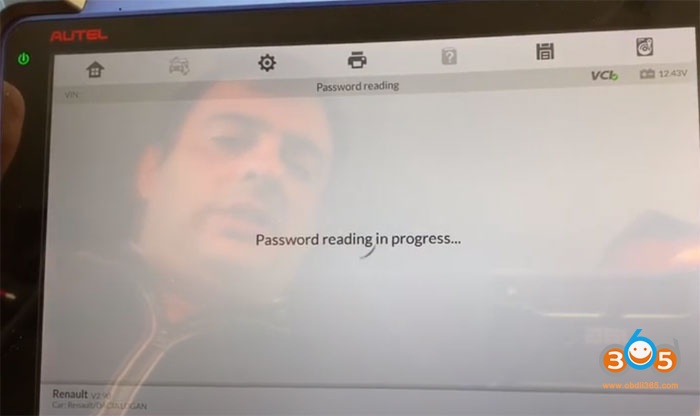

Password reading in progress


			Program Renault Sendero 2018 Remote Key with Autel IM608

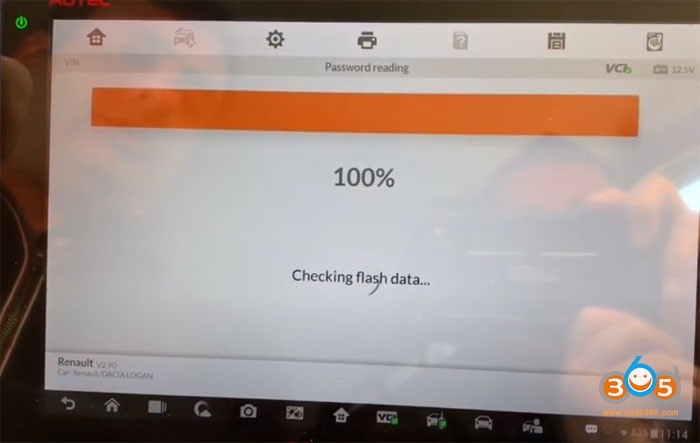

Checking flash data


			Program Renault Sendero 2018 Remote Key with Autel IM608

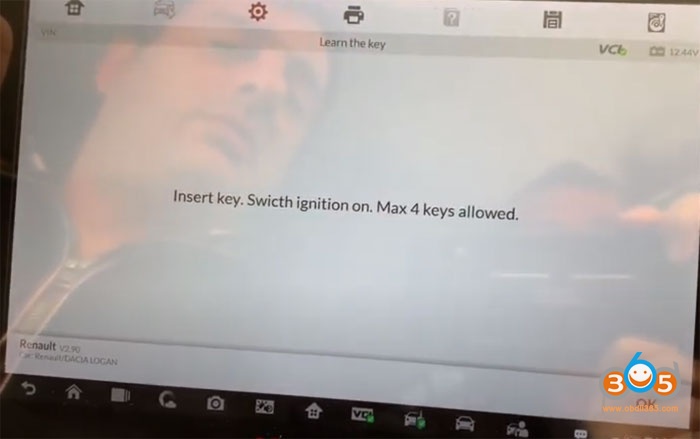

Insert key. Switch ignition on. Max 4 keys allowed.


			Program Renault Sendero 2018 Remote Key with Autel IM608

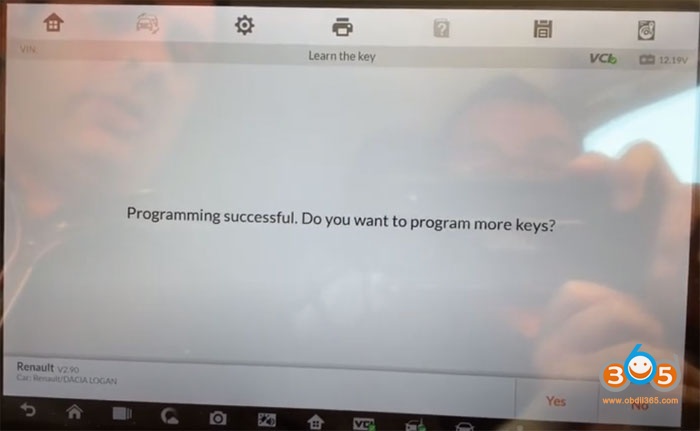

Program successfully.


			Program Renault Sendero 2018 Remote Key with Autel IM608

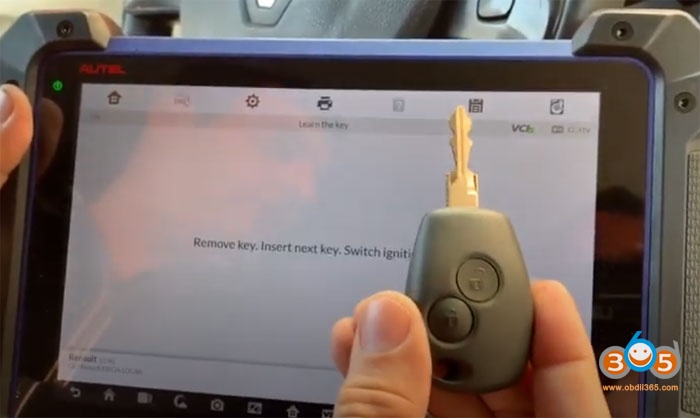

Remove key, insert next key. Switch ignition ON


			Program Renault Sendero 2018 Remote Key with Autel IM608

Program 2nd remote successfully.
Remove card and disconnect the Autel IM608.Insert card, start engine to complete procedure.

Done.
