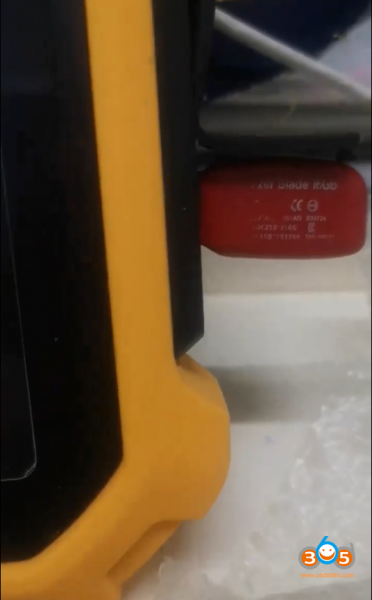

The goal of the tutorial is to clarify the possibility/potential of the OBDSTAR X300 DP Plus so that makes it in addition to being a key programmer through the software, but he can do the job. Purpose: Recover Toyota 2016 24C16 ECU Immo data What you need: OBDSTAR X300 DP Plus tablet (with P001 and EEPROM adapter) External storage device (a USB Card) Instruction: Connect P001 with EEPROM adapter, insert USB disk to X300DP plus, then connect P001 with X300DP

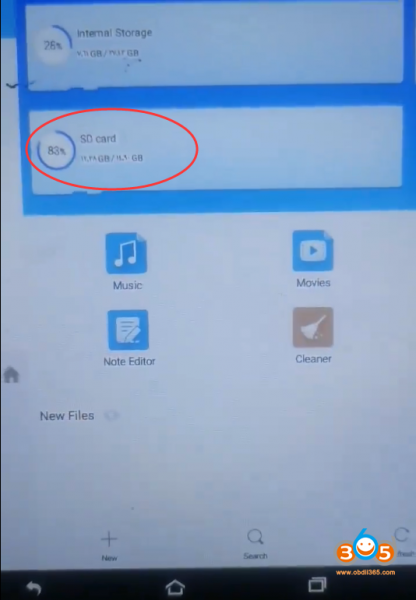

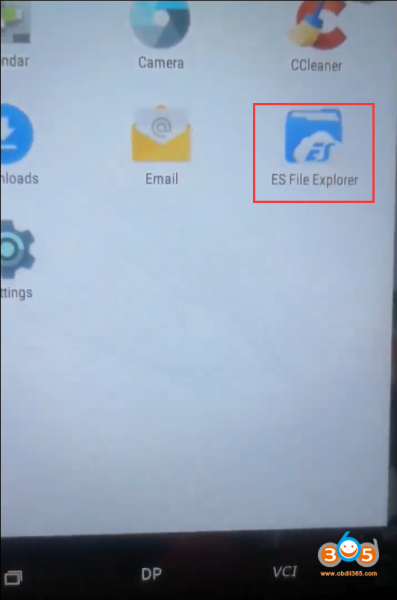

Go to X300 DP Plus Home menu->ES File Explorer->SD Card

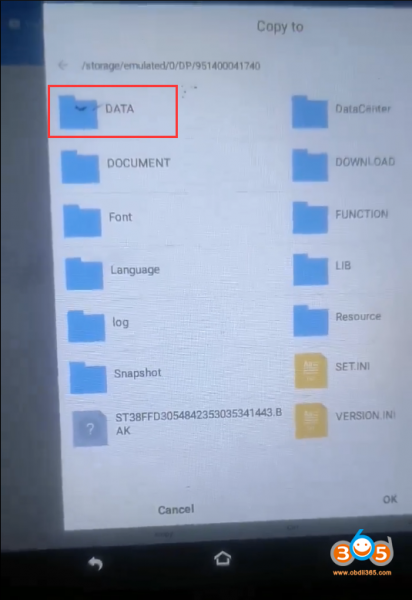

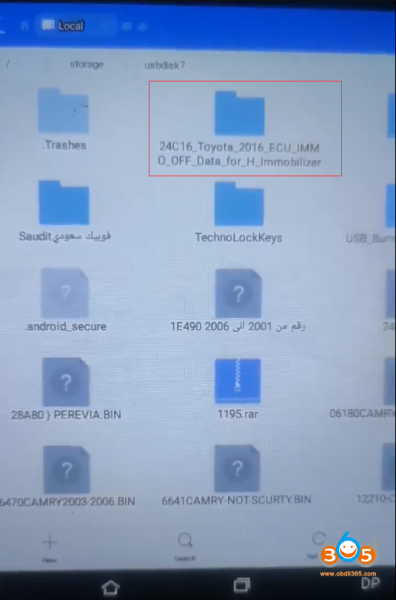

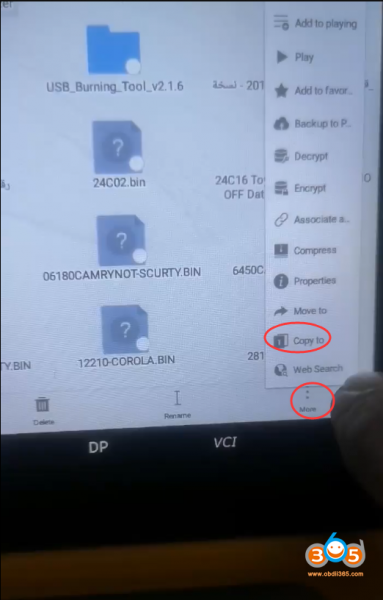

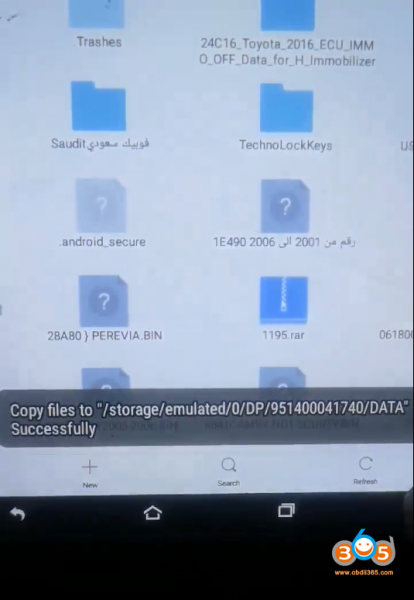

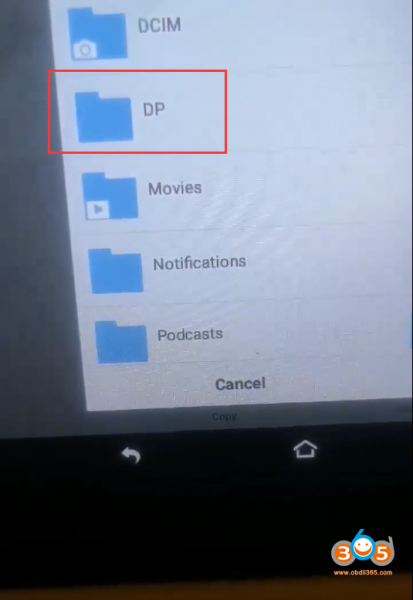

Long press the data (here 24C16_Toyota_2016_ECU_IMMO_OFF_Data_for_H_Immobilier) you need to recover and copy it to “/Storage.emulated/0/DP/951400041740/DATA”

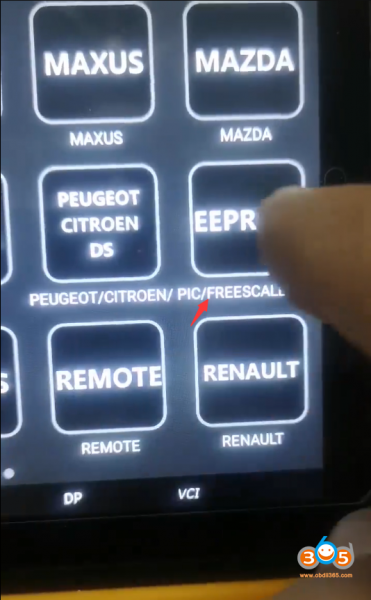

Select EEPROM function in X300DP Plus

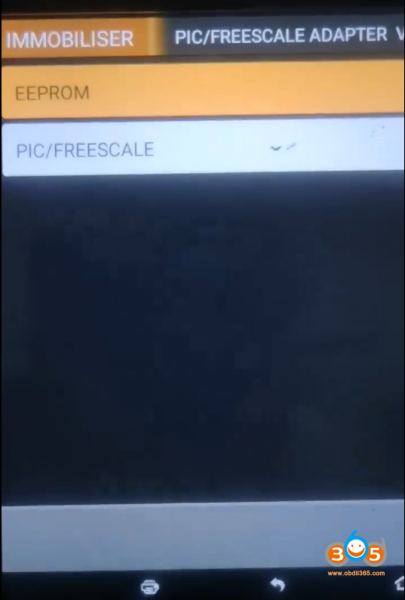

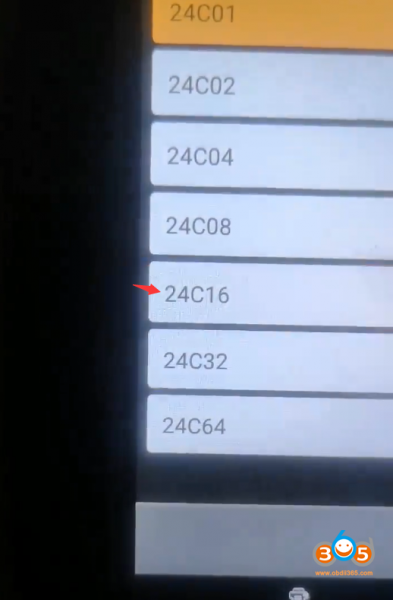

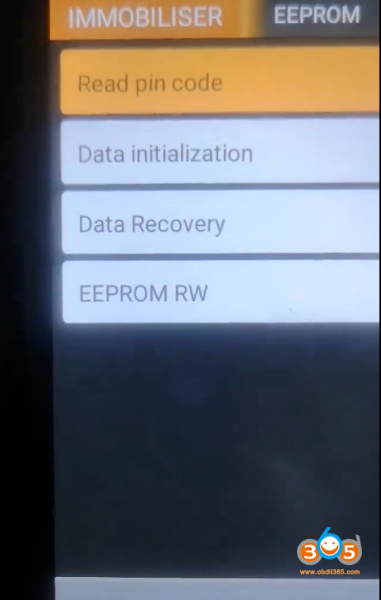

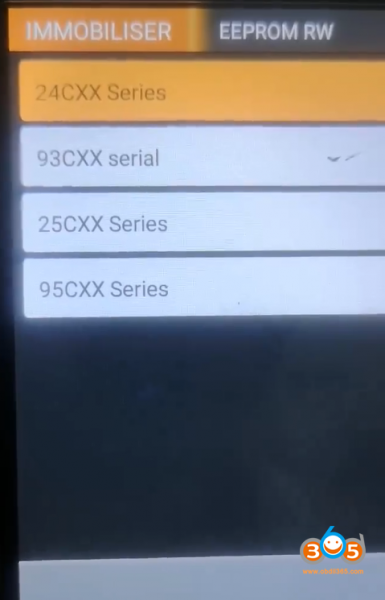

Select PIC/FreeScale adapter V34.06->EEPROM->EEPROM RW (Read/Write)->24CXX Series->24C16

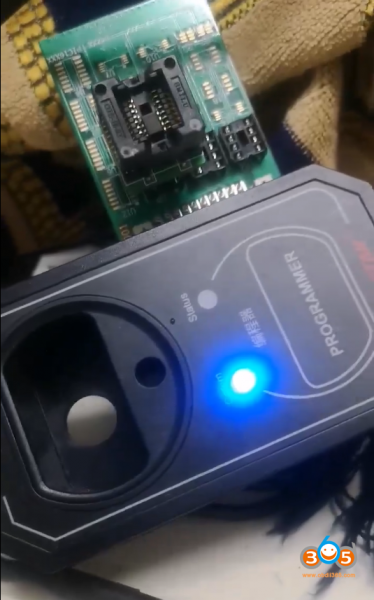

Make sure P001 adapter has connected with X300DP Plus

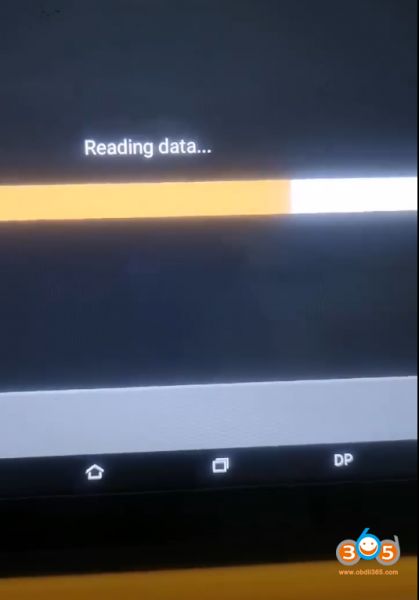

Reading EEPROM data in process

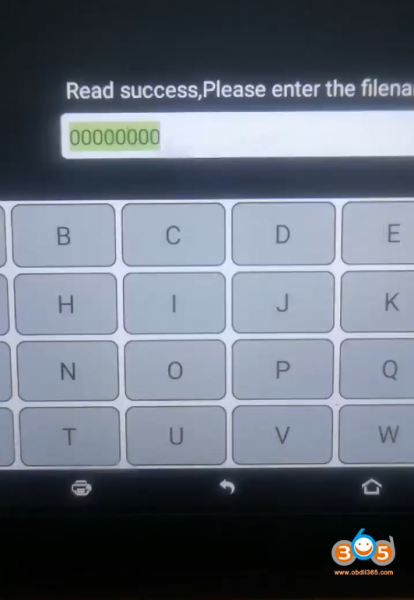

Save data as bin file

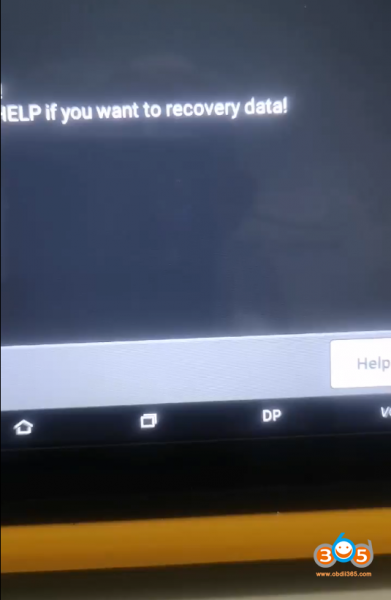

Press Help button to perform data recovery

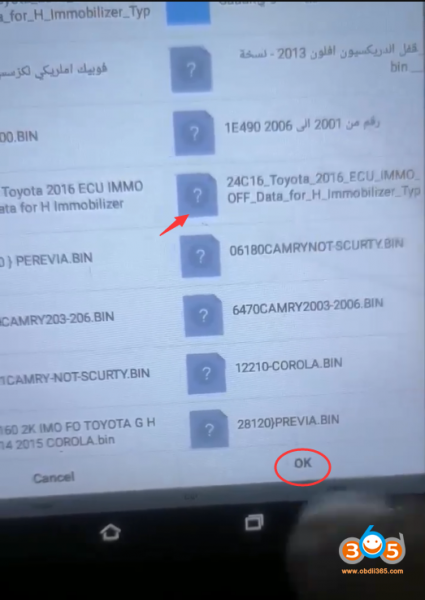

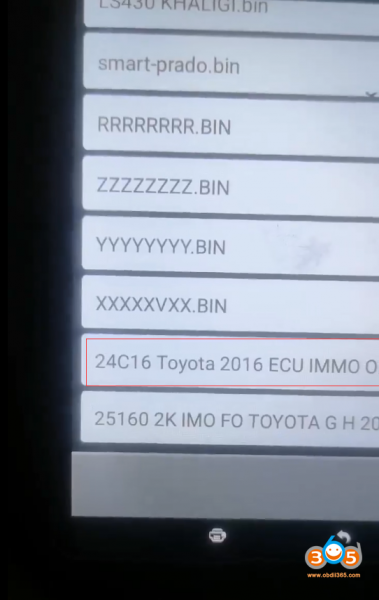

Select the file desired to restore from /Storage.emulated/0/DP/951400041740/DATA” folder

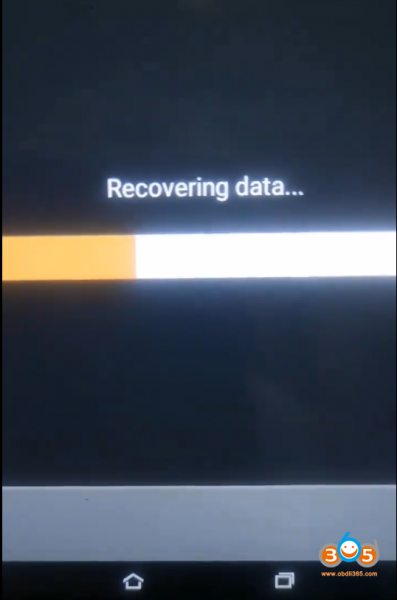

Recovering data in process

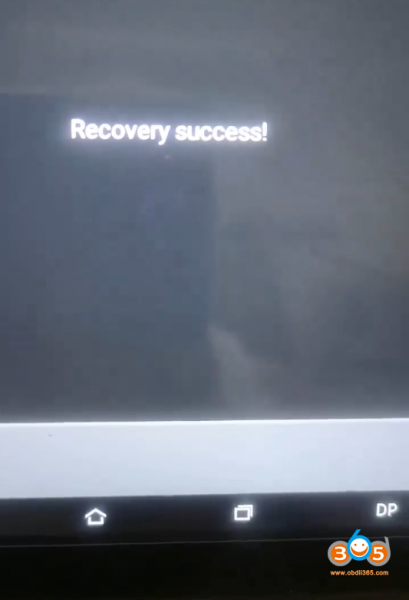

IMMO data recovery success. Now you can rewrite recovered data to immobilizer to repair ECU. Hope it helps. www.obdii365.com http://blog.obdii365.com/2019/10/30/recover-toyota-24c16-immo-data-using-obdstar-x300-dp-plus/
