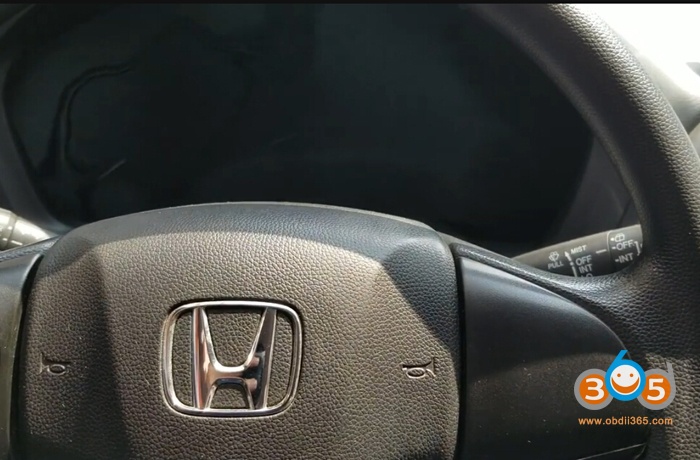

Vehicle model: Honda Vezel year 2015
Purpose: program key when lost all keys
Device: OBDSTAR X300 DP PLUS/ Key Master DP PLUS
Method: via OBD
Procedure:
(Note: FOLLOW EACH IGNITION ON/OFF OPERATION!!!)
Connect X300 DP PLUS with vehicle via OBD socket

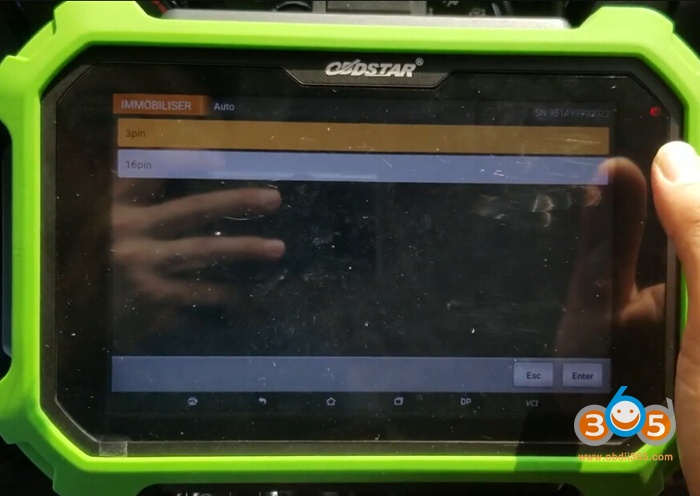

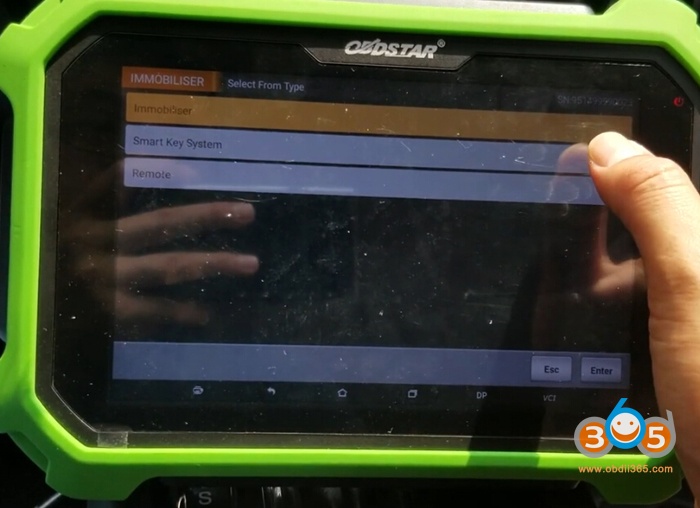

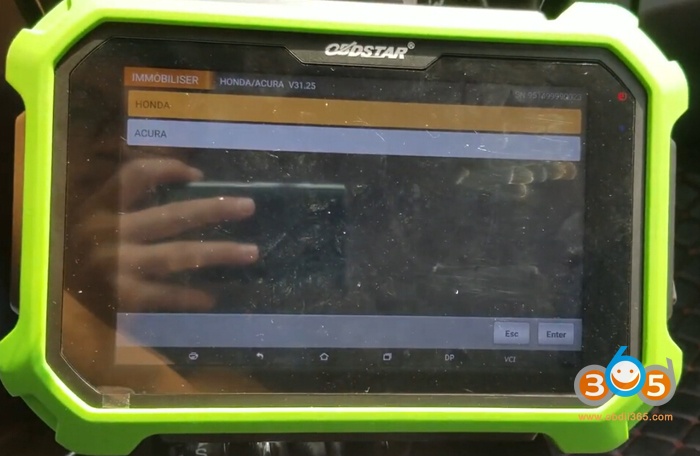

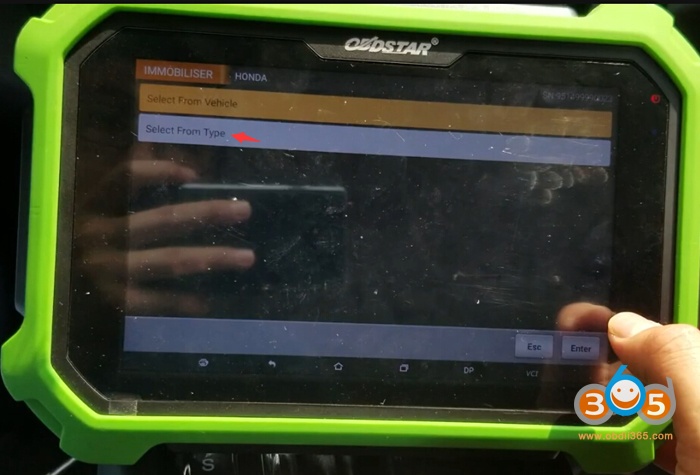

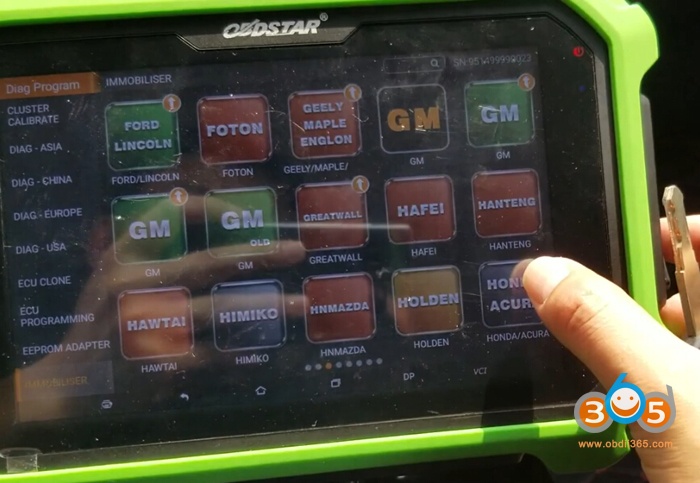

Select Immobilizer->Honda->Honda/Acura V31.25->Select from type-> Immobilizer-Auto->16-PIN
Turn on ignition switch
Makes communication

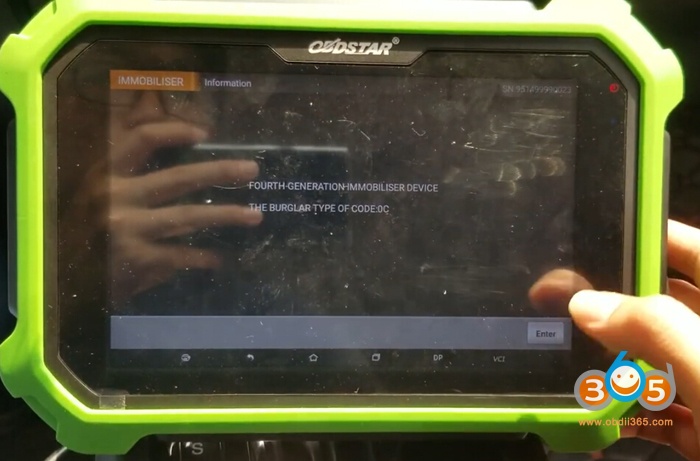

Identify the type of the immobilizer system: 4th Generation Immo

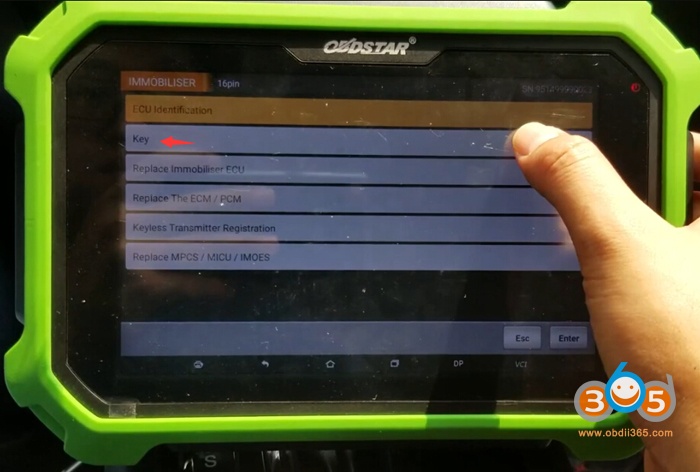

Select Key function->Rewrite key

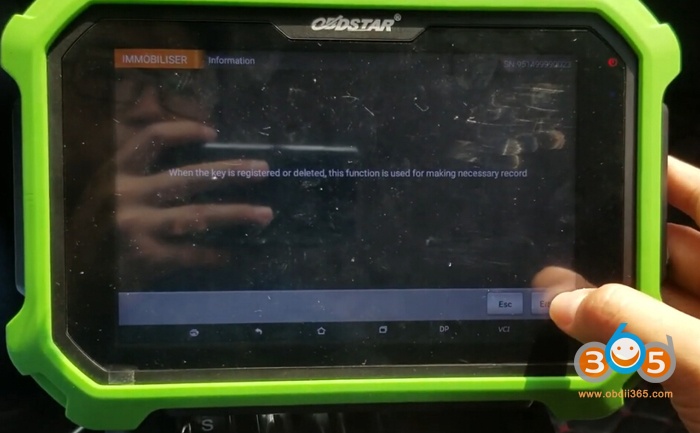

When the key is registered or detected, this function is used for making necessary backup

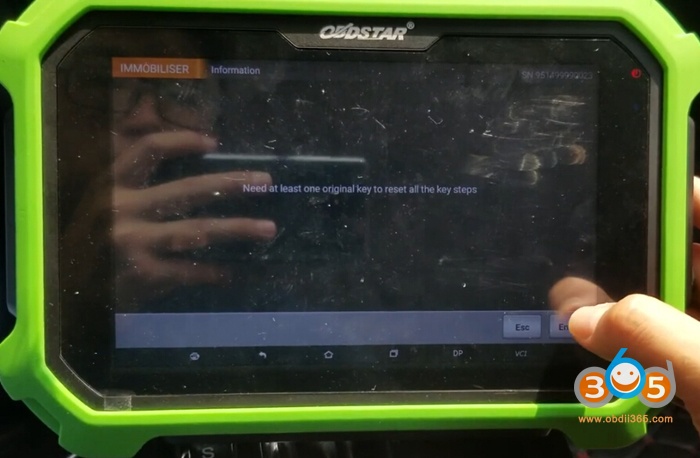

Require at least one original key to reset all the key steps

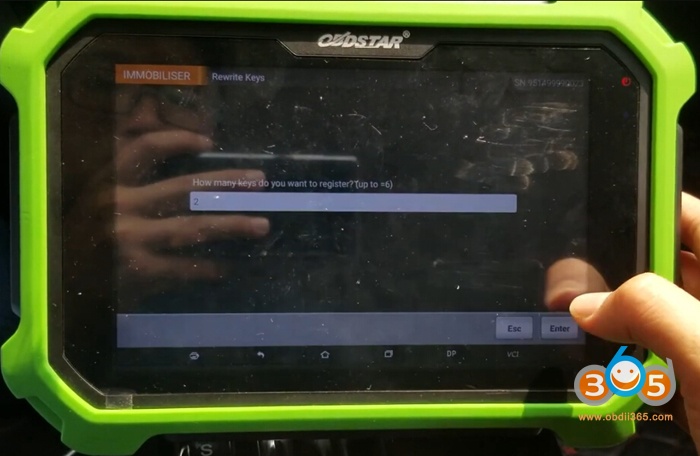

Enter number of keys you want to register
Switch ignition off
Then turn on the ignition
Turn off ignition within 20s

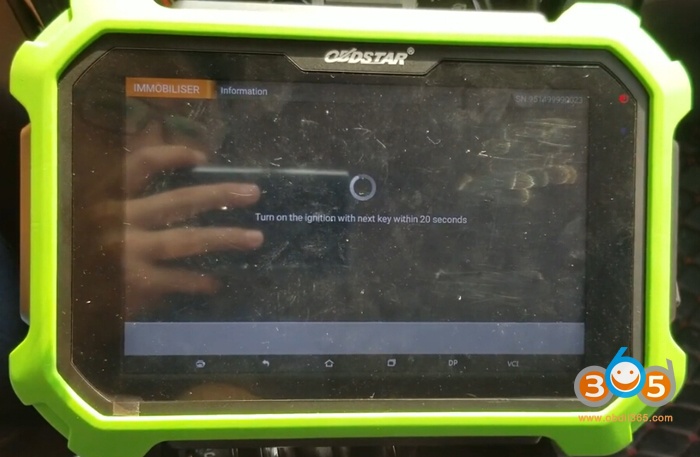

Turn on ignition with next key within 20s
Turn off ignition within 20s

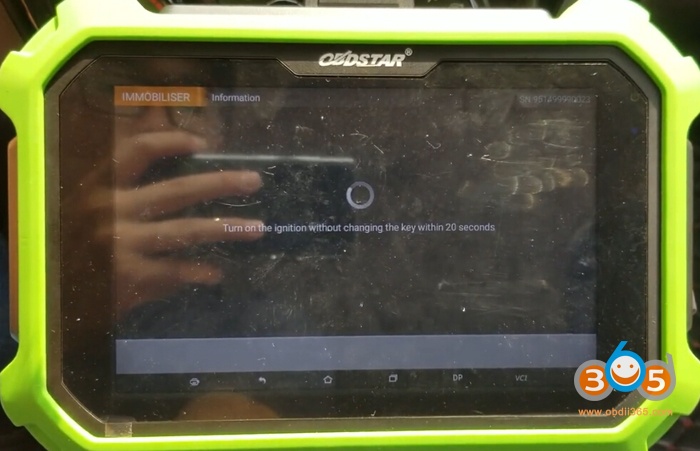

Turn on ignition without changing the key within 20s
Switch ignition off
Turn on ignition

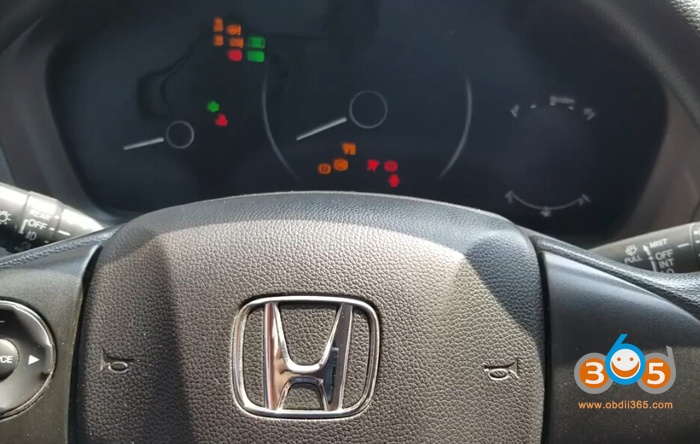

Check if the immobilizer indicator goes off. If yes, press Enter to continue
Turn off ignition

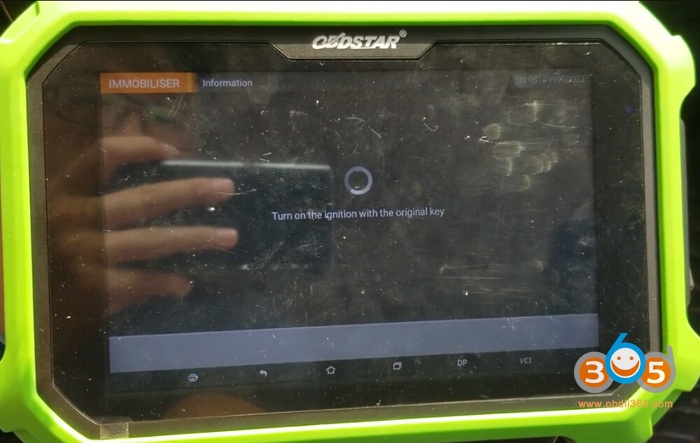

Turn on ignition with original key

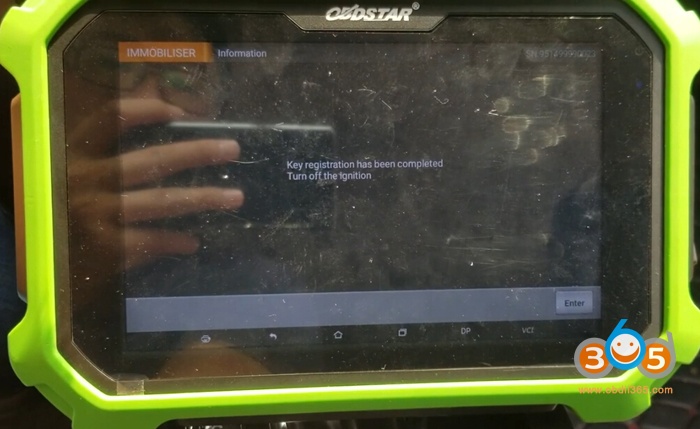

Key registration completed. Turn off ignition

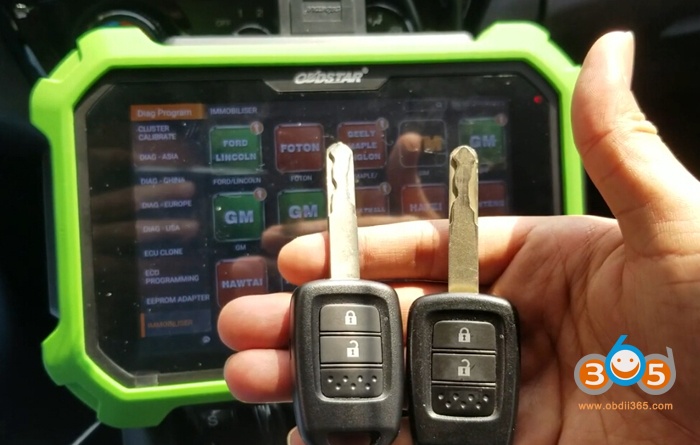

Test all keys and start engine.
Done.
