How to Read and Replace Benz W169 EIS with CG Pro?

Model: Mercedes Benz B200

Chassis: W169

Year: 2010

Module: EIS

Number: 1699051500

Chip: 9S12DT128-1L59W

Device to read and replace: CG Pro 9S12 Programmer

Procedure:


			How to Read and Replace Benz W169 EIS with CG Pro?

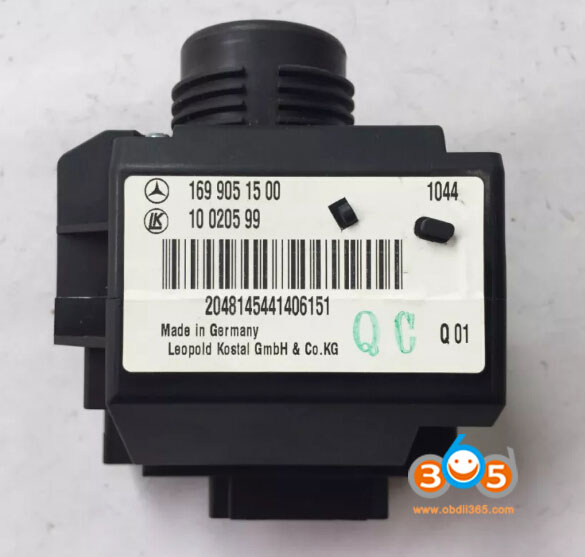

Check EIS number


			How to Read and Replace Benz W169 EIS with CG Pro?

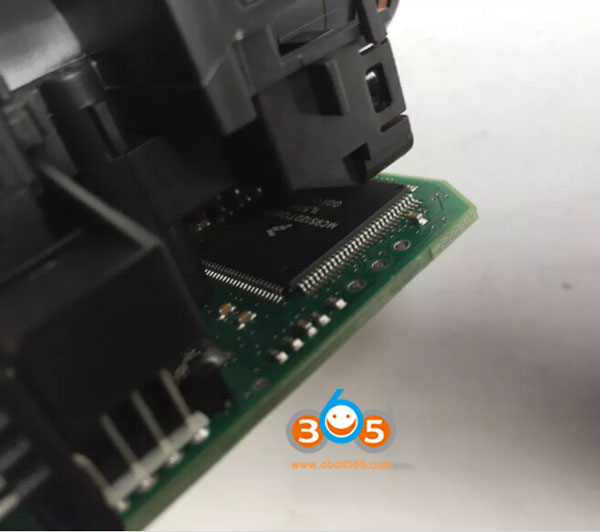

Open the EIS


			How to Read and Replace Benz W169 EIS with CG Pro?

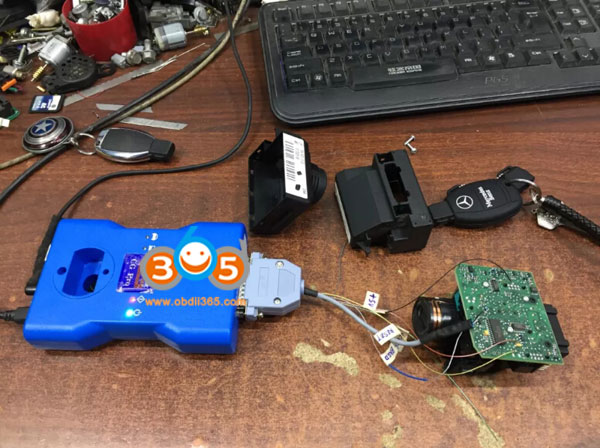

Open CG-Pro software, check the wiring connection. Connect CG Pro with EIS via DB25 connector


			How to Read and Replace Benz W169 EIS with CG Pro?

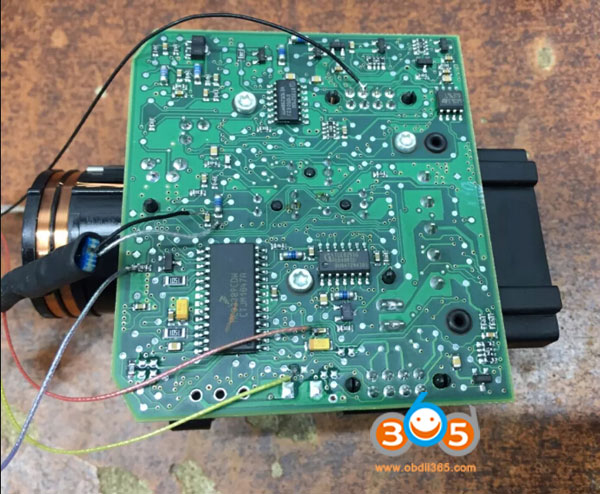

Make a connection.

Connect CGPro with computer


			How to Read and Replace Benz W169 EIS with CG Pro?

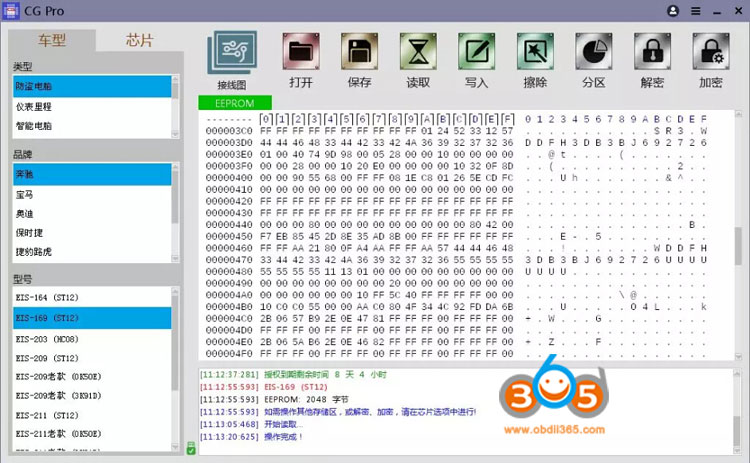

Select Immobilizer->Benz->EIS-169 ST12

Read and save data


			How to Read and Replace Benz W169 EIS with CG Pro?

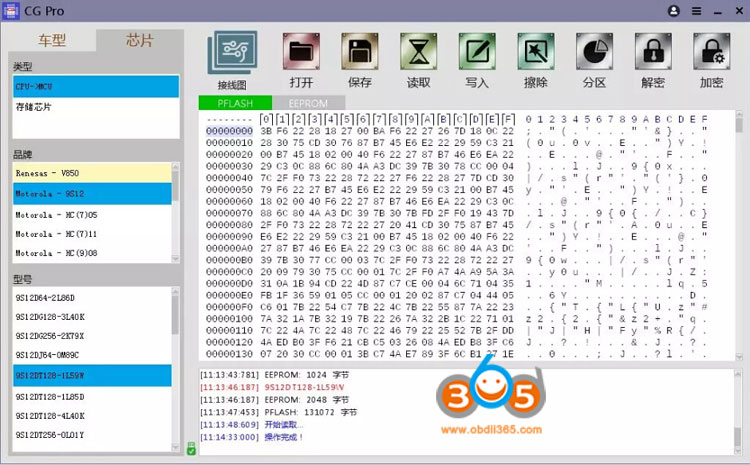

Select Chip->Motorola 9S12->9S12D7128-1L59W

Read and save data
