Report:  A friend was trying to Read BCM porsche 2015 1N35H.
MDP can Read but can not Write

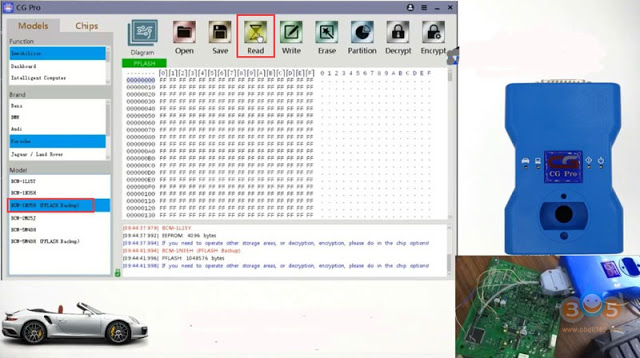

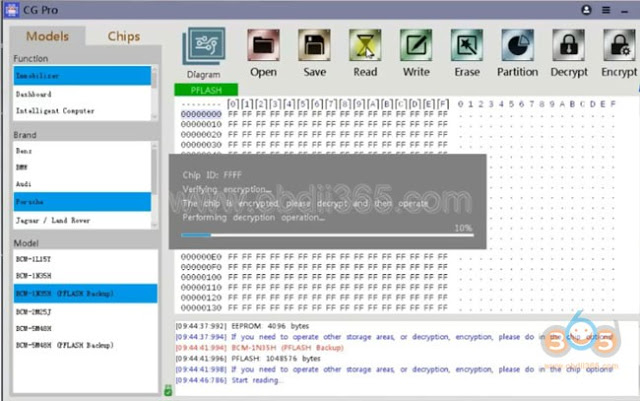

Xhorse VVDI Prog can not crack the MCU Finnaly he decided to test the CG Pro 9s12 programmer and here is the result. Step 1: Backup PFLASH Connect CG Pro with BCM follow the wiring diagram First need to read PFLASH and back it up In CGPro software, select Immobilizer->Porshce ->BCM-1N35H (PFLASH Backup), press READ


			How to Read Porsche 1N35H BCM and Write Key with CG Pro 9S12?


			How to Read Porsche 1N35H BCM and Write Key with CG Pro 9S12?


			How to Read Porsche 1N35H BCM and Write Key with CG Pro 9S12?

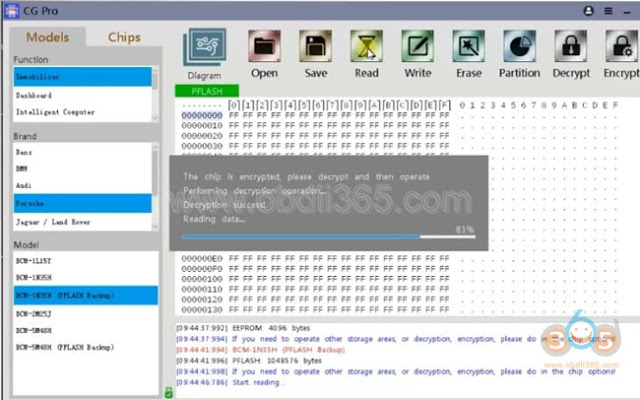

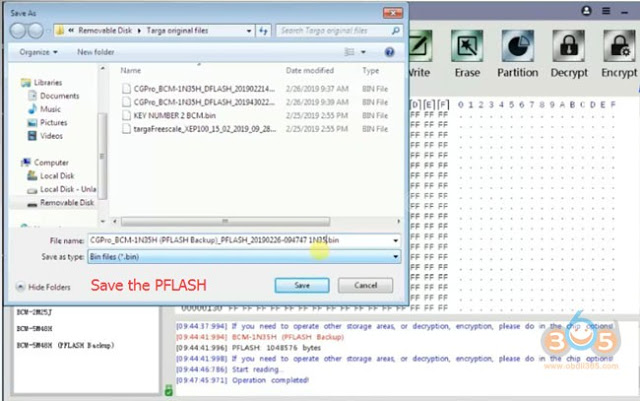

Read PFLASH success, save data


			How to Read Porsche 1N35H BCM and Write Key with CG Pro 9S12?

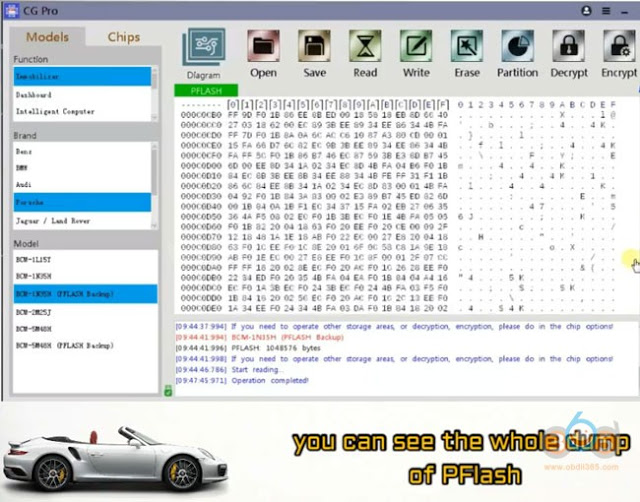

You can see the whole dump of PFLASH


			How to Read Porsche 1N35H BCM and Write Key with CG Pro 9S12?

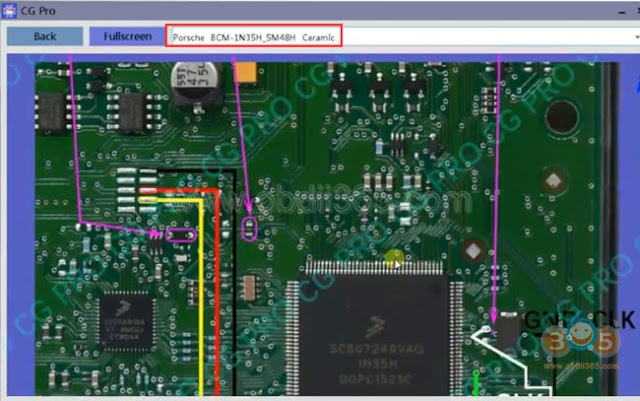

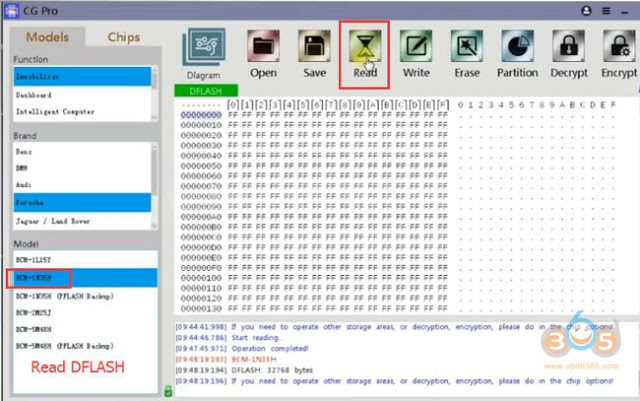

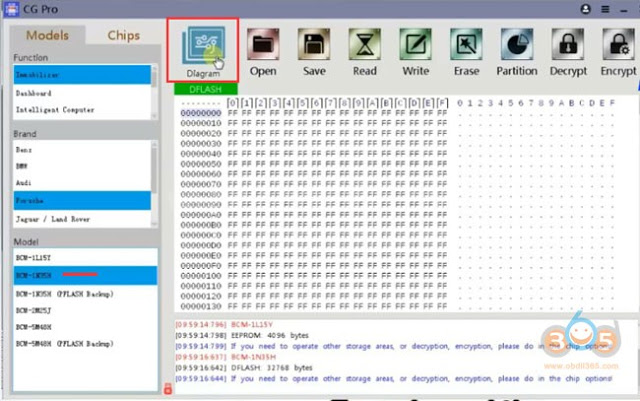

Step 2: Read DFLASH Now we will read the DFLASH where other devices failed Select Porsche->BCM-1N35H, check wiring diagram and connect


			How to Read Porsche 1N35H BCM and Write Key with CG Pro 9S12?


			How to Read Porsche 1N35H BCM and Write Key with CG Pro 9S12?

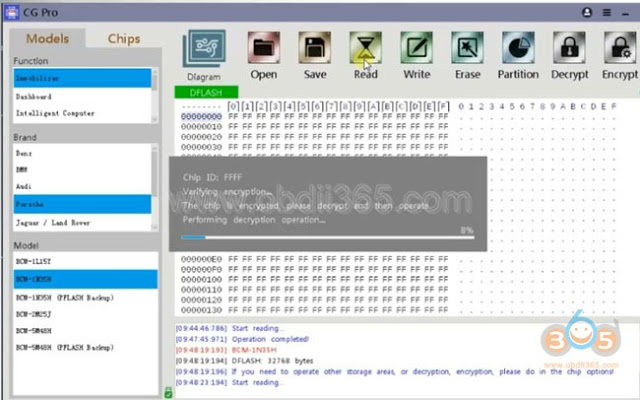

press READ


			How to Read Porsche 1N35H BCM and Write Key with CG Pro 9S12?


			How to Read Porsche 1N35H BCM and Write Key with CG Pro 9S12?


			How to Read Porsche 1N35H BCM and Write Key with CG Pro 9S12?

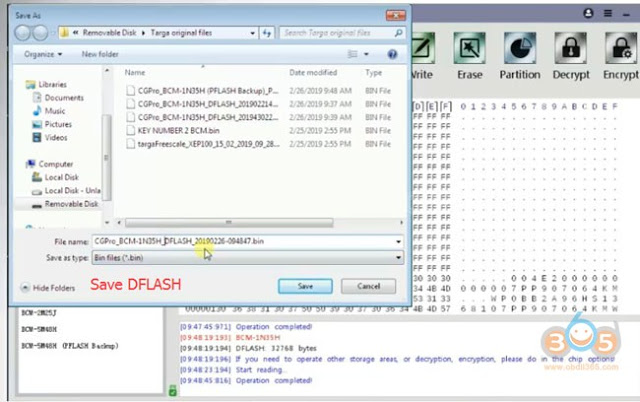

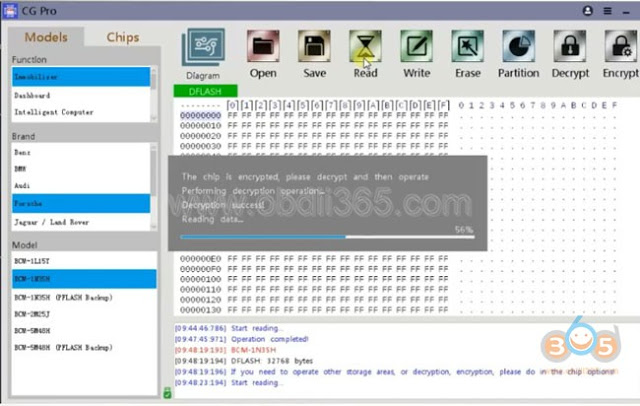

Read DFLASH success, save data for key adding


			How to Read Porsche 1N35H BCM and Write Key with CG Pro 9S12?

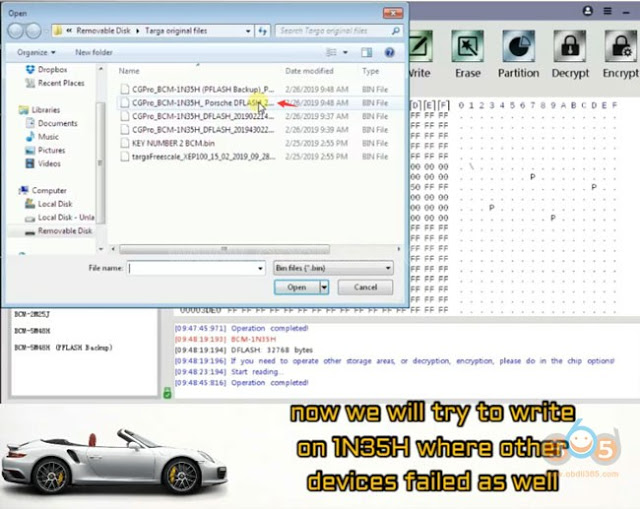

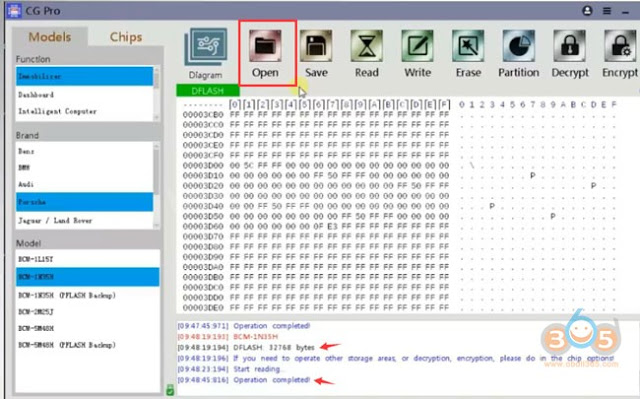

Step 3: Write DFLASH Now we try to write on 1N35H where other devices failed either Open DFLASH just saved


			How to Read Porsche 1N35H BCM and Write Key with CG Pro 9S12?


			How to Read Porsche 1N35H BCM and Write Key with CG Pro 9S12?

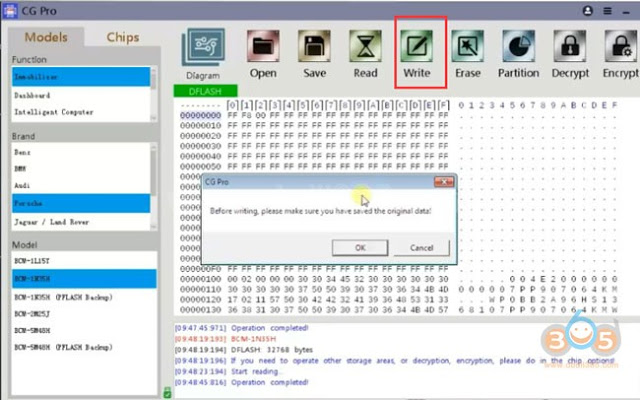

Press WRITE


			How to Read Porsche 1N35H BCM and Write Key with CG Pro 9S12?


			How to Read Porsche 1N35H BCM and Write Key with CG Pro 9S12?

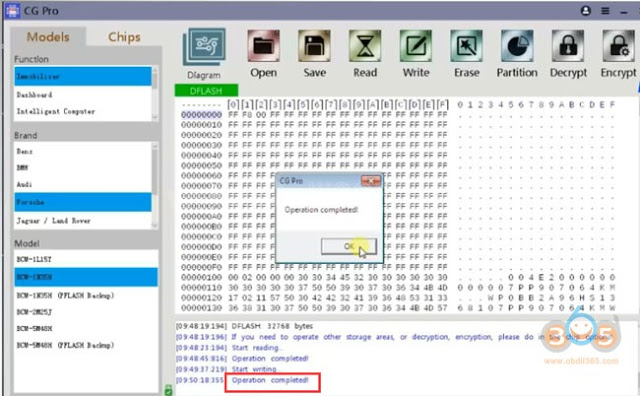

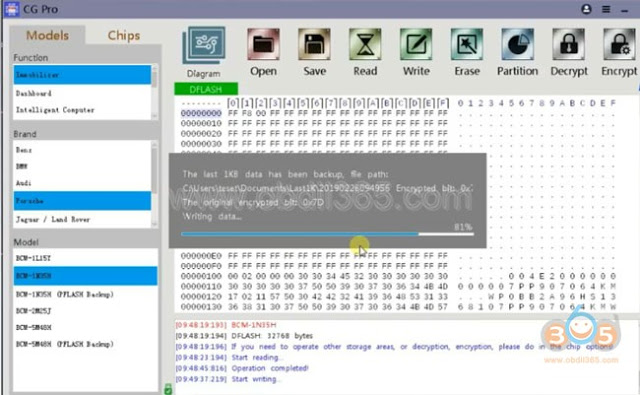

Writing data completed


			How to Read Porsche 1N35H BCM and Write Key with CG Pro 9S12?

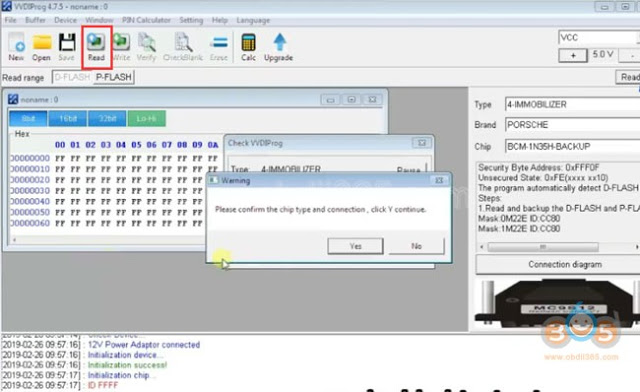

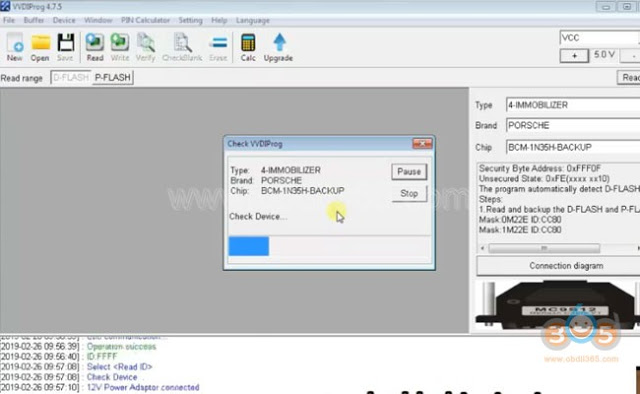

Step 4: Test if other devices can decryt this MCU For example with Xhorse VVDI Prog In VVDIProg software, read DFLASH


			How to Read Porsche 1N35H BCM and Write Key with CG Pro 9S12?


			How to Read Porsche 1N35H BCM and Write Key with CG Pro 9S12?


			How to Read Porsche 1N35H BCM and Write Key with CG Pro 9S12?

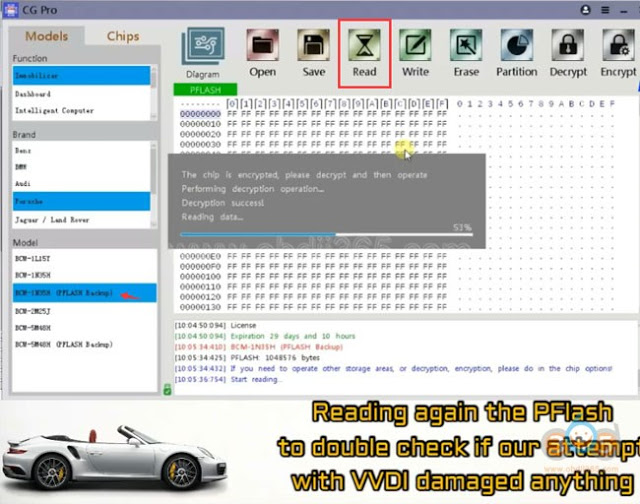

Chip crack failure. VVDI cannot decryt this MCU. Step 5: Read DFLASH & PFLASH again Back again to CG pro Read DFLASH again and make a key Read PFLASH again to double check if our attempt with vvdi damaged anything


			How to Read Porsche 1N35H BCM and Write Key with CG Pro 9S12?

Data is fine, not damaged.


			How to Read Porsche 1N35H BCM and Write Key with CG Pro 9S12?

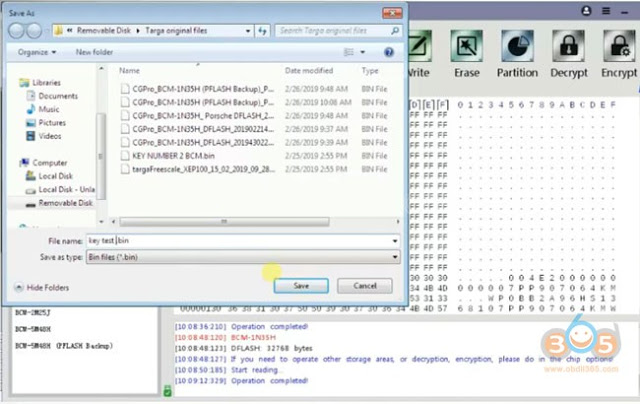

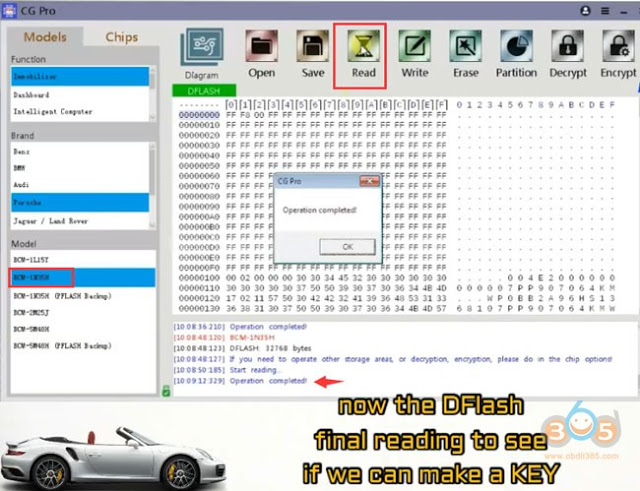

Now the DFLASH final reading to see if we can make a key. This time save DFLASH data, i.e key test.bin


			How to Read Porsche 1N35H BCM and Write Key with CG Pro 9S12?

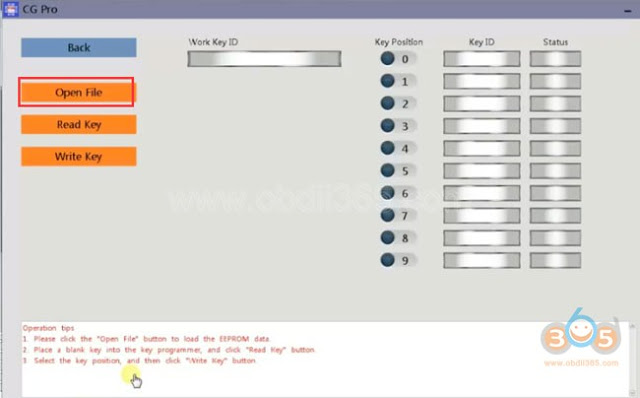

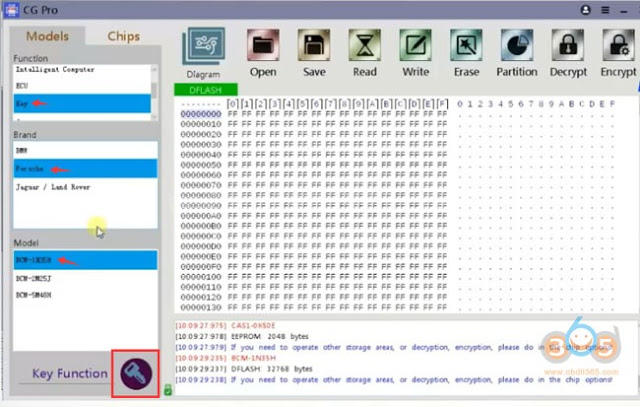

Step 6: Write key Go to CGPro Key making->Porsche->BCM-1N35H, open Key Function


			How to Read Porsche 1N35H BCM and Write Key with CG Pro 9S12?


			How to Read Porsche 1N35H BCM and Write Key with CG Pro 9S12?

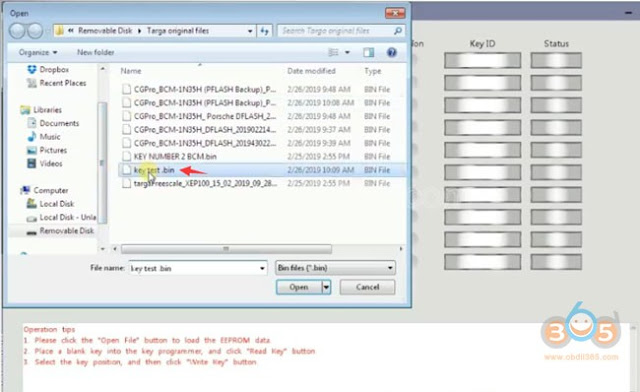

Open DFlash finally saved


			How to Read Porsche 1N35H BCM and Write Key with CG Pro 9S12?

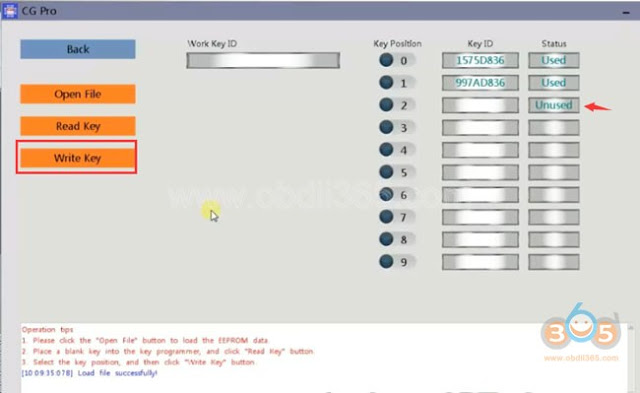

You can see the keys and program new key


			How to Read Porsche 1N35H BCM and Write Key with CG Pro 9S12?

Select Write key and follow CG-Pro prompts until succeed. The last steps are easy. http://www.obdii365.com/producttags/cg-pro.html http://www.obdii365.com/service/read-and-write-porsche-1n35h-bcm-dflash-pflash-with-cg-pro-109181.html
