Renew Chervolet Cruze 7952E Smart Key by OBDSTAR X300 DP PLUS

How-to:  Renew Chervolet Cruze smart key 7952E by OBDSTAR X300 DP PLUS (Key master DP Plus) tablet.

Chip Type: Chip 46

Smart key type:  7952E


			Renew Chervolet Cruze 7952E Smart Key  by OBDSTAR X300 DP PLUS

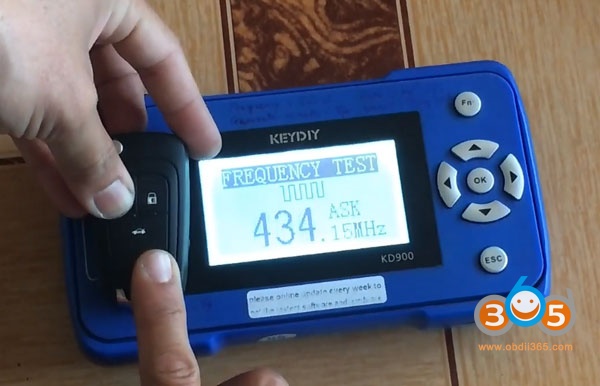

Frequency:   434MHz


			Renew Chervolet Cruze 7952E Smart Key  by OBDSTAR X300 DP PLUS


			Renew Chervolet Cruze 7952E Smart Key  by OBDSTAR X300 DP PLUS

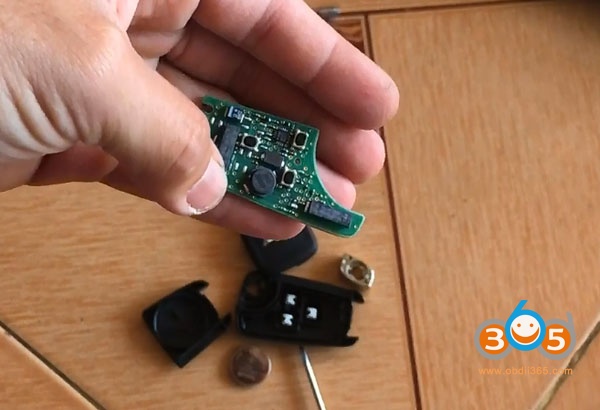

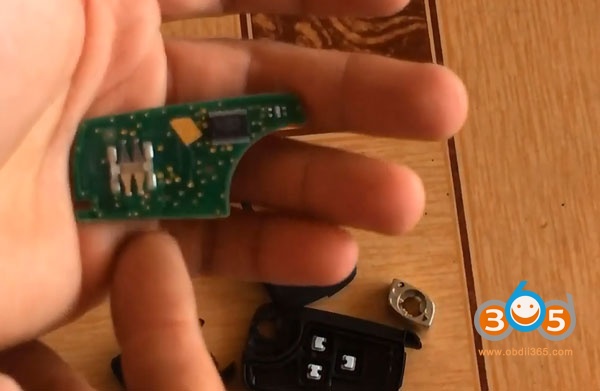

Disassemble the remote key

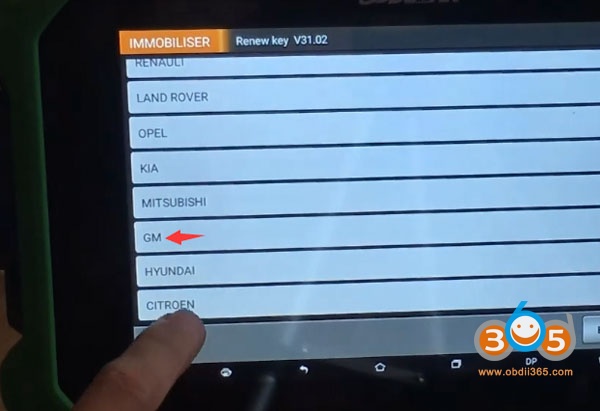

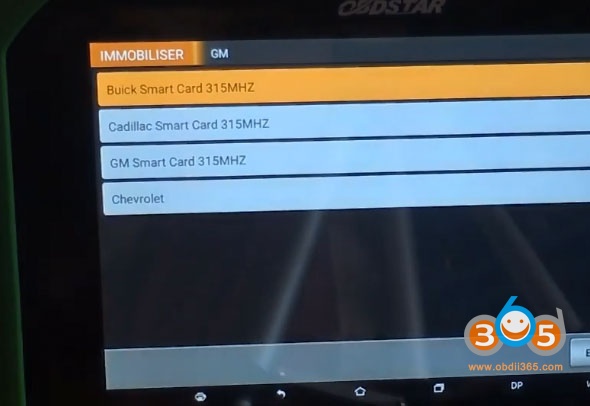

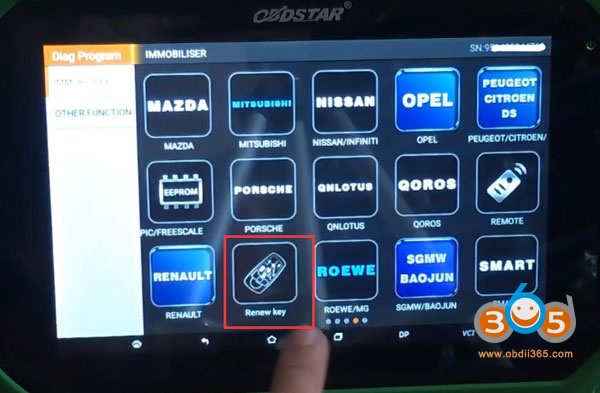

In X300 DP PLUS, select Diag Program-> Renew Key->GM->Buick Smart Key 315MHz->

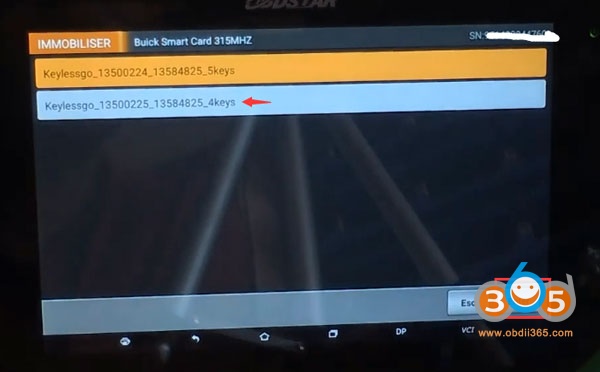

Keylessgo_13500225_1358425_4keys


			Renew Chervolet Cruze 7952E Smart Key  by OBDSTAR X300 DP PLUS


			Renew Chervolet Cruze 7952E Smart Key  by OBDSTAR X300 DP PLUS


			Renew Chervolet Cruze 7952E Smart Key  by OBDSTAR X300 DP PLUS


			Renew Chervolet Cruze 7952E Smart Key  by OBDSTAR X300 DP PLUS

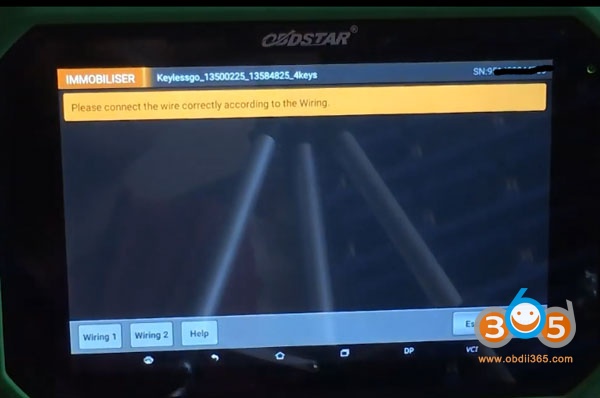

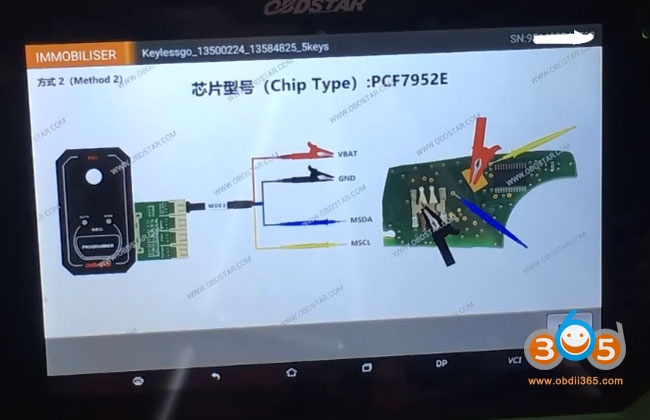

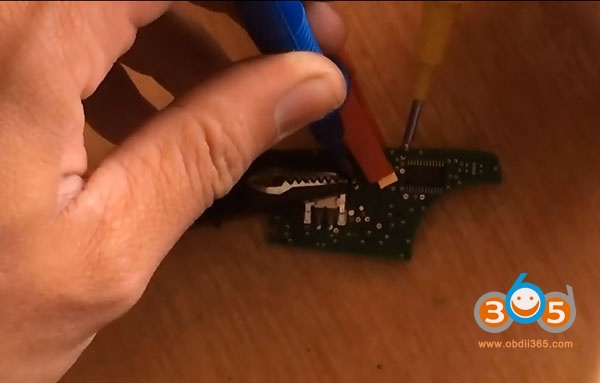

Then check the wiring connection


			Renew Chervolet Cruze 7952E Smart Key  by OBDSTAR X300 DP PLUS


			Renew Chervolet Cruze 7952E Smart Key  by OBDSTAR X300 DP PLUS

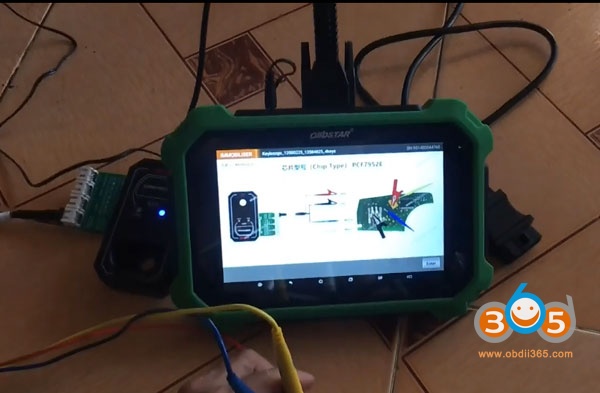

Connect test probe with OBDSTAR P001 adapter and X300 DP PLUS


			Renew Chervolet Cruze 7952E Smart Key  by OBDSTAR X300 DP PLUS


			Renew Chervolet Cruze 7952E Smart Key  by OBDSTAR X300 DP PLUS

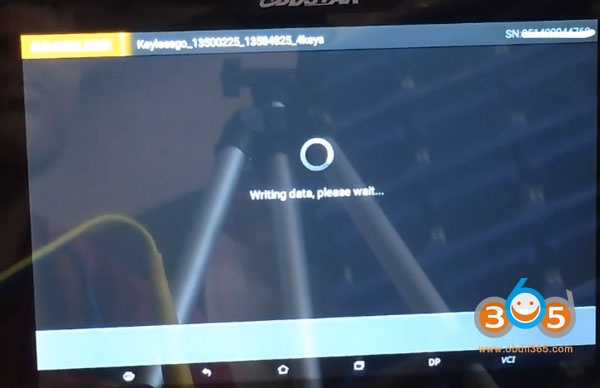

Press Enter to write data


			Renew Chervolet Cruze 7952E Smart Key  by OBDSTAR X300 DP PLUS

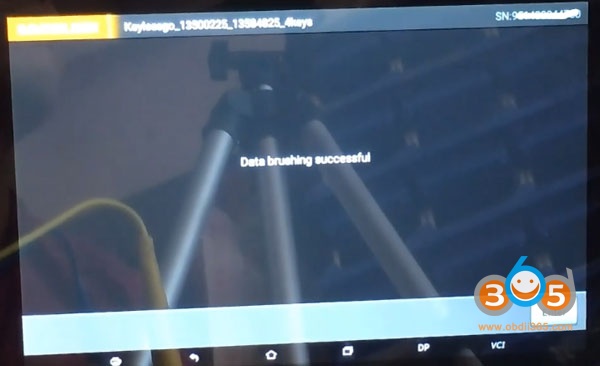

Renew key success


			Renew Chervolet Cruze 7952E Smart Key  by OBDSTAR X300 DP PLUS
