Look here: How to quickly read/write KVM data for Jaguar and Land Rover with security With ACDP mini via ICP: safe & time-saving
- Easy and time-saving:
professional ports instead of traditional desoldering make good success
- Never damage immo
No need disassembling and desoldering No need disassembling crystal oscillator and capacitor Never damage immo – almost no risk
- Safe
It is safe and reliable to read and write data, with pin intelligent detection

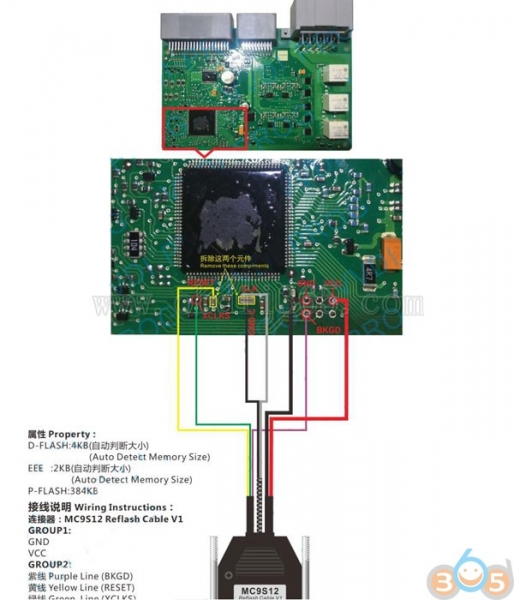

With other devices: difficult & high risk Other tools usually use the traditional desoldering method to read and write KVM data from Jaguar and Land Rover. The crystal oscillator and capacitor need to be removed. And it is very difficult to disassemble the crystal oscillator and it’s easily get damaged. It may destroy the vehicle, and all can be done at a high risk. That is,
- Time-consuming and difficult:
need desoldering and disassembling)
- High risk:
easy to damage the car when disassembling and lose data because of bad desoldering manually

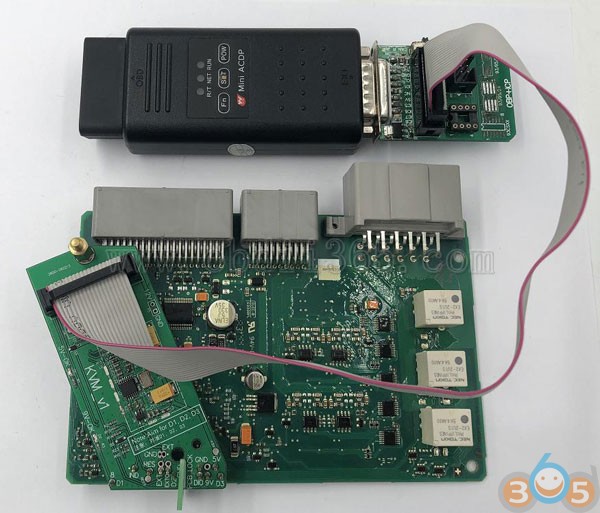

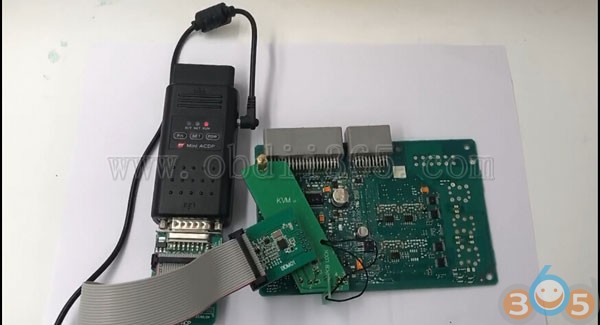

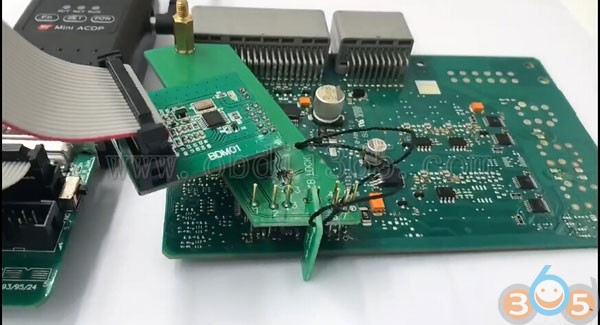

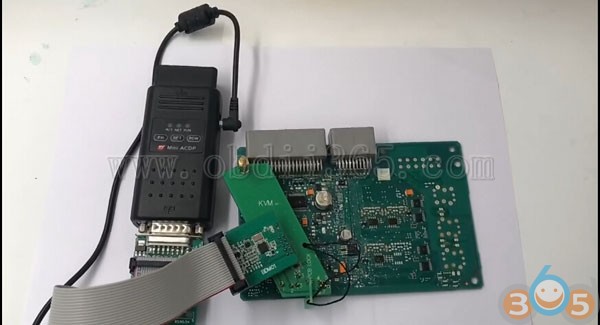

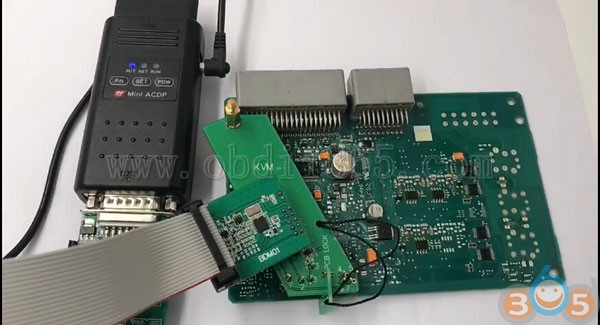

Conclusion: Yanhua ACDP mini is better for JLR KVM data read/write. It saves time and helps security. You don’t need take high risk like other tools. ACDP mini for Jaguar and Land Rover: http://www.obdii365.com/wholesale/yanhua-bmw-acdp-key-programmer.html KVM adapters for data read/write: http://www.obdii365.com/wholesale/yanhua-mini-acdp-jaguar-land-rover-kvm-module.html Here is the test with images: The connection: Yanhua Mini ACDP and adapters (incl. KVM module)

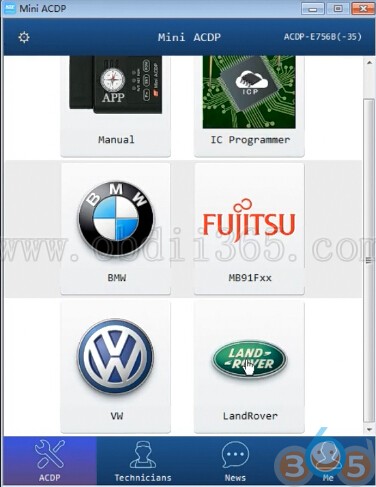

Mini ACDP Land Rover

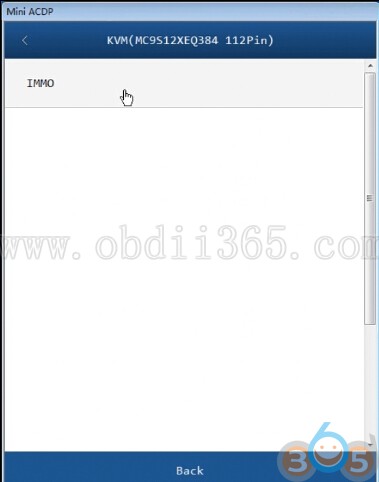

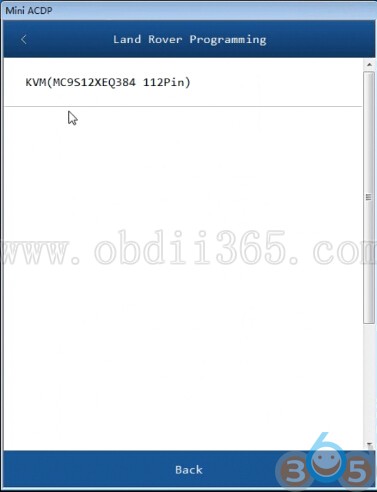

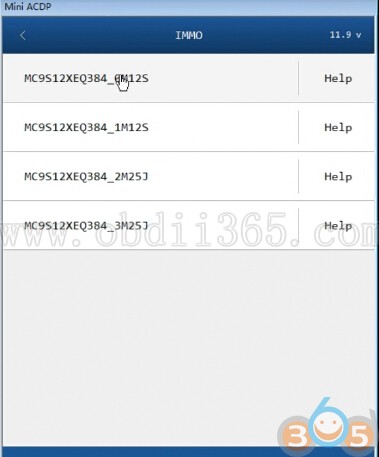

KVM (mc9s12xeq384 112 pin) – IMMO – MC9S12XEQ384_3M25J
Add key – auto mode

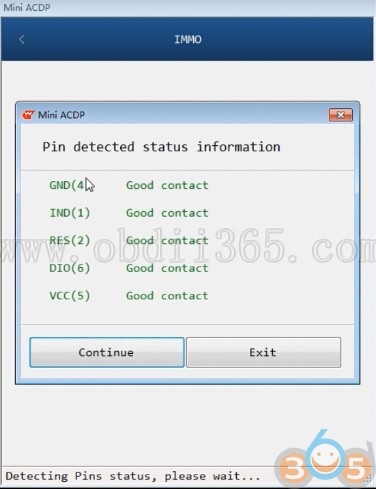

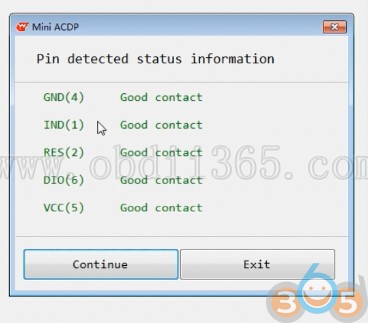

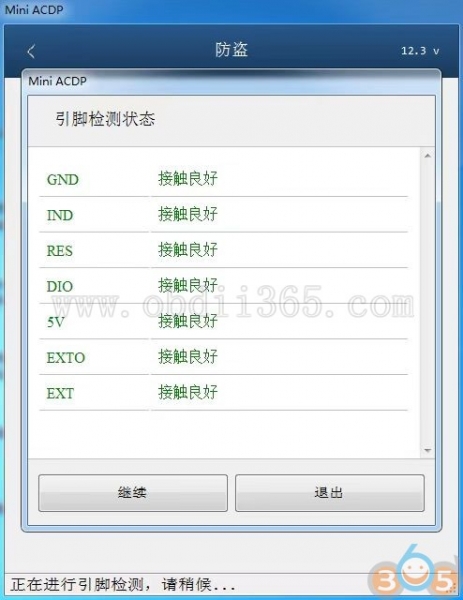

Note: please prepare the OBP+ICP adapter, BDM adapter, KVM module and blank key Precautions: ensure the well-connected for ACDP device, OBP+ICP adapter, BDM adapter and KVM module Detecting pins status, please wait… Pin detected status information

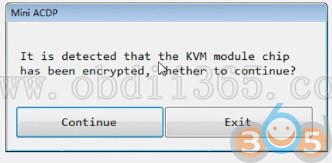

Configuring adapter, please wait… It is detected that the KVM module chip has been encrypted

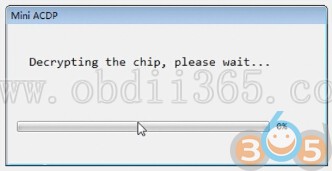

Configuring adapter, please wait… Decrypting the chip, please wait…

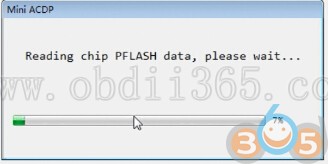

Reading chip FLASH dat, please wait…

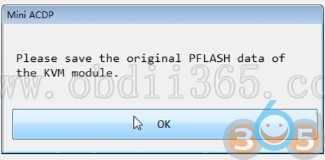

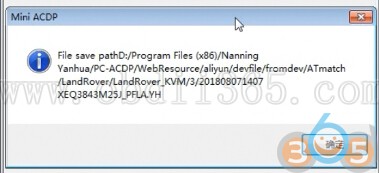

Please save the original PLASH data of KVM module

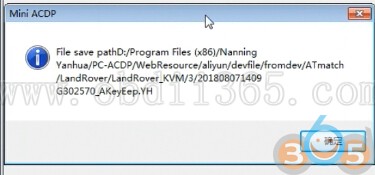

Uploading data… File save path

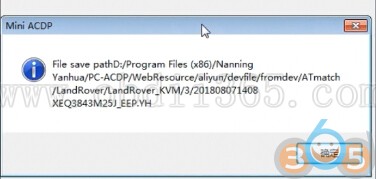

Reading chip EEPROM/PLASH data, please wait… Save the original EEPROM data of KVM module File save path

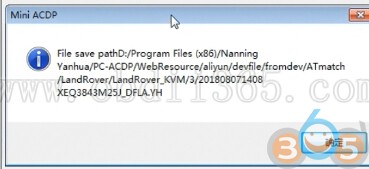

Save the original DFLASH data of the KVM module File save path

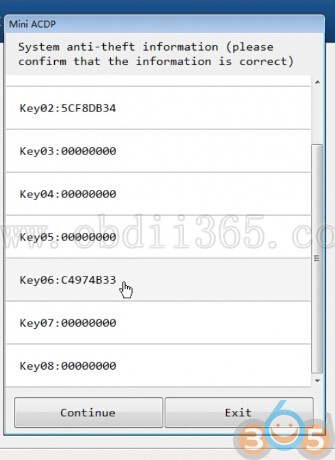

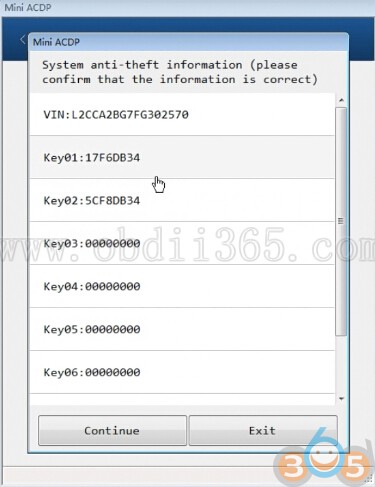

System anti-theft information (please confirm that information is correct)
Note: to maintain the ACDP device power-on state, first disconnect the OBP+ICP adapter from the ACDP device

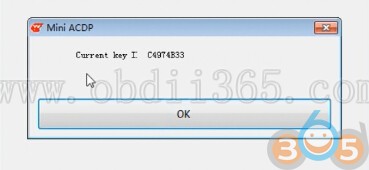

Read key information, please wait… Yanhua Mini ACDP reads out Key ID

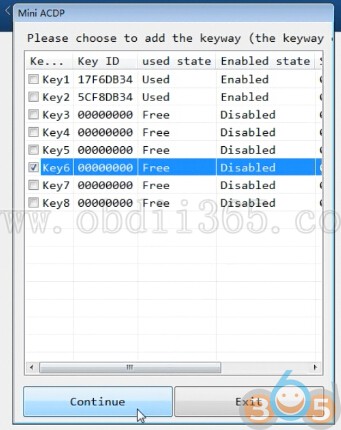

Reading key information again Choose to add the keyway

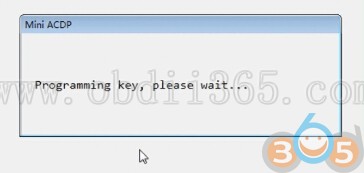

Reading key information Programming key…

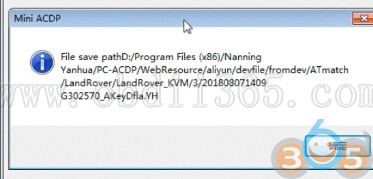

Save the EEPROM data of the KVM module after adding the key File save path
Save the DFLASH data of the KVM module after adding the key File save path

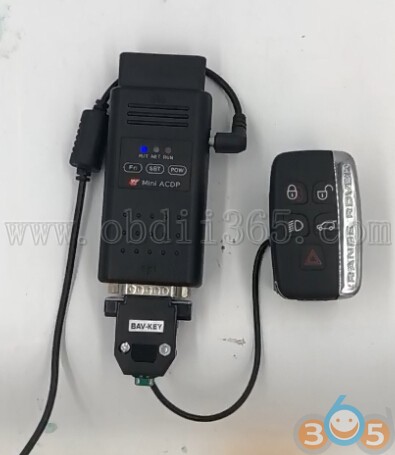

Note: Keep the ACDP device powered on First disconnect the BAV-KEY adapter from the ACDP device
Detecting pins status… Pin detected status information
Configuring adapter… It is detected the KVM module chip has been encrypted System anti-theft information

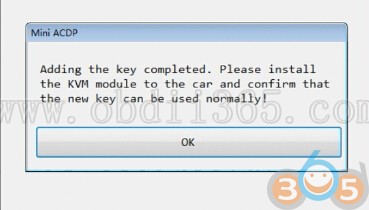

Configuring adapter… Decrypting the chip… Mini ACDP managed to program a new key! Please install the KVM module to the car and confirm that the new key can be used normally
Done! www.obdii365.com http://blog.obdii365.com/2019/01/14/jlr-kvm-data-read-write-acdp-mini-wins-in-security-speed/
